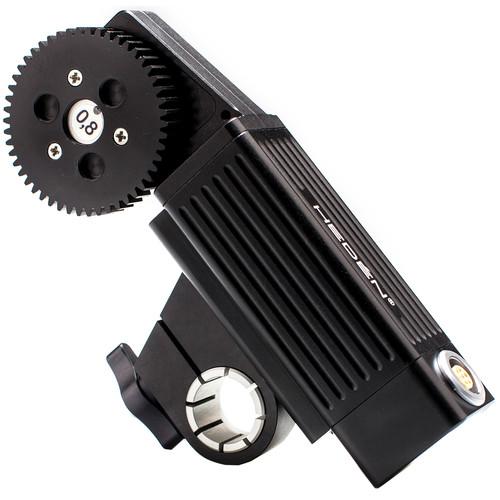

User Manual for HEDEN M26VE Motor Click to enlarge the picture
Contents of the user manual for the HEDEN M26VE Motor
- Product category: Wireless Lens Control Accessories HEDEN
- Brand: HEDEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HEDEN Wireless Lens Control Accessories
|
User manual for the HEDEN M26VE Motor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HEDEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HEDEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HEDEN product will considerably shorten its lifespan!
|
Product description The HEDEN M26VE Motor is a quiet, yet high-torque lens motor for driving focus, zoom, or iris rings on cinema or ENG lenses. The included 0.8 MOD gear interfaces with standard cine lenses or photo lenses with gear rings and can be attached on either side of the motor. The high torque of the motor can drive most lenses, regardless of mechanical stiffness due to cold weather or age. Secure the motor itself to your rig using the 19mm rod clamp, which includes a 15mm bushing for lightweight setups. This particular model of M26VE features 512 encoders and a 3.3k resistor for compatibility with HEDEN and Preston equipment. A 7-pin LEMO connection provides both power and control signals to the motor from the receiver or motor driver. UPC: 680196626101 In the Box HEDEN M26VE Motor (512 Encoder, 3.3k ID Resistor) Drive Gear for M26VE Motors (0.8 MOD) zcvyctzyzbxfubweyevffzbrfdbwzydfux Standard Motor Rod Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HEDEN M26VE Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHEDEN M26-110 Specs | Connector | 7-pin LEMO | | Torque | 1.8 Nm | | Dimensions | 1.3 x 1 x 4.6" / 3.3 x 2.6 x 11.7 cm | | Weight | 7.8 oz / 222 g (motor only) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 5.4 x 3.6 x 1.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
