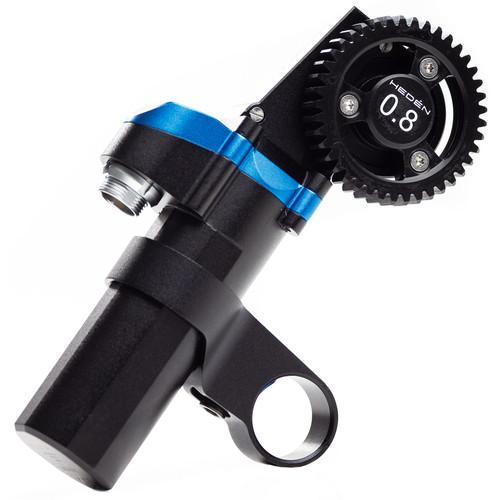

User Manual for HEDEN Motor LM30 256 Click to enlarge the picture
Contents of the user manual for the HEDEN Motor LM30 256
- Product category: Wireless Lens Control Accessories HEDEN
- Brand: HEDEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HEDEN Wireless Lens Control Accessories
|
User manual for the HEDEN Motor LM30 256 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HEDEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HEDEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HEDEN product will considerably shorten its lifespan!
|
Product description The HEDEN Motor LM30 256 is an ultra-compact, 15mm rod-mount lens motor designed for professional film, broadcast, and video production applications. It comes with a snap-on 0.8 gear module and supports interchangeable 0.4, 0.5, and 0.6 modules, sold separately. The gear module can be attached to either side of the gear housing. Powered via a LEMO 7-pin 0B connector, the LM30 also uses slim and lightweight cables, not included. It's an ideal choice for lens control on stabilizers and drones.
The LM30 is compatible with HEDEN YMER and CARAT controllers, the FREEFLY MoVI, and other F/I/Z systems with a matching power connection. It's developed in collaboration with Shotover, based on their G1 motor. It mounts in a vertical position on the side of the lens. - Key Features
-
- 15mm rod-mount lens control motor
- Interchangeable snap-on 0.8 gear module can be attached to either side
- LEMO 7-pin 0B connector (uses slim and lightweight cables)
- 0.6 Nm torque
In the Box HEDEN Motor LM30 256 0.8 Module Gear with Carrier for LM30 Motor rcrrybtdfuvacrbqsbbwbd Rod Mount for LM30 Motor 2.5mm Hex Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HEDEN Motor LM30 256 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHEDEN 10009 Specs | Mod | 0.8 | | Torque | 0.6 Nm | | Power Connector | LEMO 0B 7-Pin | | Mount Type | 15 mm Rod Mount (Bracket Included) | | Dimensions | Height:
1.4" / 3.6 cm (without Gear Housing)
2.16" / 5.5 cm (with Gear Housing)
Width:
0.83" / 2.1 cm
Length:
4" / 10.3 cm | | Weight | 3.4 oz / 95 g (with Rod Mount Bracket and 0.8 Gear Module) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
