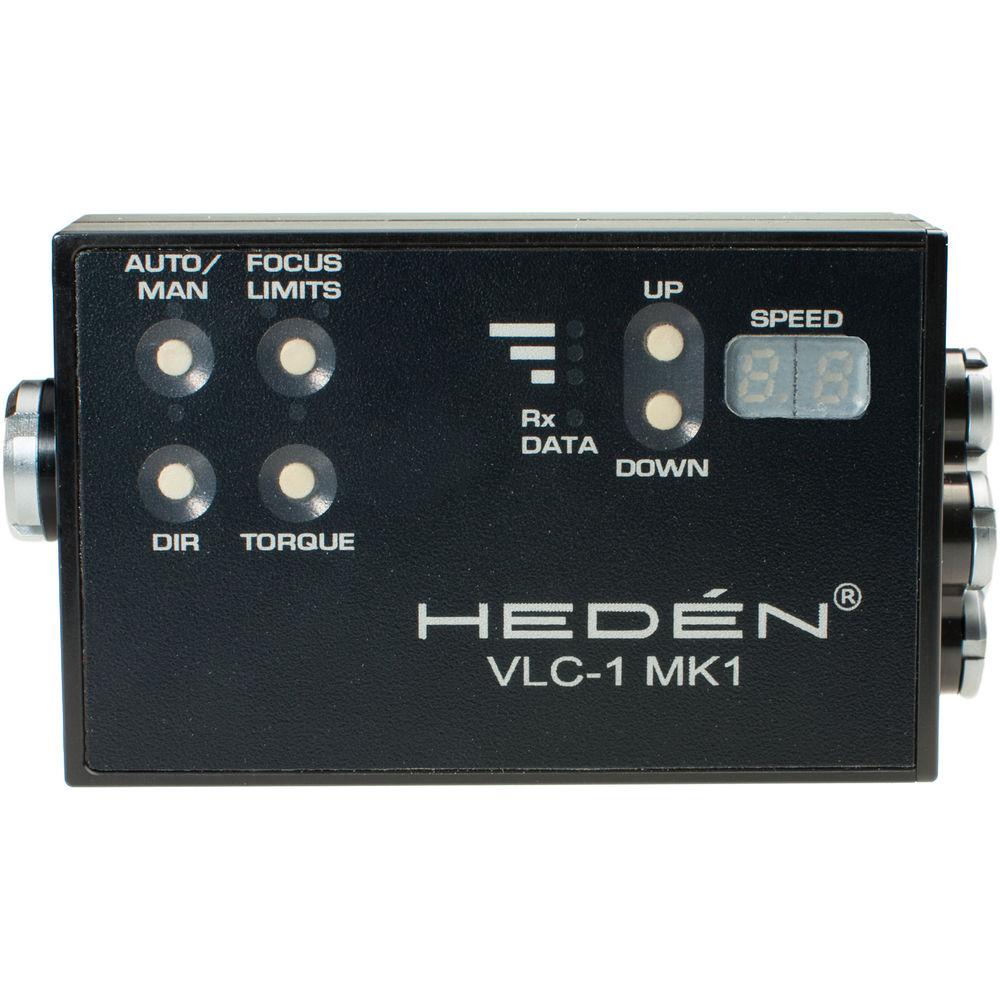

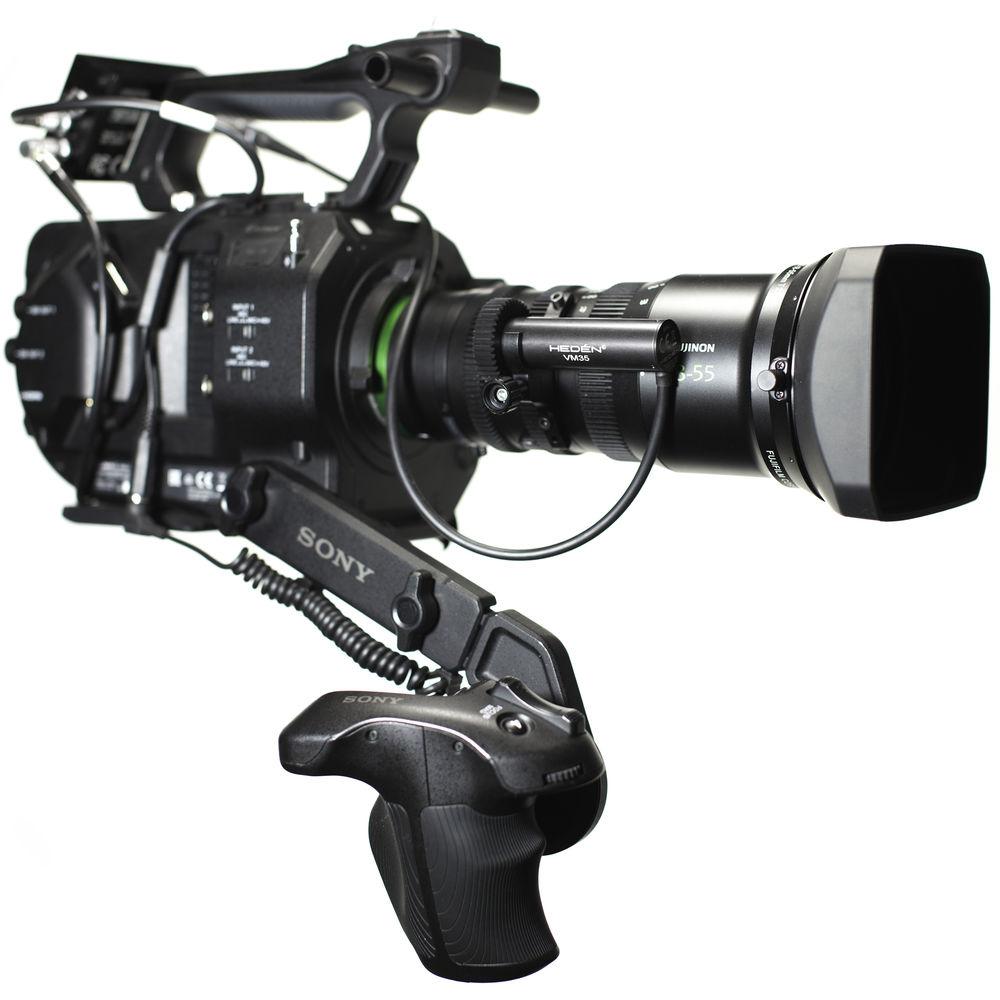

Product description The HEDEN VLC-1L Standalone Rod-Mount Kit is a complete rod-mount zoom control system for the Sony FS5, FS7, and FS7 II cameras. Featuring the VM35 Lens Motor and VLC-1L Mk1 LANC Controller, this kit allows you to control zoom using your Sony handgrip. - VLC-1L Mk1 LANC Controller Control your zoom lens motor with the Sony handgrip by connecting the HEDEN VLC-1L Mk1 LANC Controller. Using the LANC connection from the handgrip and the appropriate pass-through cable, the VLC-1 can relay signals from the zoom rocker to actuate an attached lens motor for seamless zoom control. Documentary shooters will be able to smoothly zoom to properly frame their shots without distracting the audience with shaky hand-driven zooming. Zoom ramping and speed can be adjusted to control the smoothness and overall speed of the zooming action.

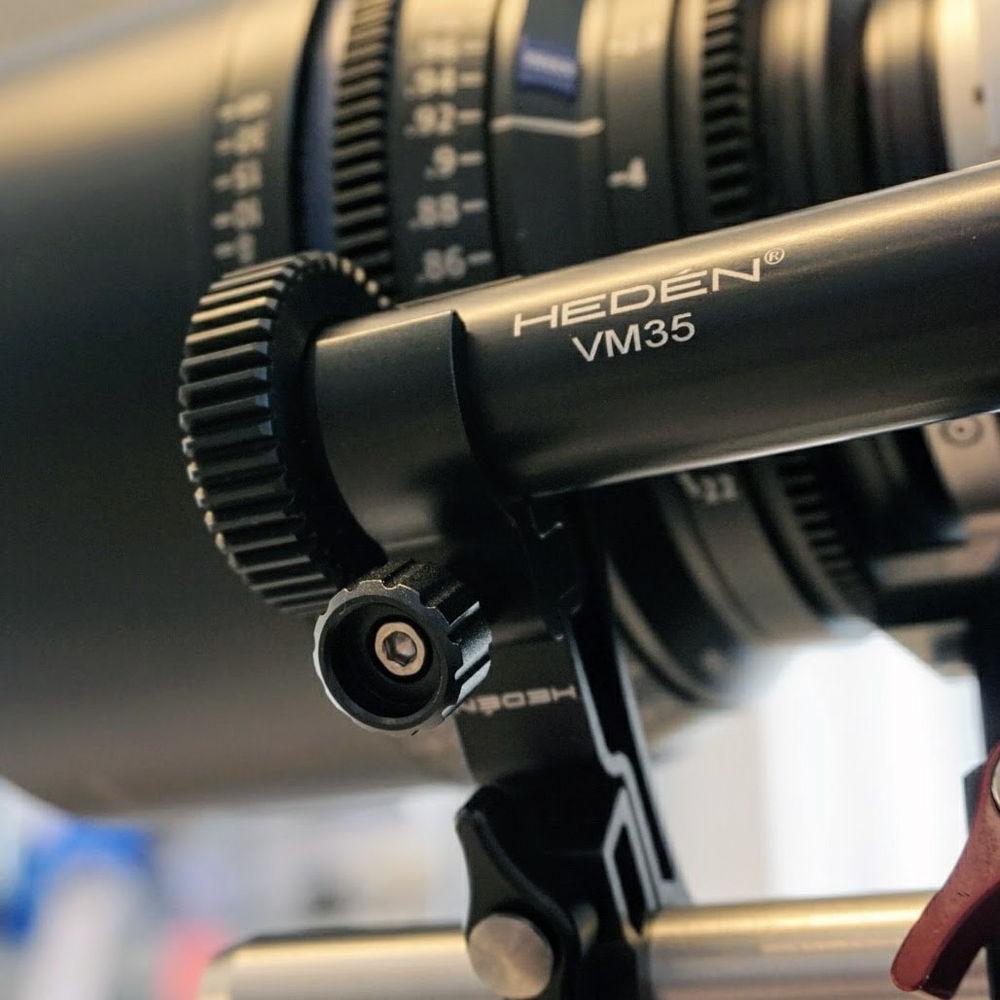

- VM35 Lens Motor The HEDEN VM35 Lens Motor is a small cylindrical motor for driving zoom or focus. Its form factor is compatible with separately available clips for securing the motor to your lens. When attached to the lens, the motor's body lies flat against it for an uncluttered look. The digital connection is made using the 7-pin LEMO-type interface, terminating the built-in cable.

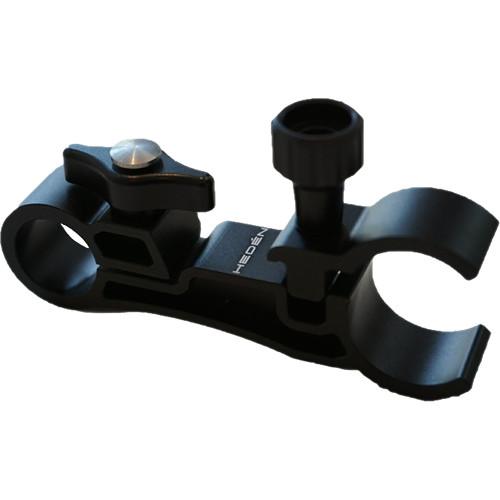

- 15mm Rod Mount for VM35 Lens Motor The HEDEN 15mm Rod Mount for VM35 Lens Motor is a lightweight single-rod mount bracket that allows you to attach the HEDEN VM35 motor to your camera rig. UPC: 680196626668
- D-Tap Power Cable for VLC MK1 The HEDEN D-Tap Power Cable for VLC MK1 powers the VLC MK1 controller unit from a D-Tap power source, such as an on-camera battery. UPC: 680196626835
- VLC MK1 Standalone Split Cable (14")

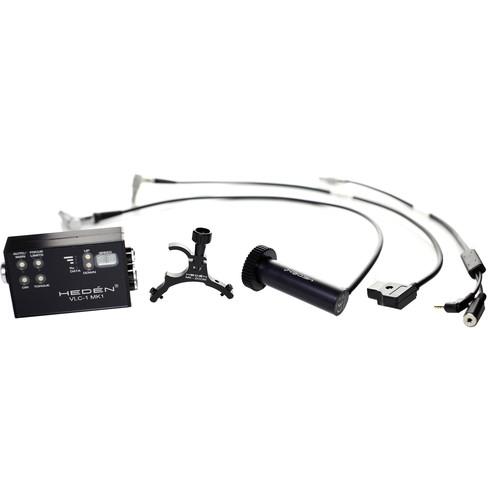

In the Box Bundle Items VLC-1L Mk1 LANC Controller VM35 Lens Motor 15mm Rod Mount for VM35 Lens Motor D-Tap Power Cable for VLC MK1 VLC MK1 Standalone Split Cable (14") aayrewyaceued
Also Includes - Dualloc Recloseable Fastener
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the HEDEN VLC-1L Standalone Rod-Mount Kit for Sony FS5, FS7, and FS7 II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - VLC-1L Mk1 LANC Controller
| Connections | Motor output, 7-pin LEMO-type
Power input, 2-pin LEMO-type
AUX/LANC input, 7-pin LEMO-type
Firmware, 4-pin LEMO-type | | Dimensions | 3.3 x 2.1 x 1" / 8.5 x 5.4 x 2.6 cm | | Weight | 5 oz / 140 g | - VM35 Lens Motor
| Connection | 7-pin LEMO-type | | Cable Length | 18.9" / 48 cm | | Diameter | 0.8" / 20 mm | | Length | 3.1" / 7.8 cm (including gear) | | Weight | 4.2 oz / 120 g (including gear) | - 15mm Rod Mount for VM35 Lens Motor
| Length | 3.2" / 8 cm | | Weight | 1.4 oz / 40 g | | | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 0.75" | - D-Tap Power Cable for VLC MK1
| Connector 1 | D-Tap | | Connector 2 | 2-pin LEMO-type | | Length | 20" / 40 cm | | | | Box Dimensions (LxWxH) | 4.45 x 3.7 x 0.7" | - VLC MK1 Standalone Split Cable (14")
