User Manual for Hedler LED 1000 Twin Fresnel 2-Light Kit Click to enlarge the picture
Contents of the user manual for the Hedler LED 1000 Twin Fresnel 2-Light
- Product category: LED Lights Hedler
- Brand: Hedler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hedler LED Lights
|
User manual for the Hedler LED 1000 Twin Fresnel 2-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hedler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hedler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hedler product will considerably shorten its lifespan!
|

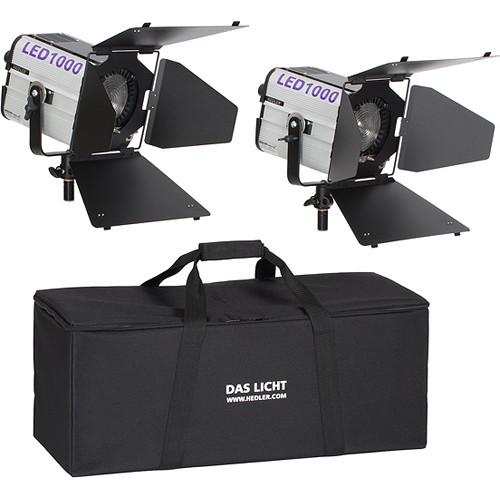

Product description The LED 1000 Twin Fresnel 2-Light Kit from Hedler packs a lot of power into a small, lightweight form factor. The kit comes with 2 LED 1000 Fresnels with daylight-balanced LEDs that draw just 185W yet output many times that in tungsten equivalent power. Ballasts are built into the lights to make them more compact. Each fixture dims from 5-100% and comes with a set of 4-way barndoors to control the light. It all fits in a padded kit carrying case. - Profilux LED1000 Daylight Fresnel The Profilux LED1000 Daylight Fresnel from Hedler is a compact daylight-balanced fixture with a built-in electronic ballast that's suitable for video or still photography. The LED1000's efficient LED lamp consumes 185W of power yet outputs many times that number in equivalent tungsten light and with a high CRI of 95. The fixture is fully dimmable too. The housing has a QuickFit adapter that allows easy use of all reflectors, softboxes plus a 4-way barndoor set to modify the light, while the fixture's extensive 20 to 60° spot-to-flood range gives the user a variety of light quality choices. A number of safety measures have been incorporated such as integrated overheating protection and an LED safety switch-off. The Profilux LED1000 has a 5/8" receiver for stand mounting and a 110-240 VAC power supply for worldwide use.
- Benefits
-
- LED soft starting
- Display with light output power indicator
- Fully dimmable light output with high light output power repeatability
- Service indicator and status LEDs
- Completely integrated electronic ballast
- Cooling control automatically and manually
- Recalibration option
- Automatic mains voltage recognition
- Multi-voltage 110 - 240 VAC, 50/60Hz
- Integrated overheating protection
- Integrated LED safety switch-off
- Integrated operation hour counter
- 4-Leaf Barndoor 360 The 4-Leaf Barndoor 360° from Hedler is a light modifier that allows you to illuminate areas of your choosing, or keep light from areas that you don't want illuminated. One or more of the four leaves can swing into the beam spread to add directional control and shape the output. The reflector is compatible with all Hedler lights except the C-Lights; which need a Speedring C for use.
In the Box Bundle Items 2 x Profilux LED1000 Daylight Fresnel auycbbdycatzvdzxwzu 2 x 4-Leaf Barndoor 360
Also Includes - Kit Carrying Case
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hedler LED 1000 Twin Fresnel 2-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Profilux LED1000 Daylight Fresnel
| | | Beam Angle | 20 to 60° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | Fan/Passive Combo | | Dimming | Yes, 5 to 100% | | Housing Material | Aluminum | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 9.8 x 6.5 x 7.0" / 250.0 x 165.0 x 180.0 mm | | Fixture Weight | 7.3 lb / 3.31 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 185 W | | | | IP Rating | IP20 | | Operating Temperature | 5 to 104°F / -15 to 40°C | - 4-Leaf Barndoor 360
| Construction | Metal | | Dimensions | 7.87 x 7.87" (200 x 200 mm) | | Weight | 1.54 lb (700 g) |
