User Manual for Hedler Profilux LED1000x 2-Light Soft Kit Click to enlarge the picture
Contents of the user manual for the Hedler Profilux LED1000x 2-Light Soft Kit
- Product category: LED Lights Hedler
- Brand: Hedler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hedler LED Lights
|
User manual for the Hedler Profilux LED1000x 2-Light Soft Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hedler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hedler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hedler product will considerably shorten its lifespan!
|

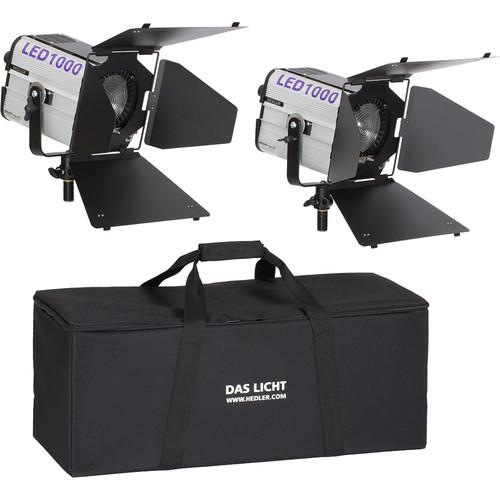

Product description Hedler has put together the Profilux LED1000x 2-Light Soft Kit for image makers who need to take studio-quality lighting on the road. The kit contains two 5600K daylight-balanced Profilux LED1000x flood fixtures with 110-240 VAC power supplies and a high CRI rating of 95. Each light comes with an air-cushioned 7.75' light stand, and two MaxiSoft 20 x 20" softboxes are provided for a pleasing quality of light. It all fits in the included 35.8 x 8.7 x 15.7" Light Case XL. - Profilux LED1000x Daylight Flood The Profilux LED1000x Daylight Flood from Hedler is a compact daylight-balanced fixture with a built-in electronic ballast that's suitable for video or still photography. The LED1000x's efficient LED lamp consumes 185W of power yet outputs many times that number in equivalent tungsten light and with a high CRI of 95. The fixture is fully dimmable too. The housing has a QuickFit adapter that allows easy use of all reflectors, softboxes plus a 4-way barndoor set to modify the light. A number of safety measures have been incorporated such as integrated overheating protection and an LED safety switch-off. The Profilux LED1000x has a 5/8" receiver for stand mounting and a 110-240 VAC power supply for worldwide use.
- Benefits
-
- LED soft starting
- Display with light output power indicator
- Fully dimmable light output with high light output power repeatability
- Service indicator and status LEDs
- Completely integrated electronic ballast
- Cooling control automatically and manually
- Recalibration option
- Automatic mains voltage recognition
- Multi-voltage 110 - 240 VAC, 50/60Hz
- Integrated overheating protection
- Integrated LED safety switch-off
- Integrated operation hour counter
- MaxiSoft Softbox (20 x 20") The 20 x 20" MaxiSoft Softbox from Hedler is an ideal choice for small products, hairlight, fill light or portraiture. The softbox rotates 360 degrees, accepts optional grids and is useable on Hedler lights up to 1250W. C-Lights require Speedring C for use.
In the Box Bundle Items 2 x Profilux LED1000x Daylight Flood vvdfufuvuuwrxwqxfwucsdfwdrswwwsxyw 2 x MaxiSoft Softbox (20 x 20")
Also Includes - 2 x Air-Cushioned Light Stands (7.75')
- Light Case XL
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hedler Profilux LED1000x 2-Light Soft Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Profilux LED1000x Daylight Flood
| | | Beam Angle | 75° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | Fan/Passive Combo | | Dimming | Yes, 5 to 100% | | Housing Material | Aluminum | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 9.8 x 6.5 x 7.0" / 250.0 x 165.0 x 180.0 mm | | Fixture Weight | 7.0 lb / 3.18 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 185 W | | | | IP Rating | IP20 | | Operating Temperature | 5 to 104°F / -15 to 40°C | | | | Box Dimensions (LxWxH) | 13.9 x 10.4 x 8.4" | - MaxiSoft Softbox (20 x 20")
| Size | 19.7 x 19.7 x 16.6" (50 x 50 x 42 cm) | | Shape | Square | | Compatibility | Hedler lights up to 1250 W | | Removable Front Face | Not specified by manufacturer | | Removable Interior Baffle | Not specified by manufacturer | | Accepts Grids | Yes | | Requires Speed Ring | No | | Weight | 2.6 lb (1.2 kg) |
