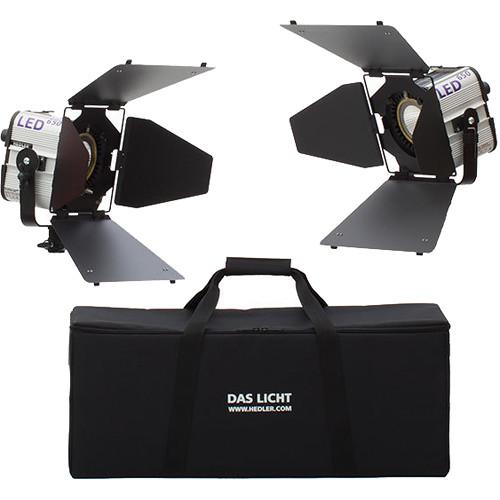

User Manual for Hedler Profilux LED650 Daylight 2-Light Video Kit with Bag

• Product category: LED Lights Hedler
• Brand: Hedler
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hedler LED Lights

Product description

• Profilux Daylight LED650 Flood Light The Profilux Daylight LED650 Light from Hedler is a compact 6.3 x 6.5 x 7.0" daylight-balanced fixture with a 70-degree beam angle that's an easy-to-use solution for videographers and photographers. The LED650's efficient LED light source consumes just 75W of power yet outputs the equivalent of a 700W tungsten fixture. The light is also dimmable from 5 to 100% while maintaining a high CRI of 96, indicating an accurate rendering of color. The LED650 has an integrated fan that is automatically heat-activated but can be shut off manually, a valuable feature in sound sensitive environments. Convenience features include a digital display, service indicator with status LEDs, and a recalibration option. A number of safety measures have also been incorporated, such as overheating protection and LED shutdown. The Profilux LED650 is ready for worldwide use thanks to its self-seeking 100-240 VAC power supply. The fixture is compatible with all original Hedler light-shapers via the optional QuickFit adapter.
  Benefits
  • LED soft start
  • Digital display with power display
  • Service indicator and status LEDs
  • Integrated power supply
  • Fan controlled automatically and manually
  • Recalibration option
  • Automatic detection of the mains voltage
  • Multi-voltage: 100-240 VAC
  • Overheating protection
  • Safety shutdown
  • Operating hours counter
• 4-Leaf Barndoor 360 The 4-Leaf Barndoor 360° from Hedler is a light modifier that allows you to illuminate areas of your choosing, or keep light from areas that you don't want illuminated. One or more of the four leaves can swing into the beam spread to add directional control and shape the output. The reflector is compatible with all Hedler lights except the C-Lights; which need a Speedring C for use.

• Limited 3-Year Warranty

• Limited 3-Year Warranty

Also Includes

• Kit Bag (26.8 x 10.25 x 8.7")
• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Profilux Daylight LED650 Flood Light

  Beam Angle	70°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 96
  Cooling System	Fan
  Dimming	Yes, 5 to 100%
  Display	None
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	6.3 x 6.5 x 7.1" / 160.0 x 165.0 x 180.0 mm
  Fixture Weight	5.62 lb / 2.55 kg

  Fixture Mount	None
  Accessory Mount	None

  Remote Control Type	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter

• 4-Leaf Barndoor 360

  Construction	Metal
  Dimensions	7.87 x 7.87" (200 x 200 mm)
  Weight	1.54 lb (700 g)
