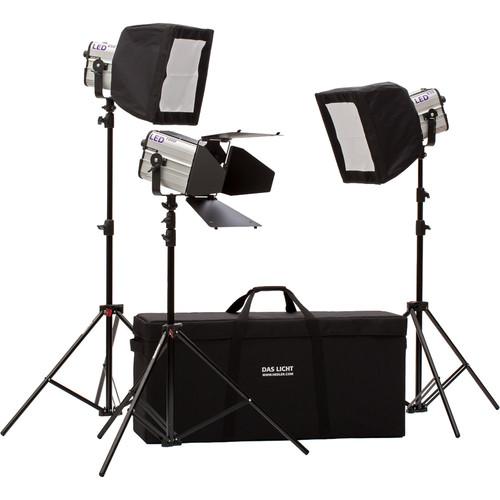

User Manual for Hedler Profilux LED650 LED1000 3-Light Video Pro Kit

• Product category: LED Lights Hedler
• Brand: Hedler
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hedler LED Lights

Product description

• Profilux LED1000 Daylight Fresnel The Profilux LED1000 Daylight Fresnel from Hedler is a compact daylight-balanced fixture with a built-in electronic ballast that's suitable for video or still photography. The LED1000's efficient LED lamp consumes 185W of power yet outputs many times that number in equivalent tungsten light and with a high CRI of 95. The fixture is fully dimmable too. The housing has a QuickFit adapter that allows easy use of all reflectors, softboxes plus a 4-way barndoor set to modify the light, while the fixture's extensive 20 to 60° spot-to-flood range gives the user a variety of light quality choices. A number of safety measures have been incorporated such as integrated overheating protection and an LED safety switch-off. The Profilux LED1000 has a 5/8" receiver for stand mounting and a 110-240 VAC power supply for worldwide use.
  Benefits
  • • LED soft starting
    • Display with light output power indicator
    • Fully dimmable light output with high light output power repeatability
    • Service indicator and status LEDs
    • Completely integrated electronic ballast
    • Cooling control automatically and manually
    • Recalibration option
    • Automatic mains voltage recognition
    • Multi-voltage 110 - 240 VAC, 50/60Hz
    • Integrated overheating protection
    • Integrated LED safety switch-off
    • Integrated operation hour counter
• Profilux Daylight LED650 Flood Light The Profilux Daylight LED650 Light from Hedler is a compact 6.3 x 6.5 x 7.0" daylight-balanced fixture with a 70-degree beam angle that's an easy-to-use solution for videographers and photographers. The LED650's efficient LED light source consumes just 75W of power yet outputs the equivalent of a 700W tungsten fixture. The light is also dimmable from 5 to 100% while maintaining a high CRI of 96, indicating an accurate rendering of color. The LED650 has an integrated fan that is automatically heat-activated but can be shut off manually, a valuable feature in sound sensitive environments. Convenience features include a digital display, service indicator with status LEDs, and a recalibration option. A number of safety measures have also been incorporated, such as overheating protection and LED shutdown. The Profilux LED650 is ready for worldwide use thanks to its self-seeking 100-240 VAC power supply. The fixture is compatible with all original Hedler light-shapers via the optional QuickFit adapter.
  Benefits
  • LED soft start
  • Digital display with power display
  • Service indicator and status LEDs
  • Integrated power supply
  • Fan controlled automatically and manually
  • Recalibration option
  • Automatic detection of the mains voltage
  • Multi-voltage: 100-240 VAC
  • Overheating protection
  • Safety shutdown
  • Operating hours counter
• 4-Leaf Barndoor 360 The 4-Leaf Barndoor 360° from Hedler is a light modifier that allows you to illuminate areas of your choosing, or keep light from areas that you don't want illuminated. One or more of the four leaves can swing into the beam spread to add directional control and shape the output. The reflector is compatible with all Hedler lights except the C-Lights; which need a Speedring C for use.
• MaxiSoft Softbox (12 x 12") The 12 x 12" MaxiSoft Softbox from Hedler is an ideal choice for tabletop, small products, hairlight or fill light. The softbox rotates 360 degrees, accepts optional grids and is useable on Hedler lights up to 300W. C-Lights require Speedring C for use.

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Storage Bag

• Limited 3-Year Warranty

Also Includes

• 3 x Air-Cushioned Light Stands (7.75')
• Light Case XL
• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Profilux LED1000 Daylight Fresnel

  Beam Angle	20 to 60°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95
  Cooling System	Fan/Passive Combo
  Dimming	Yes, 5 to 100%
  Housing Material	Aluminum
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	9.8 x 6.5 x 7.0" / 250.0 x 165.0 x 180.0 mm
  Fixture Weight	7.3 lb / 3.31 kg

  Lens Type	Fresnel

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	110 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter
  Max Power Consumption	185 W

  Cable Length	9.8' / 3 m

  IP Rating	IP20
  Operating Temperature	5 to 104°F / -15 to 40°C

• Profilux Daylight LED650 Flood Light

  Beam Angle	70°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 96
  Cooling System	Fan
  Dimming	Yes, 5 to 100%
  Display	None
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	6.3 x 6.5 x 7.1" / 160.0 x 165.0 x 180.0 mm
  Fixture Weight	5.62 lb / 2.55 kg

  Fixture Mount	None
  Accessory Mount	None

  Remote Control Type	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter

• 4-Leaf Barndoor 360

  Construction	Metal
  Dimensions	7.87 x 7.87" (200 x 200 mm)
  Weight	1.54 lb (700 g)

• MaxiSoft Softbox (12 x 12")

  Size	11.8 x 11.8 x 10.2" (30 x 30 x 26 cm)
  Shape	Square
  Compatibility	Hedler lights up to 300 W
  Removable Front Face	Not specified by manufacturer
  Removable Interior Baffle	Not specified by manufacturer
  Accepts Grids	Yes
  Requires Speed Ring	No
  Weight	1.7 lb (770 g)
