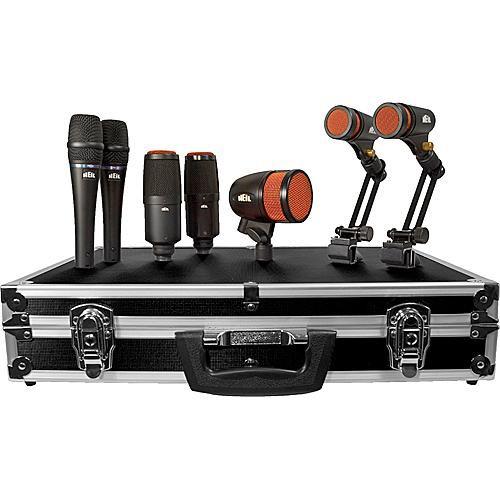

Heil Sound HDK-7 7-Piece Dynamic Drum

User Manual for Heil Sound HDK-7 7-Piece Dynamic Drum Microphone Kit

• Product category: Dynamic Microphones Heil Sound
• Brand: Heil Sound
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Heil Sound Dynamic Microphones

Product description

• PR 48 Dynamic Cardioid Kick Drum Microphone The PR 48 from Heil Sound is a professional-quality dynamic kick drum microphone that provides highly accurate sound reproduction. Designed for a life of professional use, the mic has a large 1.5" dynamic diaphragm sealed in a vulcanized shock mount to minimize handling noise. The capsule has a cardioid pickup pattern to reject off-axis noise. A specially designed low-pass filter provides a 10dB boost in the 60-100Hz range, which is where the kick drum has the most resonance. The mic has a metal housing with a slanted XLR entrance for easy cable connection.
  • Highly-accurate sound reproduction
  • Large 1.5" dynamic diaphragm is sealed in a vulcanized shock mount to minimize handling noise
  • Cardioid pickup pattern rejects off-axis noise, focusing only on the desired sound source
  • Specially-designed low pass filter provides a 10dB boost in the 60-100Hz range for ideal resonance
  • Metal housing with a slanted XLR entrance for easy cable connection
  UPC: 885936794816
• PR 28 Dynamic Drum Microphone The PR 28 from Heil Sound is a professional-quality dynamic microphone ideal for use with drums. The mic has a large dynamic element with a cardioid pickup pattern to reject off-axis noise. A shockmount inside the mic's die-cast alloy body provides excellent isolation for the mic element. The mic offers a wide frequency response, with a +4dB rise around 4kHz to improve the presence of tom drums without needing outboard EQ.

  The PR 28 is compatible with the patent-pending HH-1 tom drum mounting system (sold separately), which mounts right onto the rim of a tom or snare.
  • Robust die-cast alloy body
  • Large 1.25" dynamic element
  • Internal shockmount for excellent isolation
  • Cardioid pickup pattern rejects off-axis sounds
  • High SPL capability captures loud sound sources without distortion
  UPC: 885936792812
• PR 22 Dynamic Cardioid Handheld Microphone (Black) The black PR 22 Dynamic Cardioid Handheld Microphone from Heil Sound can be used to mic anything from vocals to snare drums. Heil has developed the patent-pending IsoBand technology, which uses a Sorbothane rubber suspension system in order to eliminate low frequency handling noise. The mic uses a special low-mass NdFeB diaphragm and a large voice coil assembly to provide exceptional performance, including a cardioid pickup pattern with excellent off-axis rejection.

  The microphone produces a very linear pattern and reduces proximity effect. It can also be used in extremely high sound pressure applications, and is virtually immune to overload conditions. A leatherette carrying bag, microphone clip, and 3 metal windscreens (black, silver, and gold) are included.
  Rugged Construction
  • The heavy steel construction, which is assembled and tested in Illinois, allows the mic to withstand the rigors of professional use
  IsoBand Technology
  • The patent-pending IsoBand technology uses an internal Sorbothane rubber suspension system to eliminate low frequency handling noise
  Great Sound
  • A low-mass NdFeB diaphragm and large voice coil assembly provide a high level of pattern control, a linear frequency response, and exceptional capability to withstand high SPL levels
  Cardioid Pattern
  • The cardioid pickup pattern rejects off-axis noise and is perfect for picking up live vocals
  Accessories Included
  • The mic includes a leatherette carrying bag, a mic clip, and 3 metal windscreens (black, silver, and gold)
  UPC: 885936792218

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Microphone Clip

• Carrying Bag

• 3 x Metal Windscreens

• Limited 3-Year Warranty

Also Includes

• 2 x PR 30B Mics
• 2 x HH-1 Mounts
• Carrying Case
• Limited 3-Year Warranty
• Limited 1-Year Warranty on Accessories

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• PR 48 Dynamic Cardioid Kick Drum Microphone

  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Response	Not Specified by Manufacturer
  SPL	+148 dB
  Output Impedance	600 Ohms
  Output Connectors	3-Pin XLR Male
  Dimensions (LxDiameter)	Not Specified by Manufacturer
  Weight	Not Specified by Manufacturer

  Box Dimensions (LxWxH)	6.7 x 4.5 x 4.3"

• PR 28 Dynamic Drum Microphone

  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Response	40 Hz to 16 kHz
  Output Impedance	600Ω
  Sensitivity	-72 dB
  Output Connectors	3-Pin XLR Male
  Dimensions	Not Specified by Manufacturer
  Weight	Not Specified by Manufacturer

  Box Dimensions (LxWxH)	6.8 x 4.4 x 4.4"

• PR 22 Dynamic Cardioid Handheld Microphone (Black)

  Transducer	Dynamic
  Diaphragm	1.125" / 28.57 mm
  Polar Pattern	Cardioid
  Frequency Range	50 Hz to 18 kHz
  Impedance	600 Ohms
  Sensitivity	-55 dB at 1 kHz

  Weight	14 oz / 397 g

  Box Dimensions (LxWxH)	10.4 x 7.1 x 3.9"
