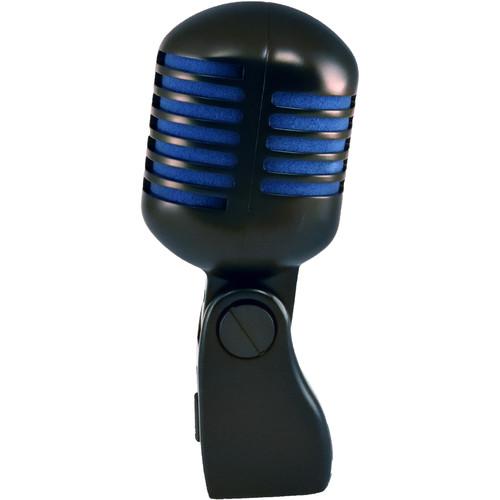

User Manual for Heil Sound Heritage Cardioid Dynamic Microphone Click to enlarge the picture
Contents of the user manual for the Heil Sound Heritage Cardioid Dynamic Microphone
- Product category: Dynamic Microphones Heil Sound
- Brand: Heil Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Heil Sound Dynamic Microphones
|
User manual for the Heil Sound Heritage Cardioid Dynamic Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Heil Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Heil Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Heil Sound product will considerably shorten its lifespan!
|
Product description The black matte Heil Sound Heritage is a cardioid dynamic microphone offering high-fidelity electronics in a vintage-style housing for vocalists, musicians, and audio engineers in homes, studios, clubs, and concert venues. Its large-diaphragm dynamic voice coil easily handles loud sources and produces a frequency response of 50 Hz to 18 kHz with a midrange boost at 4 kHz to increase vocal clarity and instrument brightness. The cardioid polar pattern yields significant off-axis rejection, which reduces pickup of room ambience and stage bleed. The capsule is mounted in a rubber shock-isolation system to impede handling noise and vibrations transferred through the stand. Plosives and wind noise are attenuated via the internal foam windscreen. A lockable on/off switch allows onstage muting between bands or sets. The balanced XLR 3-pin output ensures compatibility with a variety of microphone preamps, mixer inputs, portable PA systems, and audio interfaces. Durable steel construction delivers stage-ready reliability. The Heritage features an integrated stand mount for simple attachment to a mic stand (available separately). - Vintage-style appearance is well suited to on-camera use
- Durable steel body ensures tour-worthy toughness
- Cardioid polar pattern exhibits -30 dB of rear rejection at the 180° off-axis point
- Special magnet structure with a large 1.25" low-mass aluminum voice coil
- Molded internal foam windscreen reduces plosives and wind noise
- Specially tooled rubber shock-isolation system minimizes the transfer of vibrations to the capsule
- Sliding on/off switch has a small screw that can lock it in position
- Integrated 5/8"-27 thread allows easy mounting on a mic stand
- Hand-assembled and tested in the United States of America
UPC: 885936887228 In the Box Heil Sound Heritage Cardioid Dynamic Microphone (Black Matte) Limited 3-Year Warranty Limited 90-Day Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Heil Sound Heritage Cardioid Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHeil Sound The Heritage Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Diaphragm | 1.25" / 31.75 mm | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 18 kHz | | Maximum SPL | 142 dB SPL | | Pad | None | | Impedance | 600 Ohms | | Sensitivity | -55 dB at 1 kHz | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 7" / 177.80 mm | | Diameter | 2.25" / 57.15 mm | | Weight | 1.56 lb / 0.71 kg | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 11.2 x 5.4 x 3.0" |
