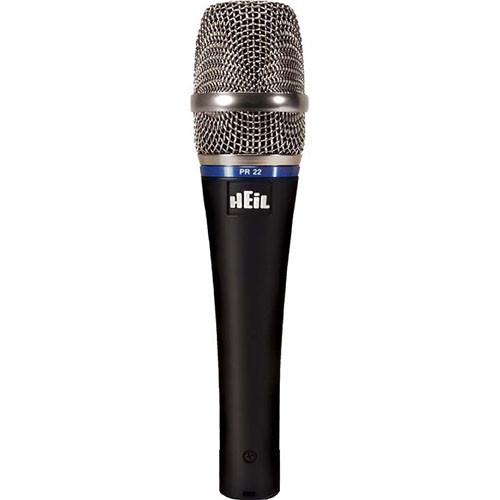

User Manual for Heil Sound PR 22 SUT Handheld Cardioid Dynamic Microphone with On Off Switch Click to enlarge the picture
Contents of the user manual for the Heil Sound PR 22 SUT Handheld
- Product category: Dynamic Microphones Heil Sound
- Brand: Heil Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Heil Sound Dynamic Microphones
|
User manual for the Heil Sound PR 22 SUT Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Heil Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Heil Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Heil Sound product will considerably shorten its lifespan!
|
Product description The Heil Sound PR 22 SUT is a handheld cardioid dynamic microphone designed for articulate reproduction of vocals, speech, instruments, amplifier cabinets, and drums in studios, clubs, houses of worship, and live stage applications. Though sonically identical to the PR 22, the PR 22 SUT sports a stainless steel grille in place of the PR 22's interchangeable silver, black, and gold grilles. The dynamic microphone element features a composite magnet for increased strength and a cardioid polar pattern, which provides significant rear rejection and immunity to feedback. With a 145 dB maximum SPL and a frequency response of 50 Hz to 18 kHz, it is well suited to a wide variety of sources. The patent-pending ISO BAND isolation mounting impedes handling noise and rumble from vibrations. Plosives and wind noise are attenuated via the included foam windscreen. An on/off switch allows easy muting between announcements, bands, or sets. The balanced XLR 3-pin output ensures compatibility with most microphone preamps, mixer inputs, portable PA systems, and audio interfaces. A mic clip and carrying bag are also included with the PR 20 SUT. - A combination of special porting and phasing plug design yield a cardioid polar pattern that exhibits -30 dB of rear rejection at the 180° off-axis point
- Large-diaphragm, patent-pending ISO BAND isolation mounting offers increased articulation and reduced handling noise
- Large, low-mass, 1.125" aluminum voice coil assembly
- High 145 dB maximum SPL easily handles loud sound sources such as snare hits or trumpet blasts
- Convenient on/off switch allows easy muting between bands or sets
- Supplied windscreen reduces plosives, wind noise, and moisture exposure
- Hand-assembled and tested in the United States of America
UPC: 885936792225 In the Box Heil Sound PR 22 SUT Handheld Cardioid Dynamic Microphone with On/Off Switch (Stainless Steel Grille) Microphone Clip Foam Windscreen Leatherette Carrying Bag Limited 3-Year Warranty Limited 90-Day Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Heil Sound PR 22 SUT Handheld Cardioid Dynamic Microphone with On Off Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHeil Sound PR 22 SUT Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 18 kHz | | Maximum SPL | 145 dB SPL | | Pad | None | | Impedance | 600 Ohms | | Sensitivity | -55 dB at 1 kHz | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 7.3125" / 185.74 mm | | Diameter | 1.625" / 41.27 mm | | Weight | 14 oz / 397 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 11.2 x 5.7 x 2.4" |
