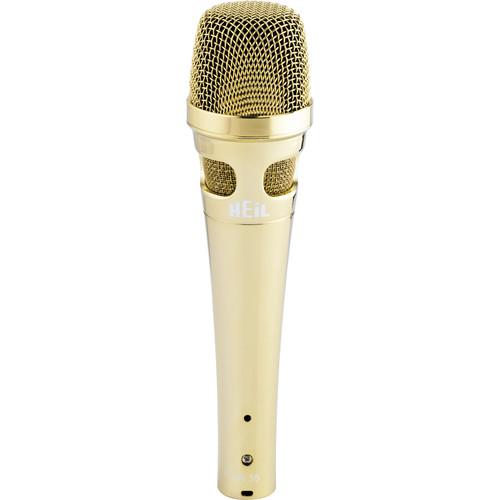

User Manual for Heil Sound PR 35 Handheld Dynamic Cardioid Microphone Click to enlarge the picture
Contents of the user manual for the Heil Sound PR 35 Handheld Dynamic
- Product category: Dynamic Microphones Heil Sound
- Brand: Heil Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Heil Sound Dynamic Microphones
|
User manual for the Heil Sound PR 35 Handheld Dynamic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Heil Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Heil Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Heil Sound product will considerably shorten its lifespan!
|
Product description The gold PR 35 Handheld Dynamic Cardioid Microphone from Heil Sound is a professional-quality handheld dynamic microphone ideal for live vocal performances. The large dynamic element has a special magnet structure and a low mass aluminum voice coil assembly to provide a smooth, flat frequency response with natural and articulate midrange.
The microphone element is mounted on an internal Sorbothane shock mount to reduce the effects of handling noise. A specially-placed hum bucking coil rejects hum and buzz, making it safe to use this microphone near video monitors. The evenly-spaced ports on the microphone body reject off-axis noise, providing a linear cardioid pattern that reduces proximity effect. A 3-position rolloff switch lets you choose flat, -3 dB, or -6 dB rolloff. A microphone clip and leatherette carrying case are included. - Large Dynamic Element
- The large dynamic element, combined with a special magnet structure and low mass aluminum voice coil provide a wide, flat frequency response with a natural and articulate midrange
- Internal Shock Mount
- The internal Sorbothane shock mount isolates the diaphragm from the mic body to reduce handling noise
- Cardioid Pickup Pattern
- Evenly-spaced vents on the mic body provide excellent off-axis noise rejection for a linear cardioid pickup pattern
- Reduced Noise
- A specially placed hum bucking coil rejects hum and buzz, for safe use near video monitors
- Multiple Rolloff Positions
- A 3-position rolloff switch lets you choose between flat, -3 dB, and -6 dB response
- Accessories Included
- A standard mic stand clip and a leatherette carrying case are included
UPC: 885936793550 In the Box Heil Sound PR 35 Handheld Dynamic Cardioid Microphone (Gold) Microphone Clip Leatherette Carrying Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Heil Sound PR 35 Handheld Dynamic Cardioid Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHeil Sound PR35 Specs | Polar Pattern | Cardioid | | Frequency Response | 40 Hz to 18 kHz (no filter)
80 Hz to 18 kHz (filter engaged) | | Output Impedance | 370 Ω, balanced | | Off Axis Rejection | @ 180°: -35 dB | | Output Level | -52.9 dB @ 1 kHz | | Maximum SPL | 140 dB | | Output Connector | 3-pin XLR | | Weight | 9 oz (255g) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 10.3 x 6.9 x 3.7" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
