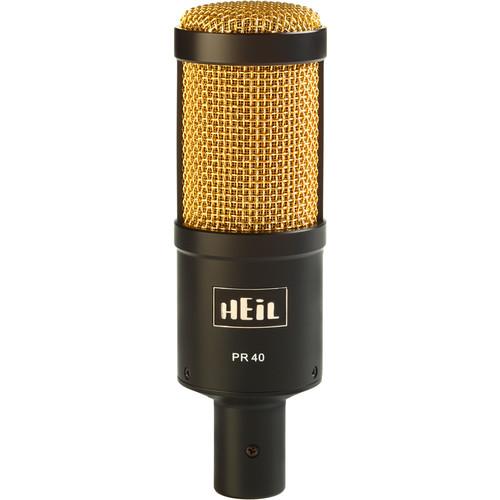

User Manual for Heil Sound PR 40 Dynamic Cardioid Studio Microphone Click to enlarge the picture
Contents of the user manual for the Heil Sound PR 40 Dynamic Cardioid
- Product category: Dynamic Microphones Heil Sound
- Brand: Heil Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Heil Sound Dynamic Microphones
|
User manual for the Heil Sound PR 40 Dynamic Cardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Heil Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Heil Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Heil Sound product will considerably shorten its lifespan!
|
Product description The PR 40 Dynamic Cardioid Studio Microphone from Heil Sound is a high-performance dynamic microphone ideal for use as a vocal mic for talk-show hosts and other voice over applications. The large dynamic element produces a smooth response with an articulate and natural midrange. The size of the diaphragm, combined with a low mass and an efficient NdFeB magnet structure, allow the microphone to achieve a wide dynamic range and capture high SPLs, making it a great kick drum mic as well.
The microphone has 4 rear ports to reject off-axis noise, resulting in a smooth, tight cardioid pickup pattern with reduced proximity effect. The steel body and internal humbucking coil shield the microphone, making it safe for use near video monitors and noisy lighting fixtures. An internal Sorbothane shock mount decouples the microphone's dynamic element from the body to reduce the effects of handling noise. - Professional Sound
- The large dynamic element has a smooth frequency response with a natural and articulate midrange, making this an ideal mic for voice over applications
- Wide Dynamic Range
- The large size and low mass of the mic element, combined with a powerful NdFeB magnet structure, give the mic the ability to capture high SPLs while providing a wide dynamic range
- Cardioid Pickup Pattern
- The mic has 4 rear ports designed to reject off-axis noise, providing it with a smooth, tight cardioid pickup pattern
- Specialized Screen System
- The mic's screen system uses 2 different mesh screens and an internal filter to keep sibilance and plosives to a minimum
- Internal Shock Mount
- The internal Sorbothane mount decouples the mic element from the body, reducing the effects of handling noise
- Heavily Shielded
- The rugged steel body and internal hum bucking coil shield the microphone, allowing you to use it near video monitors and noisy light fixtures
- Assembled in the USA
- The PR 40 is assembled and tested in Illinois
UPC: 885936794076 In the Box Heil Sound PR 40 Dynamic Cardioid Studio Microphone (Black with Gold Screen) Padded Vinyl Carrying Case Microphone Stand Clip Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Heil Sound PR 40 Dynamic Cardioid Studio Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHeil Sound PR40 Specs | | | Transducer | Dynamic | | Polar Pattern | Cardioid | | Frequency Range | 28 Hz to 18 kHz | | Maximum SPL | 148 dB SPL | | Impedance | 600 Ohms | | Sensitivity | -53.9 dB at 1 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Weight | 13.5 oz / 383 g | | | | Package Weight | 2.19 lb | | Box Dimensions (LxWxH) | 10.45 x 7.0 x 4.0" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
