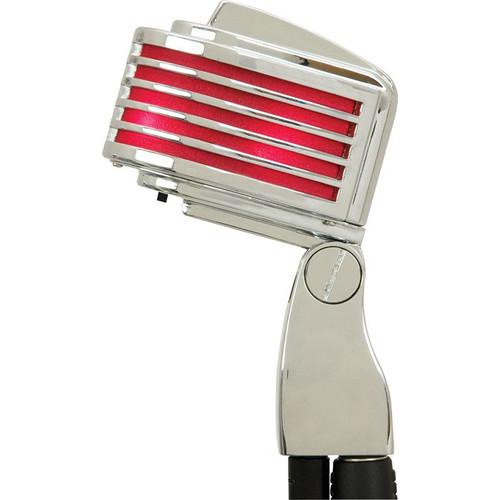

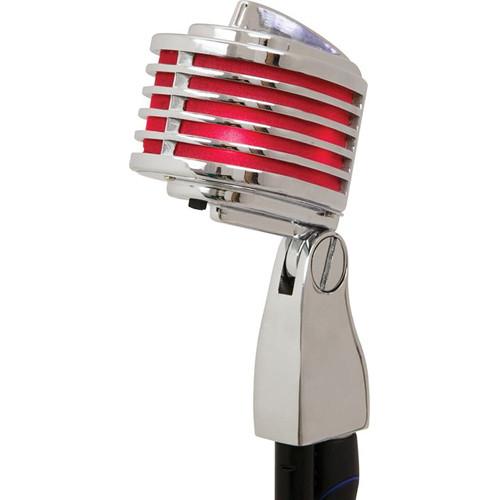

Product description Featuring red LEDs, The Fin Dynamic Chrome Vocal Microphone from Heil Sound is a dynamic vocal microphone with vintage deep-chrome plated construction that delivers great vocal reproduction and charm. The Fin uses a highly sensitive neodymium, boron and iron magnet with a large 1-1/18" aluminum low mass voice coil assembly for exceptional frequency response and mid-range reproduction. Its tight cardioid polar pattern aids against off-axis noise and feedback. A windscreen is internally mounted within the grill, and four LEDs illuminate the capsule.
The frequency response is 50 Hz to 18 kHz with a mid range at 4 kHz. The steel body is copper plated and then double chrome plated producing a deep chrome finish. A blue molded internal foam windscreen inside the grill covers the dynamic microphone element mounted in a specially tooled rubber shock mount.
The four LED lamps mounted inside can only be illuminated when using The FIN with one of the 3-pin balanced XLR inputs of a professional mixing console that supplies a 48V phantom down the balanced microphone line.
The microphone audio will also work with unbalanced low impedance inputs typically found on amateur radios, communications audio or simple public announcement systems. None of these will have the proper voltage to illuminate the lamps, but the microphone will fully work.
Standard 5/8"-27 microphone stand threads allow The Fin to be mounted on booms or floor stands. - Special "showchrome" finish
- Molded internal foam windscreen
- Four LED lights mounted inside
- Designed especially for live sound, recording, and broadcast applications

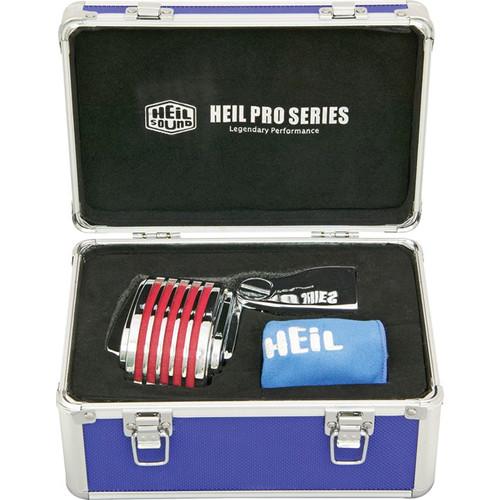

UPC: 885936695137 In the Box Heil Sound The Fin Dynamic Chrome Vocal Microphone (Red LEDs) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Heil Sound The Fin Dynamic Chrome Vocal Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHeil Sound The Fin Specs | | | Transducer | Dynamic | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 18 kHz | | Maximum SPL | 142 dB SPL | | Impedance | 600 Ohms | | Sensitivity | -55 dB at 1 kHz | | | | Operating Voltage | 48 V | | Weight | 24.9 oz / 706 g | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 9.5 x 6.7 x 6.0" |
