User Manual for Heli Max 1Si Quadcopter wth Camera Click to enlarge the picture
Contents of the user manual for the Heli Max 1Si Quadcopter wth Camera
- Product category: See All Drones Heli Max
- Brand: Heli Max
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Heli Max See All Drones
 |
User manual for the Heli Max 1Si Quadcopter wth Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Heli Max product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Heli Max user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Heli Max product will considerably shorten its lifespan!
|

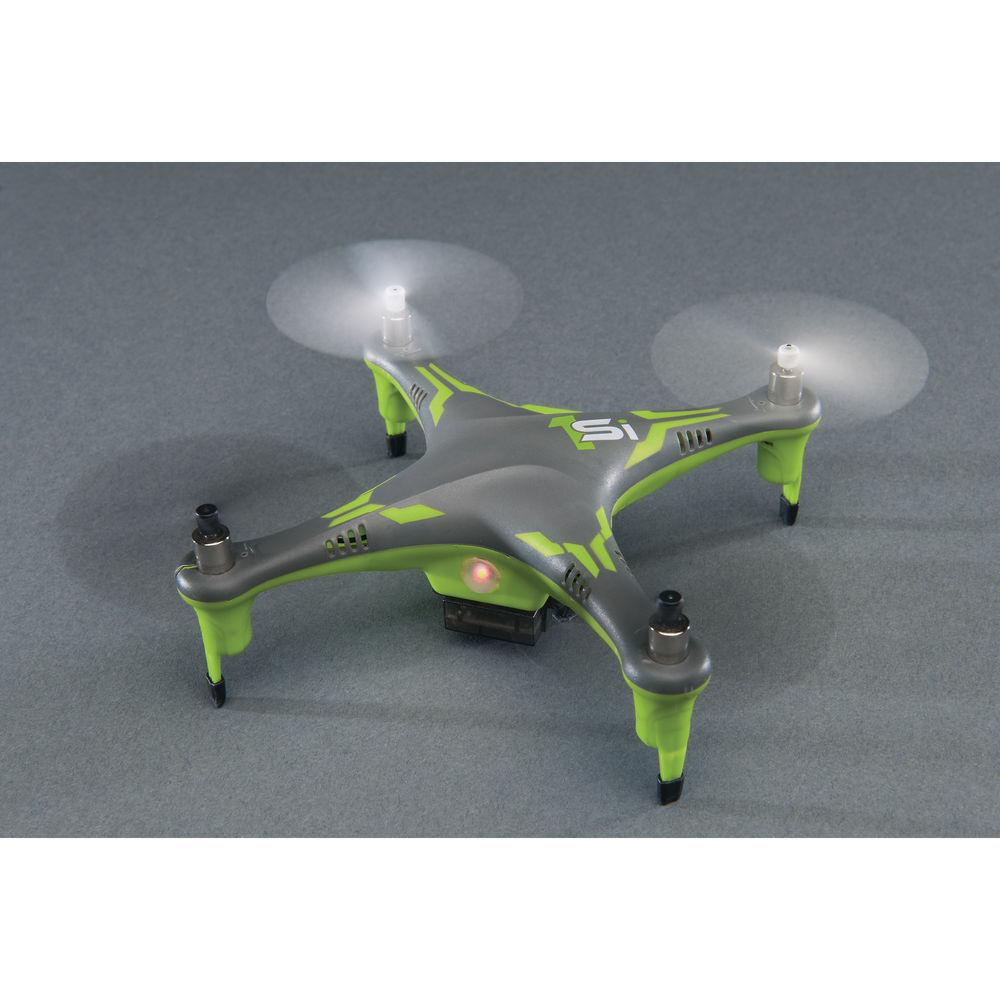

Product description Aerial Photography and Drone Glossary Read More Heli-Max's 1Si Quadcopter SLT 2.4 GHz with Camera is a compact quadcopter which can be flown indoors or outdoors in light winds. It comes encased in an aerodynamic body shell that helps stabilize the 1Si during hovering and forward flight and protects the internal components from bumps, knocks, and hard landings. All the functions available in the 1Si can be controlled via the included 2.4 GHz transmitter. An LCD on the front of the transmitter displays flight status and the current controller mode. The S1i is packaged "ready-to-fly" (RTF) and doesn't require extensive transmitter pairing. The 1Si also features a small digital camera that takes still photos and shoots video with control from the transmitter. The camera comes with a 2GB micro memory card with USB card reader, and supports additional memory cards (not included) up to 32GB. - Beginner and Expert Flight Modes
- You can select Beginner or Expert flight modes from the transmitter. In Beginner mode, releasing the sticks lets the 1Si stabilize itself in flight, which is suitable when you're unsure of how to react. Expert mode turns off the TAGS-FX accelerometers, allowing for greater maneuverability.
- Actual Direction Control
- Actual Direction Control compensates for the control reversal that can frustrate first-time pilots. It keeps flight direction the same as stick movement, regardless of the 1Si's orientation. You can activate and deactivate Actual Direction Control directly from the transmitter so you can always fly how you want according to your skills.
- Return to Pilot
- If you get confused by the controls or lose track of your quadcopter, the Return to Pilot feature is a great way to get this 1Si Quadcopter back to you. On hitting the Return to Pilot button, it will home in on the controller's location and fly straight back to it.
- Micro Digital Camera

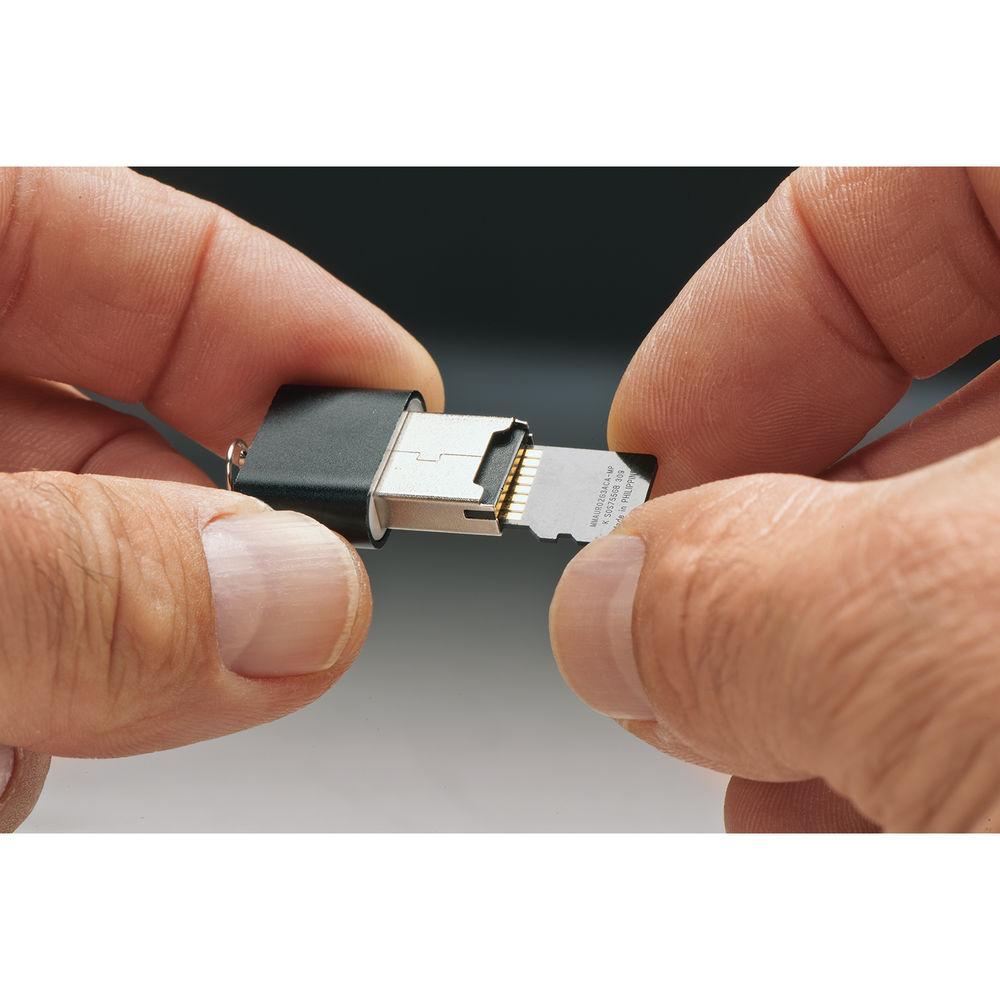

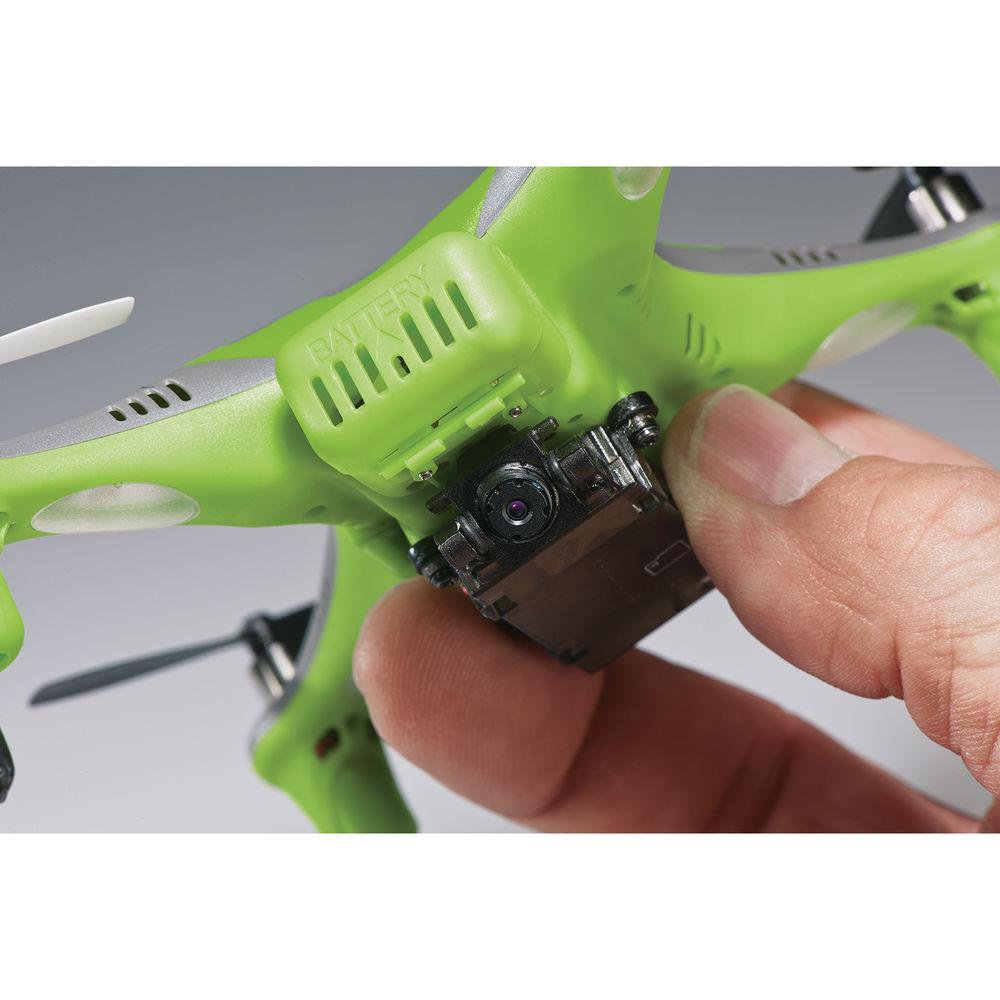

- The 1Si Quadcopter features a micro digital camera that takes still photos and shoots video with control from the transmitter. Images are saved to the included 2GB memory card and can be downloaded later to your computer. The camera supports memory cards up to 32GB in size and comes with a USB card reader.
- Integrated Color LEDs

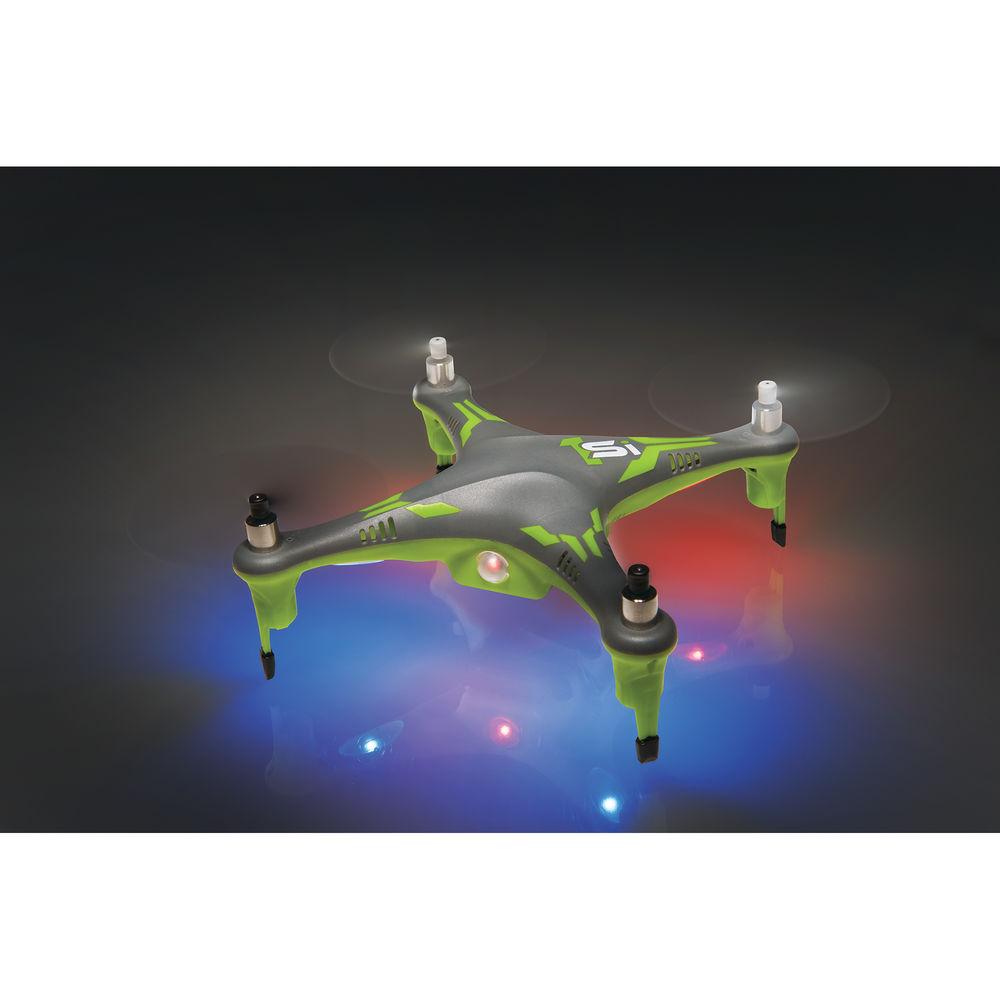

- Integrated color LEDs on the bottom of each boom provides lighted flight and allows the pilot to follow the orientation of the 1Si Quadcopter.
- Battery
- You can recharge the Quadcopter's 350mAh flight battery using the included USB-compatible LiPo battery charger.
- TAGS-FX with Sensor Fusion Technology
- The switchable TAGS-FX with Sensor Fusion Technology corrects unwanted movements in yaw, pitch, and roll, and prevents drifts.

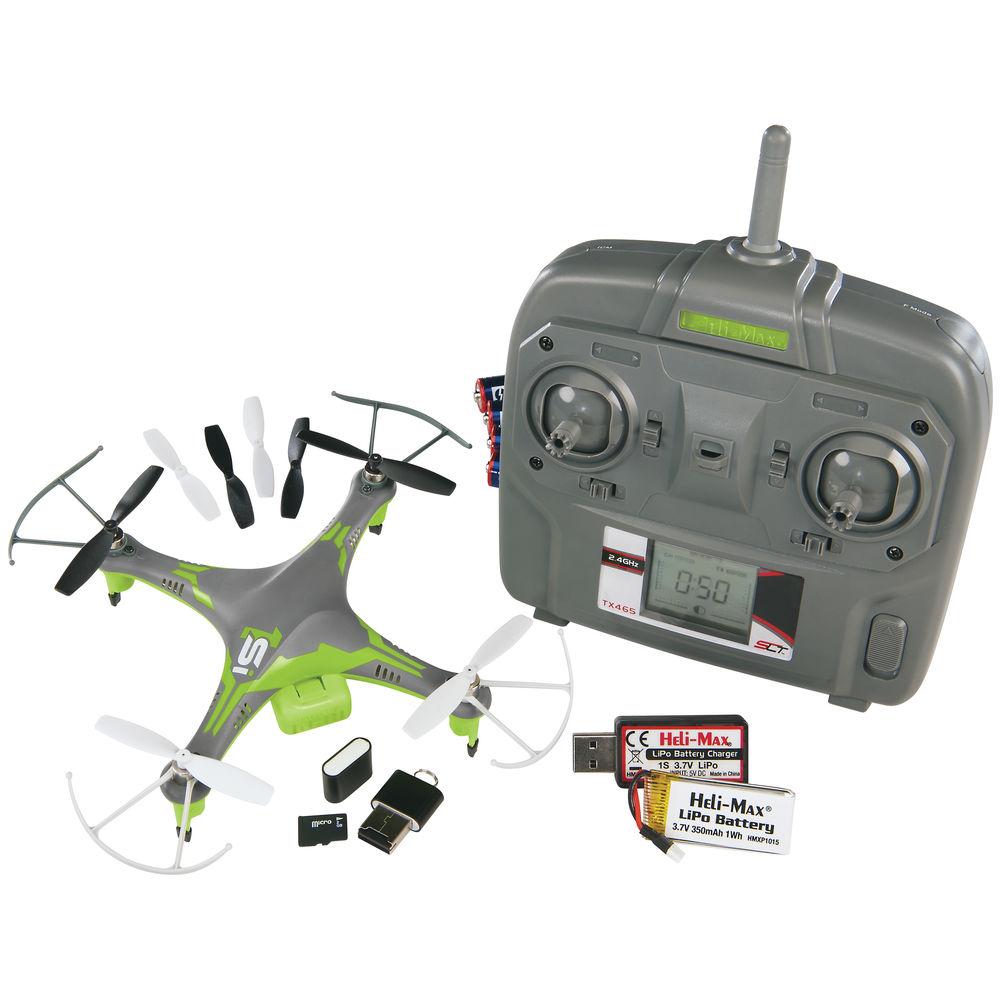

UPC: 667298008325 In the Box Heli Max 1Si Quadcopter wth Camera 2.4 GHz SLT Radio HMX 465 SLT Transmitter LiPo Battery and USB charger "AA" Batteries Screwdriver Extra Rotor Blades Rotor Blade Guard Micro Digital Camera 2GB Micro Memory Card USB Micro Memory Card Reader Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 xytqqddfsbaftdacvvx Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 791kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Heli Max 1Si Quadcopter wth Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHeli Max 1Si Specs | | | Memory | microSD card | | Video Codec | Motion JPEG, 1280 x 720, 30 fps
File Extension: .avi | | Audio Codec | PCM S16 LE, mono | | Still Capture | 1280 x 720, 96 dpi File Extension: .jpg | | | | Number of Motors | Four 20 x 7 Coreless | | Dimensions | 4.92" (12.5 cm) Quadcopter (diagonal from motor center to motor center)
Overall: 5.4 x 1.8 x 5.4" (13.8 x 4.5 x 13.8 cm)
Rotor Diameter: 2.2" (5.6 cm)
Diagonal Dimension: 4.8" (12.3 cm)
Blade Length: 2.2" (5.6 cm) | | Weight | Empty: 1.09 oz (31.00 g)
With Camera: 1.23 oz (35.00 g)
RTF: 1.44 oz (41.00 g)
With Camera: 1.56 (45.00 g) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 10.2 x 8.9 x 4.4" |
