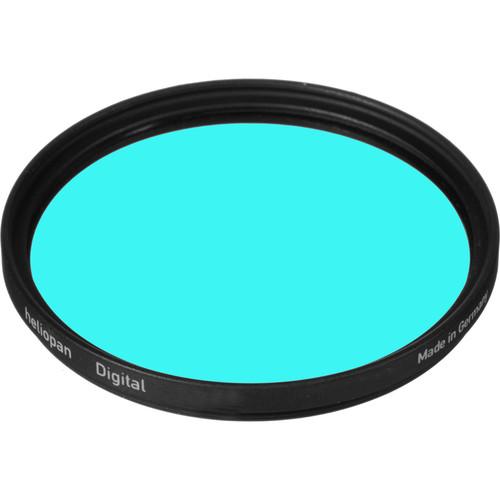

Product description The Heliopan 48mm RG 850 Infrared Filter is designed to help capture images of how a subject reflects or transmits infrared light.
Infrared light waves occupy the space in the electromagnetic spectrum behind visible light due to their longer wavelengths. Many surfaces and materials react to, or emit infrared light waves differently than visible light waves, which provide the potential for photographs of subjects or subject properties that are otherwise invisible to the human eye. Such images require an infrared-sensitive medium such as infrared film or a digital photographic sensor which may be more effective when used without the infrared-blocking filters that are frequently built over them.
Conventional light sources such as the sun, photographic strobes, or incandescent lighting may be used to provide infrared illumination. However, because infrared films or digital photographic sensors can be more sensitive to the relatively higher energy and shorter-wavelength visible light those sources also emit, the effects of infrared light can be otherwise obscured. The Heliopan 48mm RG 850 Infrared Filter makes it possible to capture images of how subjects are illuminated by infrared light by blocking near-infrared, visible, and ultraviolet light waves while allowing approximately 85% of infrared light waves 850nm or greater into the lens it is mounted onto.
This filter is constructed from Schott glass for increased optical clarity and features a thin brass filter ring to minimize the potential for vignetting while enhancing durability and jamming prevention. -
- Designed for use with infrared film or digital camera sensors by filtering out near-infrared, visible, and ultraviolet light
- Allows approximately 85% of infrared light waves beginning at 850nm to pass through
- Effective for infrared films or other media sensitive to infrared wavelengths 850nm or above
- Constructed from Schott glass for optical clarity
- Each glass surface includes four layers of anti-reflection coating to prevent internal ghosting and reflections
- Filter factor of approximately 200x reduces exposure by about 7.6 stops
- Thin, brass filter ring helps to prevent vignetting, jamming, and provides additional strength
- 48mm front filter threads allow for use with other filters
- Plastic case for storage and transport
In the Box Heliopan 48mm RG 850 Infrared Filter Filter Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Heliopan 48mm RG 850 Infrared Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHeliopan 704865 Specs | Type | Infrared Filter | | Size | 48 mm | | Density | ~2.3 | | Filter Factor | ~200 (~7.6 stops) | | Multi-Coated | Yes | | Effect | Helps provide the ability to capture images of subjects illuminated only by infrared light by blocking accompanying near-infrared, visible, and ultraviolet light | | Construction | Schott glass | | Front Filter Thread Size | 48 mm | | Front Lens Cap Size | 48 mm |
