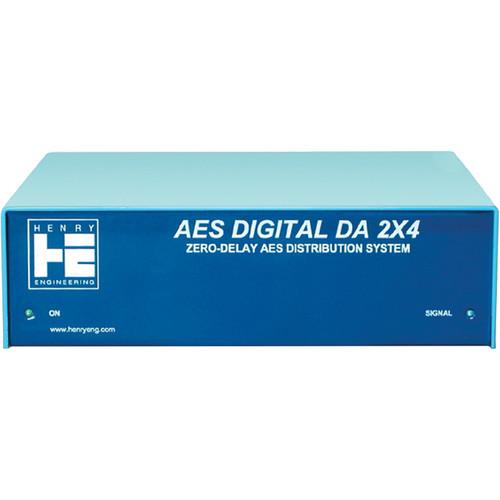

User Manual for Henry Engineering AES Digital DA 2x4 Distribution System Click to enlarge the picture
Contents of the user manual for the Henry Engineering AES Digital DA 2x4
- Product category: Distribution Amplifiers Henry Engineering
- Brand: Henry Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Henry Engineering Distribution Amplifiers
|
User manual for the Henry Engineering AES Digital DA 2x4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Henry Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Henry Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Henry Engineering product will considerably shorten its lifespan!
|
Product description The AES Digital DA 2x4 Distribution System from Henry Engineering is a 2 x 4 distribution system for digital audio signals. It can accept either an AES or S/PDIF digital audio stream, and create four identical AES outputs. The AES DA is 100% bit-accurate and transparent to the source, adding absolutely no delay or latency to the signal. The AES input and all four AES outputs are individually transformer-balanced and isolated from ground. The S/PDIF input signal is converted to an AES standard level and source impedance. The AES I/O is via XLR connectors; Pin 1 is connected to the AC "safety" ground. The S/PDIF input is via an RCA connector; the shield is isolated from the AC ground. No user adjustments or calibration is necessary. A blue "Signal" LED confirms the presence of an input signal.
The AES Digital DA 2x4 is powered with a built-in AC power supply, which can be set by the user to operate on either 115 or 230 volts AC. The AES Digital DA 2X4 is 1/3 rack wide, and can be mounted using the optional Rack Shelf. It can also be mounted with Henry Engineering's Desk Mount Kit or the wall/ cabinet mounting brackets. - Can accept either an AES or S/PDIF digital audio stream, and create four identical AES outputs
- 100% bit-accurate and transparent to the source, adding absolutely no delay or latency to the signal
- Powered with a built-in AC power supply, which can be set by the user to operate on either 115 or 230 volts AC
- Can be rackmounted with additional optional Rack Shelf or Desk Mount Kit
UPC: 837654309247 In the Box Henry Engineering AES Digital DA 2x4 Distribution System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Henry Engineering AES Digital DA 2x4 Distribution System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHenry Engineering DDA Specs | AES3 Input | 110 Ohms, transformer balanced x 1, XLR/M | | S/PDIF Input | 75 Ohms, unbalanced, RCA | | AES Output | 110 Ohms, transformer balanced x 4, XLR/F | | Sample Rate | 32 kHz to 192 kHz | | Bit Depth | >24 bits | | Power Input | 115 or 230 VAC, 50 to 60 Hz, 3W | | Construction Material | Steel enclosure | | Approvals | City of Los Angeles ETL/CE/ROHS | | Dimensions (W × H × D) | 5.7 x 1.7 x 6.0" | | Weight | 3 lb (1.4 kg) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 8.819 x 6.378 x 2.126" |
