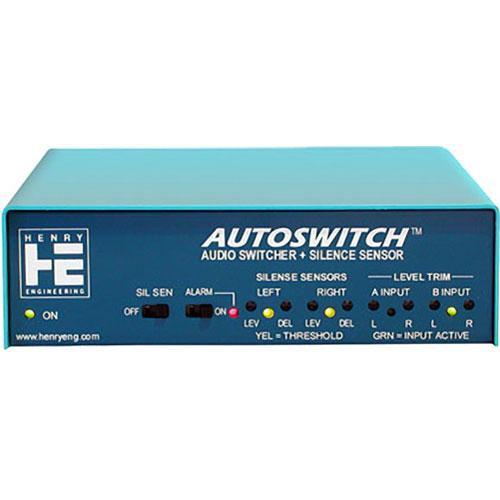

User Manual for Henry Engineering Autoswitch - Audio Switcher and Silence Sensor Click to enlarge the picture
Contents of the user manual for the Henry Engineering Autoswitch - Audio Switcher
- Product category: Switchers & Controllers Henry Engineering
- Brand: Henry Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Henry Engineering Switchers & Controllers
|
User manual for the Henry Engineering Autoswitch - Audio Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Henry Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Henry Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Henry Engineering product will considerably shorten its lifespan!
|
Product description The Autoswitch from Henry Engineering is designed for two purposes - to eliminate digital echo in DJ headphones caused by digital audio processing, and to prevent dead air by switching to an alternate audio source in the event that the main air feed fails. The unit can be set to manually or automatically select between two stereo audio sources.
The Autoswitch offers two sets of stereo inputs and one stereo output on phoenix connectors, as well as a phoenix connector for control interface. When interfaced to a console's mic-tall logic, the unit will sense when the mic is on and switch to a local source to eliminate headphone echo. The two adjustable silence sensors will trip if the main audio source level drops below the pre-set threshold and switch to a backup audio source. When the main level returns, the unit automatically switches back.
A built-in alarm relay output can be used to activate an external alarm or other equipment. LED indicators show which source is active, and whether or not either channel is below the silence threshold. If desired, the silence sensors and alarm relay can be disabled for manual control. Gain trims are provided for adjustment of audio levels. - 1/3 rack space steel unit
- Eliminates digital echo in DJ headphones
- Automatically switches to secondary audio source if main feed drops below a pre-set level
- Phoenix-type connectors for input, output, and control
- Two adjustable silence sensors automatically switch back and forth between primary and secondary audio sources when pre-set levels are crossed
- Alarm relay output activates an external alarm or other equipment
- LEDs show which audio source is active, when a source is below silence threshold, and when a silence sensor has tripped
- Gain trimmers for precise audio adjustments
UPC: 837654309056 In the Box Henry Engineering Autoswitch - Audio Switcher and Silence Sensor 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Henry Engineering Autoswitch - Audio Switcher and Silence Sensor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHenry Engineering AS Specs | Input Level | -10 to +4 dBu | | Input Impedance | 10 k ohms Balanced
5 k ohms Unbalanced | | Output Level | +4 dBu Nominal
+24 dBu Max | | Output Impedance | 600 ohms or Higher, Balanced | | Gain | -6 to +6dB | | Frequency Response | DC-20kHz, +/-0.25dB | | Distortion | < 0.01% | | Noise | > 90dB Below +4 dBu Output | | Control Input | Maintained Contact Closure or 5-24VDC | | Silence Sense Level | 10 to 40dB Below Normal Level | | Alarm Time Delay | 3 to 35 seconds in 2 Ranges | | Alarm Relay Output | Dry Contacts, SPDT, 24VDC, 1A Max | | Power Requirements | 115/230VAC, 50-60Hz, 3W | | Dimensions (WxDxH) | 5.75 x 5.5 x 1.6" (146 x 140 x 41 mm) | | Weight | 3 lbs (1.36 kg) | | | | Package Weight | 2.26 lb | | Box Dimensions (LxWxH) | 9.0 x 7.0 x 2.0" |
