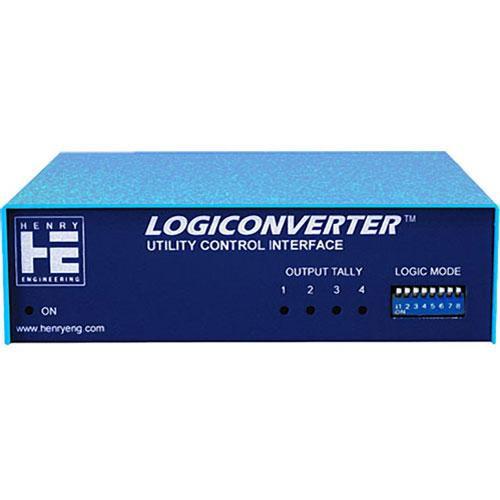

Product description The Henry Engineering LogiConverter Utility Control Logic Interface is a general purpose control interface that eliminates the incompatibility between various audio and video equipment remote control circuits. There are 4 opto-isolated inputs that control 4 isolated relay outputs that can be programmed to provide either latched or momentary outputs from either continuous or momentary inputs. Up to 24 combinations are possible. A single input can provide single or dual "flip-flop" outputs; two inputs can latch and reset an output. - Logic modes selected via front panel switches
- LEDs indicate the output status
- Inputs can be any DC voltage from 5-24VDC
- TTL or CMOS logic outputs
- Inputs are via a 15-pin D connectors
- Relay outputs are via plug-in euroblock connectors
UPC: 837654309032 In the Box Henry Engineering LogiConverter Utility Control Logic Interface 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Henry Engineering LogiConverter Utility Control Logic Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHenry Engineering LogiConverter Specs | Inputs | Opto-isolated 5-24VDC or Ground Closure | | Outputs | 4 Form-C (SPDT) Relays | | Control Input Resistance | 1.5K ohms Per Input | | Load Capacity | 1A/28VDC, .5A/120VDC Res Max | | Power | 115/230VAC, 50/60Hz, 3W | | Construction | Steel enclosure | | Dimensions | 5.7 x 1.7 x 6.0" | | Weight | 3 lbs | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 9.0 x 6.5 x 2.0" |
