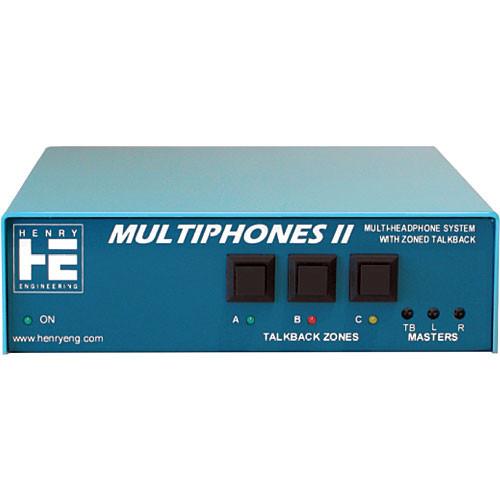

User Manual for Henry Engineering MultiPhones II - Multi-User Distributed Headphones System Master Unit Click to enlarge the picture
Contents of the user manual for the Henry Engineering MultiPhones II - Multi-User
- Product category: Accessories Henry Engineering
- Brand: Henry Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Henry Engineering Accessories
|
User manual for the Henry Engineering MultiPhones II - Multi-User contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Henry Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Henry Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Henry Engineering product will considerably shorten its lifespan!
|
Product description The MultiPhones II system from Henry Engineering provides reliable listening facilities for DJs and studio guests, each with their own headphone amplifier, volume control, and jacks. The master unit supports zoned talkback, allowing you divide the listeners into three groups for "host/guest" setups and more.
The master unit has three outputs, which can support up to 12 guest pods, connected by standard CAT5 cables. With inputs for program audio and talkback audio, the master unit also has master level trimmers for pre-setting maximum user levels. The talkback system overrides normal program audio and allows a producer or engineer to speak to guest pod listeners. Three talkback buttons on the front of the master unit allow you to select which zone or zones to address.
The system is optimized for high-efficiency headphones, but any combination of different headphones can be used since each guest pod has its own headphone amp. The unit has a built-in power supply and can be rack, wall, or cabinet mounted. - Connect up to 12 guest pods in three zones
- Three talkback buttons for zone selection
- Inputs for program audio and talkback
- Optimized for high-efficiency headphones
- No audio degradation, regardless of number of guest pods connected
- Multiple mounting options
UPC: 837654309117 In the Box Henry Engineering MultiPhones II - Multi-User Distributed Headphones System Master Unit 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Henry Engineering MultiPhones II - Multi-User Distributed Headphones System Master Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHenry Engineering MultiPhones II Specs | Program Input | -15 to +0dBm, Stereo, 10K Balanced / 5K Unbalanced | | Talkback Input | Balanced Mic or Line, Switchable, Mono | | Frequency Response | 5Hz - 20kHz, ±0.25dB | | Distortion | 0.005% Typical | | Noise | -80 dBm | | Outputs | For 24-600 Ohm Headphones | | Talkback Control | Contact Closure or +12VDC | | Power Requirements | 115/230VAC, 50-60Hz, 8W | | Dimensions (WxDxH) | 5.75 x 5.5 x 1.6" (146 x 140 x 41mm) | | Weight | 3 lbs (1.4 kg) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 8.8 x 6.4 x 2.0" |
