User Manual for Henry Engineering MultiPort Multi-Format Audio Interface Panel Click to enlarge the picture
Contents of the user manual for the Henry Engineering MultiPort Multi-Format Audio Interface
- Product category: Modules & Cards Henry Engineering
- Brand: Henry Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Henry Engineering Modules & Cards
|
User manual for the Henry Engineering MultiPort Multi-Format Audio Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Henry Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Henry Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Henry Engineering product will considerably shorten its lifespan!
|

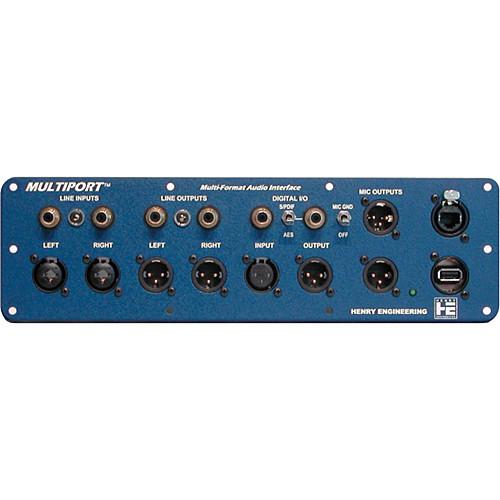

Product description The MultiPort from Henry Engineering is a multi-format audio interface panel that allows you to connect virtually any professional or consumer device to your studio equipment. This rackmount panel features analog and digital inputs and outputs with a variety of connectors. USB and RJ45 jacks are available for pass-thru. These connectors are changeable in the field, and the USB port is reversible; letting you choose whether the Type A or Type B connector is on the front panel.
The panel has active circuitry that automatically performs all of the level, impedance, and topology conversion needed for correct interfacing, letting you connect any device you want without worrying about whether or not it's going to work. The MultiPort is powered by an included external AC transformer. - Rackmount design fits in any standard equipment rack
- Works with consumer and professional analog or digital audio devices
- Active circuitry performs all necessary level, impedance, and topology conversion
- Accepts and provides both balanced and unbalanced line signals
- AES/EBU and S/PDIF digital I/O
- Pair of mono mic outputs with a ground-lift switch
- USB and RJ45 pass-thru jacks are field-changeable, and USB port can be reversed
- Powered by an external AC power transformer
UPC: 837654309230 In the Box Henry Engineering MultiPort Multi-Format Audio Interface Panel AC Transformer Rack Adapters 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Henry Engineering MultiPort Multi-Format Audio Interface Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHenry Engineering MC Specs | Connectors | 2 x XLR Line Inputs
2 x 1/4" Line Inputs
2 x XLR Line Outputs
2 x 1/4" Line Outputs
2 x Digital Inputs (AES and S/PDIF)
2 x Digital Outputs (AES and S/PDIF)
2 x XLR Mic Outputs
1 x RJ45 Pass-Thru Jack
1 x USB Pass-Thru Jack (Type A/B Reversible) | | Dimensions (HxWxD) | 3.5 x 12.2 x 2" (89 x 310 x 51mm) | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 4.0 x 4.0 x 3.1" |
