Product description

The Henry Engineering SixMix Broadcast Console is a 6-channel audio mixer designed for radio broadcast applications. The SixMix features a footprint no bigger than a laptop computer, yet its feature-rich functions and audio quality, ensure broadcast quality flexibility and sound. Ten inputs are provided including two microphone inputs, with each featuring 1/4" phone and XLR connectors. Mic 1 is dedicated to the host while the second microphone is usually assigned to guest speakers. Line inputs are featured on balanced 1/4" phone and RCA inputs for connecting CD players, additional audio mixer, etc. The intuitive control panel features large level dials and illuminated program and cue controls, to avoid accidental routing during broadcasts. A USB interface provides digital audio transfer to and from computers and a S/PDIF digital output is provided for digital audio transfers to Windows PCs (only). Additional features include a talkback system, provisions for On-Air lights and professional standard audio quality throughout.
    10 Input Channels
  • Ten inputs are provided including two microphone inputs with each featuring 1/4" phone and XLR connectors. Mic 1 is dedicated to the host while the second microphone is usually assigned to guest speakers. Line inputs are featured on balanced 1/4" phone and RCA inputs for connecting CD players, additional audio mixer, etc.
    USB1.1 Connector
  • A USB interface provides digital audio transfer to and from computers and a S/PDIF digital output is provided for digital audio transfers to Windows PCs (only).

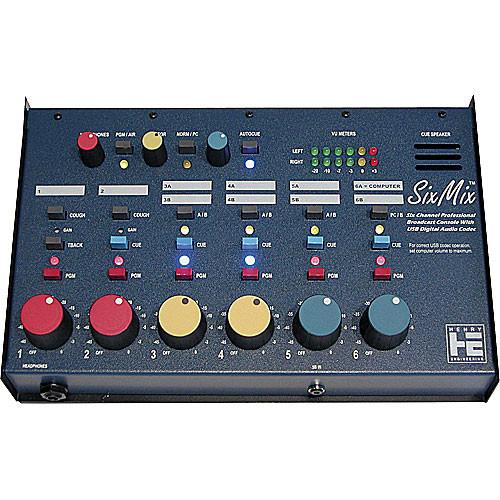

    Intuitive Controls
  • The intuitive control panel features large level dials and illuminated program and cue controls to avoid accidental routing during broadcasts.
UPC: 837654309209 In the Box Henry Engineering SixMix - 6-Channel Radio Station Broadcast Mixer
  • 1 Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Henry Engineering SixMix - 6-Channel Radio Station Broadcast Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Henry Engineering SixMix Specs

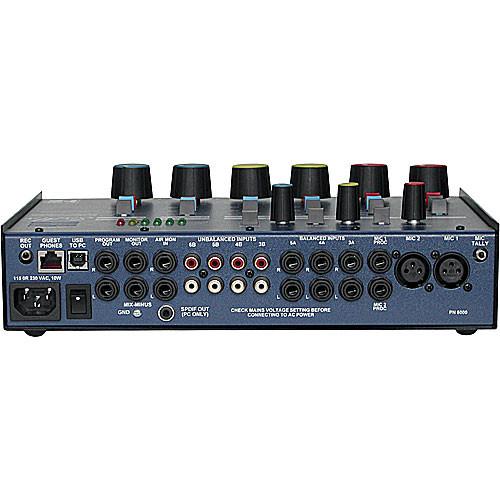

    Inputs Microphone: Balanced Stereo L/R 1/4" Phone and XLR
    Balanced Line: Stereo L/R 1/4" Phone x3
    Unbalanced Line: Stereo L/R RCA Phono x3
    Air Mon Input: Stereo L/R 1/4" Phone
    USB 1.1 Connection
    Outputs Monitor Out: Stereo L/R 1/4" Phone
    Progam Out: Stereo L/R 1/4" Phone
    S/PDIF Out (PC Only): 1/8" 3.5mm Mini
    Mic Tally: 1/8" 3.5mm Mini
    Rec Out: 1/8" 3.5mm Mini
    USB 1.1 Connection
    Frequency Response 20Hz to 20kHz
    Signal-to-Noise Ratio 93dB
    THD & Noise .004% at operating level; .002% at max level
    Dimensions (WxDxH) 12 x 8 x 3" (304.8 x 203 x 76.2mm)
    Weight 5 lbs (2.26 kg)
    Package Weight 6.35 lb
    Box Dimensions (LxWxH) 13.3 x 9.6 x 4.2"
