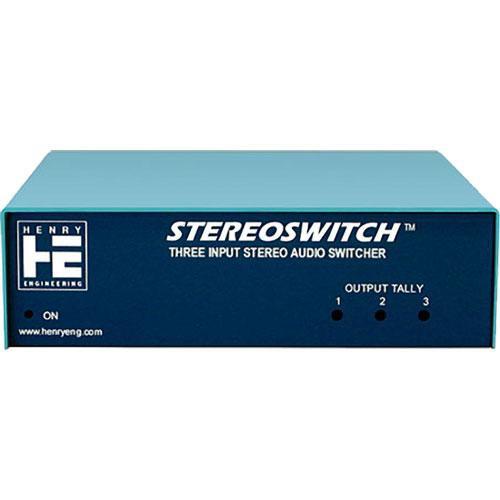

User Manual for Henry Engineering Stereo Switch - Three Stereo Input, Single Stereo Output Source Switcher Click to enlarge the picture
Contents of the user manual for the Henry Engineering Stereo Switch - Three
- Product category: Studio Monitor Controllers Henry Engineering
- Brand: Henry Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Henry Engineering Studio Monitor Controllers
|
User manual for the Henry Engineering Stereo Switch - Three contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Henry Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Henry Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Henry Engineering product will considerably shorten its lifespan!
|
Product description The Henry Engineering Stereo Switch is a three input stereo source selector for switching between three stereo input sources and sending to a single stereo output. The audio connections are provided via euroblock connectors and switching is achieved remotely with any momentary or maintained contact closure, open collector, TTL/CMOS logic, or DC voltage from 5-24 volts. The Stereo Switch is ideally suited for numerous broadcast applications, such as a studio switcher, line selector, or automatic source selection under the control of a broadcast automation system. - Three Input Single Output
- The Stereo Switch features three stereo inputs and a single stereo output on euroblock connectors.
- Remote Switching
- Input signal switching is achieved remotely with any momentary or maintained contact closure, open collector, TTL/CMOS logic, or DC voltage from 5-24 volts.
- Power-up Programming
- Internal power-up programming permits the user to determine which of the three inputs is automatically selected when AC is applied.
UPC: 837654309001 In the Box Henry Engineering Stereo Switch - Three Stereo Input, Single Stereo Output Source Switcher 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Henry Engineering Stereo Switch - Three Stereo Input, Single Stereo Output Source Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHenry Engineering SS Specs | Inputs | Stereo Balanced x3 | | Outputs | Stereo Balanced | | Remote Control Input | 9-pin D-Sub | | Crosstalk | > 90dB @ 1kHz; 80dB > 10kHz | | Separation | > 80dB @ 1kHz; 70dB > 10kHz | | Power | 115/230 VAC, 50/60Hz 3W | | Dimensions | 5.7 x 1.7 x 6.0" (144.78 x 43.17 x 152.4mm) (WxHxD) | | Weight | 3 lbs (48 oz) | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 9.0 x 6.6 x 2.3" |
