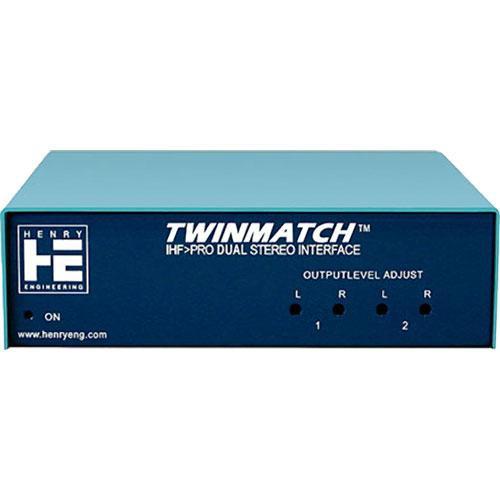

User Manual for Henry Engineering Twin Match - Dual-Stereo, Unbalanced to Balanced, Level and Impedance Matching Interface Click to enlarge the picture
Contents of the user manual for the Henry Engineering Twin Match - Dual-Stereo,
- Product category: Level Matching Transformers Henry Engineering
- Brand: Henry Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Henry Engineering Level Matching Transformers
|
User manual for the Henry Engineering Twin Match - Dual-Stereo, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Henry Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Henry Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Henry Engineering product will considerably shorten its lifespan!
|
Product description The Twin Match from Henry Engineering, is a dual-stereo (four-channel) level and impedance matching interface. The unit allows users to correctly interface the stereo outputs of two "play only" consumer-level sources, with balanced "professional" +4dBm, 600Ω systems. The interface is powered by an internal power supply, and provides four trim pots on the front panel for fine tuning individual channel levels. Adjustments can accommodate either +4dBm or +8dBm systems. All circuitry is active and direct coupled for exceptional sonic accuracy. - Uni-directional level and impedance matching interface, for connecting unbalanced "consumer" audio to "professional" balanced audio gear
- Eliminates hum, buzz, and distortion associated with mismatched levels and impedance
- Four independent amplifiers
- Front panel trim pots allow for gain adjustment on each individual channel, with a range of +6dB to +20dB
- Solid, all-metal housing with internal AC power supply
- 1/3 RU rackmount - wall and cabinet mounting options available
UPC: 837654309162 In the Box Henry Engineering Twin Match - Dual-Stereo, Unbalanced to Balanced, Level and Impedance Matching Interface 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Henry Engineering Twin Match - Dual-Stereo, Unbalanced to Balanced, Level and Impedance Matching Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHenry Engineering TM Specs | Frequency Response | DC to 20kHz, +/-0.25dB | | Noise Level | >80dB below nominal output, typical | | Maximum Input Level | Nominal: -10dBV
Maximum: Not specified by manufacturer | | Maximum Output Level | Nominal: +4dBm
Maximum: +26dBm | | Input Connectors | 4 x RCA phono | | Output Connectors | 4 x XLR | | Input Impedance | 25kΩ, unbalanced | | Output Impedance | 600Ω:, balanced | | Dimensions (WxDxH) | 5-3/4 x 1-3/4 x 6" (145 x 43 x 152 mm) | | Weight | 3 lbs (1.7 kg) | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 8.583 x 6.299 x 2.126" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
