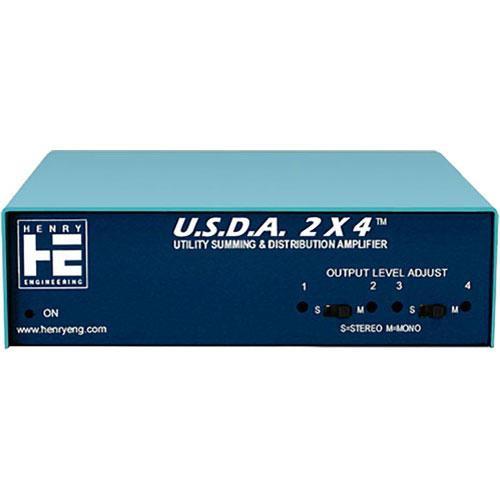

Product description The U.S.D.A. 2x4 from Henry Engineering is a mini distribution amplifier for combining or splitting audio signals. In stereo mode, it acts as a one-input, two-output distribution amplifier. In mono mode, it is a two-input, four-output distributor. Front-panel switches let you select stereo or mono operation. The U.S.D.A. 2x4 also produces simultaneous mono and stereo outputs from a stereo source.
All I/Os have plug-in Euroblock connectors and support balanced or unbalanced connections. Each output has an adjustable level with a 26 dB range. The unit has transformerless circuitry and is direct-coupled for accurate sound. The 1/3 rack-space size makes it easy to rack or wallmount the unit. It is built with an internal AC power supply. - Two Euroblock inputs (one stereo pair)
- Four Euroblock outputs (two stereo pairs)
- Front-panel switches let you select a stereo or mono output from each output pair
- Transformerless circuitry
UPC: 837654309193 In the Box Henry Engineering U.S.D.A. 2x4 Utility Summing and Distribution Amplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Henry Engineering U.S.D.A. 2x4 Utility Summing and Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHenry Engineering US Specs | Input Level | -14 to +8 dBm (Nominal) | | Input Impedance | 20 kOhms Balanced, 10 kOhms Unbalanced | | Output Level | 0 to +8 dBm Nominal, +26 dBm Max | | Output Load | 600 Ohms or Higher per Output (Balanced) | | Controls | 1 x Output Level Control for Each Channel
Mode Selector Switches | | Gain | -12 to +14 dB | | Frequency Response | 20 Hz to 20 kHz | | Total Harmonic Distortion (THD) | < 0.01% | | Noise | > 80 dB Below Nominal Output, Typical | | Material of Construction | Steel | | Power Requirements | 115/230 VAC, 50/60 Hz, 3 W | | Dimensions (W x H x D) | 5.70 x 1.75 x 6.00" / 14.48 x 4.45 x 15.24 cm | | Weight | 3.0 lb / 1.4 kg | | | | Package Weight | 2.18 lb | | Box Dimensions (LxWxH) | 9.0 x 7.0 x 2.0" |
