User manual
Hensel Certo 200 400 2-Light Portrait

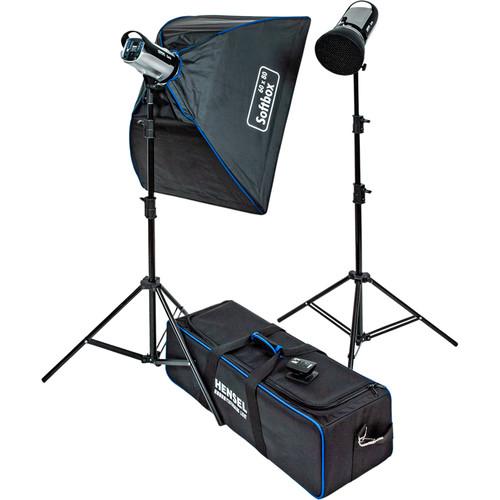

User Manual for Hensel Certo 200 400 2-Light Portrait Kit

• Product category: Monolights Hensel
• Brand: Hensel
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hensel Monolights

Product description

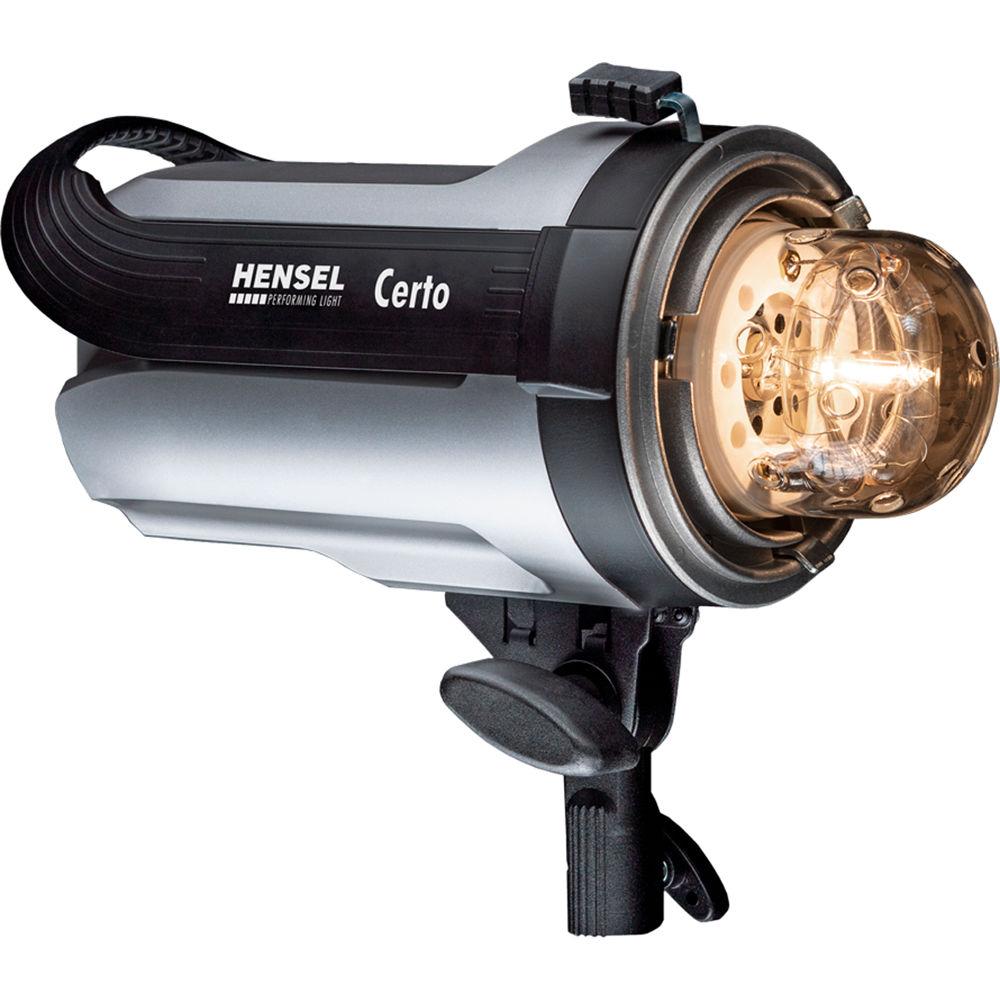

• Certo 200 Monolight The Hensel Certo 200 Monolight is a light source with solid, dependable core features. The head offers an 8-stop power range, from 3 to 200Ws with very fast recycle times of 0.4 - 1.06 seconds with flash durations as short as 1/3400 second for effective action stopping. The head also features a built-in, 16-channel radio receiver, compatible with Hensel's optional Cactus transceivers with triggering capability at distances up to 328'. The Certo 200 comes with a power cable, transport cap, and a stand adapter with built-in umbrella holder.
• Certo 400 Monolight The Hensel Certo 400 Monolight is a light source with solid, dependable core features. The head offers a 7-stop power range, from 7 to 400Ws with very fast recycle times of 0.5 - 1.1 seconds with flash durations as short as 1/2500 second for effective action stopping. The head also features a built-in, 16-channel radio receiver, compatible with Hensel's optional Cactus transceivers with triggering capability at distances up to 328'. The Certo 400 comes with a power cable, transport cap, and a stand adapter with built-in umbrella holder.
• Softbox (24 x 32") This 24 x 32" Hensel Softbox softens light from a flash unit and features changeable front and internal diffusers for modifying light characteristics. It utilizes a silver internal coating and features a recessed front panel for minimizing light scatter. Also, hook-and-loop fasteners are available for attaching accessories like honeycomb grids.

  The heavy-duty softbox requires an optional speed ring for use with Hensel EH and MH lighting systems and it includes front and internal diffusers.
• Speed Ring EH The Speed Ring EH from Hensel is a rotating mount that connects all current Hensel softboxes with flash heads that have an EH mount such as the EH Mini and EH Pro series. The aluminum speed ring is color coded for fast and easy setup.
• 7" Grid Reflector for Hensel This is a reflector that will fit all Hensel flash heads. It can accept round, 7" grid spots by Hensel, or Delta, without any other attachments to add.
• 30° Honeycomb Grid for 7" Reflector This Honeycomb Grid provides a beam spread of 30° when mounted to a Hensel 7" reflector. Grids are essential accessories for any lighting system. These devices alter the shape and intensity of the light output from your flash heads. Consider them as a painter would a brush or a sculptor would a knife or chisel. Use of a grid will result in a small circle of light when it is attached to the front of your light source. The size of the circle of light will be determined by the density of the honeycomb, its thickness, and the distance of the subject.

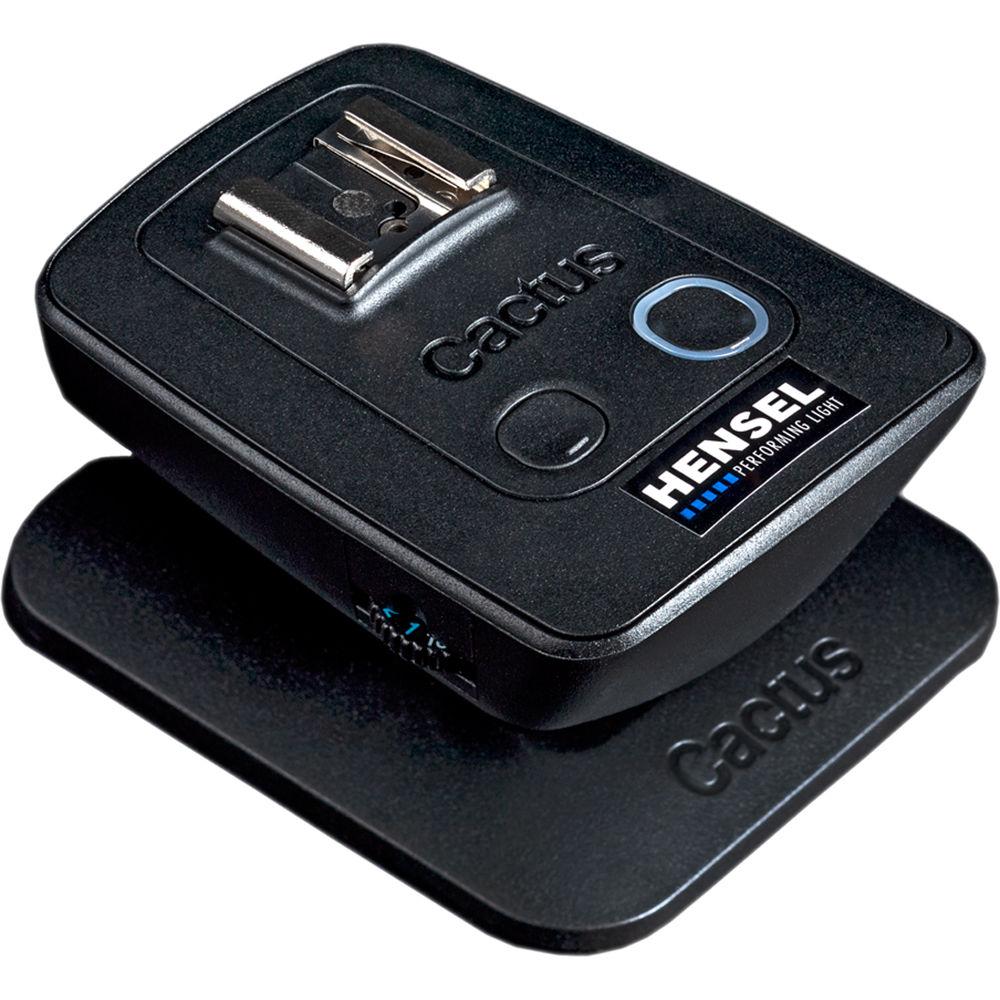

• Cactus Flash Transceiver V5 Operating on the 2.4 GHz frequency, the Cactus Flash Transceiver V5 from Hensel can function as a transmitter or receiver, on-camera or off-camera, with speedlights via its hot shoe, or connected to strobes via its 3.5mm port. Measuring only 3.2 x 2.7 x 1.4" and weighing just two ounces, (without two separately purchased AAA batteries) the low-profile Cactus Transceiver has 16 discrete channels, employs four different groups for multiple setup control, and can trigger flash heads from distances up to 328'. Convenience features include FST (Frequency Self-Tune) technology that automatically "tunes" the transceiver to its last working frequency when exposed to extreme weather conditions, as well as a low battery indicator.
  Benefits
  • Working radio frequency: 2.4 GHz
  • 16 Selectable channels, 4 groups
  • Frequency Self-Tune: automatically tunes itself to its last working frequency when exposed to extreme weather conditions
  • Supported Sync Speeds: up to 1/1000 second (subject to camera's sync speed limitation)
  • Compatible with all DSLR and SLR cameras with standard ISO hot shoe or PC sync output
  • Compatible with portable flashes and studio strobes
  • Low battery indicator
  • Wireless Range: up to 328'
  • Flash voltage handling up to 300V
  • Camera voltage handling up to 6V

• Stand Adapter with Umbrella Holder

• AC Power Cable

• Protection Cap

• Limited 2-Year Warranty

• Stand Adapter with Umbrella Holder

• AC Power Cable

• Protection Cap

• Limited 2-Year Warranty

• Transport Bag

• Limited 90-Day Warranty

• Limited 1-Year Warranty

• PC Sync Cable

• 1/8" / 3.5mm Cable

• 1/4" / 6.25mm Plug adapter

• Limited 2-Year Warranty

Also Includes

• 2 x Certo Light Stands
• Certo Kit Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Certo 200 Monolight

  Maximum Power	200 Ws
  Power Control	8 Stops in 1/10-Stop Increments
  Guide Number	125' / 38.10 m at 3.28' / 1.00 m, ISO100 with Reflector
  Flash Duration	t.5: 1/1600 to 1/3400 Sec
  Recycle Time	0.4 to 1.06 Sec (Full Power)
  Burst Rate	2 fps
  Color Temperature	5500K
  Flash Ready Indicator	Audio, Visual
  Reflector	Changeable
  Accessory Fitting Type	Hensel

  Type	Tungsten
  Wattage	150 W
  Control Modes	Full, Off, Proportional
  Color Temperature	5500K

  Sync Type	Cable, Optical, Radio
  Wireless Frequency Bands	2.4 GHz
  Wireless Channels / Groups	16 / 4
  Interface	PC Sync (3.5 mm)
  Sync Voltage	5 V

  AC Input Voltage	110 VAC, 60 Hz
  Circuit Protection	Fuse

  Display	None
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	H: 5.3 x W: 6.7 x L: 11.2" / H: 13.5 x W: 17.0 x L: 28.4 cm
  Weight	3.86 lb / 1.75 kg

• Certo 400 Monolight

  Maximum Power	400 Ws
  Power Control	7 Stops in 1/10-Stop Increments
  Guide Number	180' / 54.86 m at 3.28' / 1.00 m, ISO100 with Reflector
  Flash Duration	t.5: 1/1000 to 1/2500 Sec
  Recycle Time	0.5 to 1.1 Sec (Full Power)
  Color Temperature	5500K
  Flash Ready Indicator	Audio, Visual
  Reflector	Changeable
  Accessory Fitting Type	Hensel

  Type	Tungsten
  Wattage	150 W

  Sync Type	Cable, Optical, Radio
  Wireless Frequency Bands	2.4 GHz
  Wireless Channels / Groups	16 / 4
  Interface	PC Sync (3.5 mm)
  Sync Voltage	5 V

  AC Input Voltage	110 VAC, 60 Hz
  Circuit Protection	Fuse

  Display	None
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	H: 5.3 x W: 6.7 x L: 11.2" / H: 13.5 x W: 17.0 x L: 28.4 cm
  Weight	4 lb / 1.81 kg

• Softbox (24 x 32")

  Size	24 x 32" (60 x 80 cm)
  Shape	Rectangle
  Compatibility	Hensel EH and MH systems with optional speed ring
  Removable Front Face	Yes
  Accepts Grids	Yes
  Requires Speed Ring	Yes

  Box Dimensions (LxWxH)	25.2 x 8.4 x 2.3"

• Speed Ring EH

  Compatible Lighting	Hensel
  Compatible Softbox Shape	Strip
  Number of Mounting Holes	10
  Material	Aluminum
