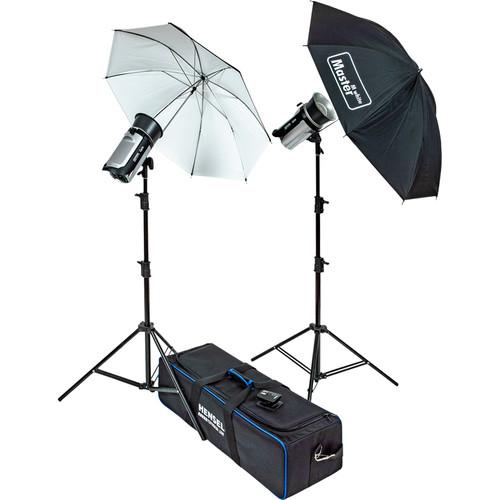

Hensel Certo 400 Basic 2-Light Kit

User Manual for Hensel Certo 400 Basic 2-Light Kit

• Product category: Monolights Hensel
• Brand: Hensel
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hensel Monolights

Product description

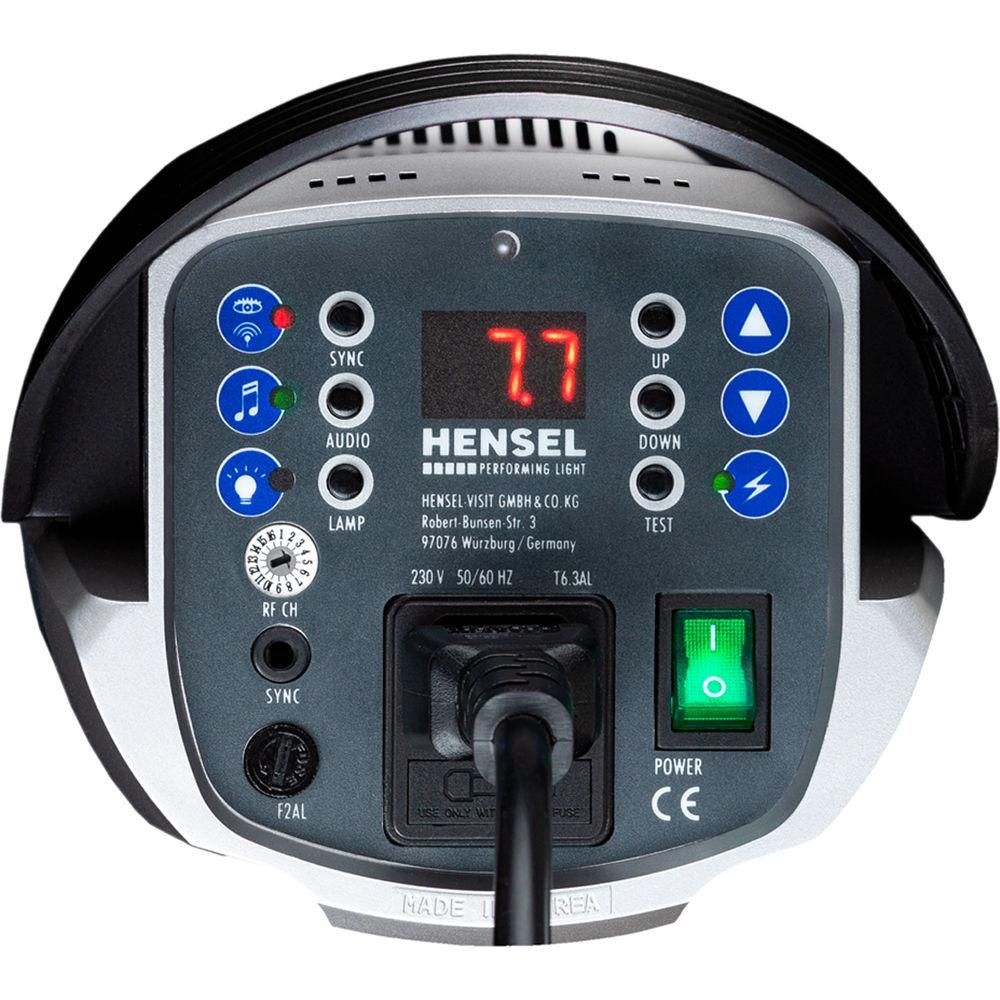

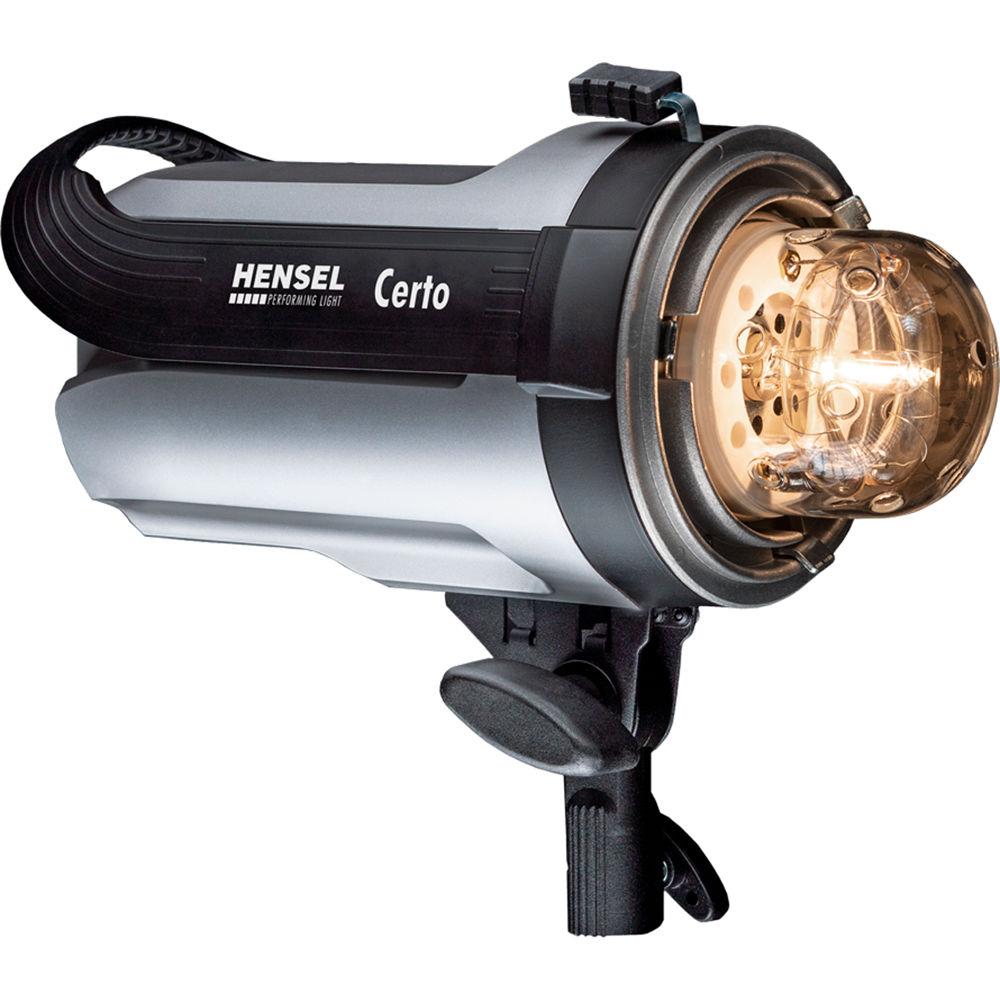

• Certo 400 Monolight The Hensel Certo 400 Monolight is a light source with solid, dependable core features. The head offers a 7-stop power range, from 7 to 400Ws with very fast recycle times of 0.5 - 1.1 seconds with flash durations as short as 1/2500 second for effective action stopping. The head also features a built-in, 16-channel radio receiver, compatible with Hensel's optional Cactus transceivers with triggering capability at distances up to 328'. The Certo 400 comes with a power cable, transport cap, and a stand adapter with built-in umbrella holder.
• Umbrella Flood Reflector for Hensel This reflector is designed specifically for use with an umbrella, while mounted to a Hensel flash head. It provides the proper beam spread for optimum, even distribution of the light into the umbrella.
• Economy Umbrella - White with Black Backing - 32" The Hensel 32" Economy Umbrella has a white interior, and black backing. It softens and broadens the light from any strobe source. The black backing prevents stray light from passing through the umbrella.

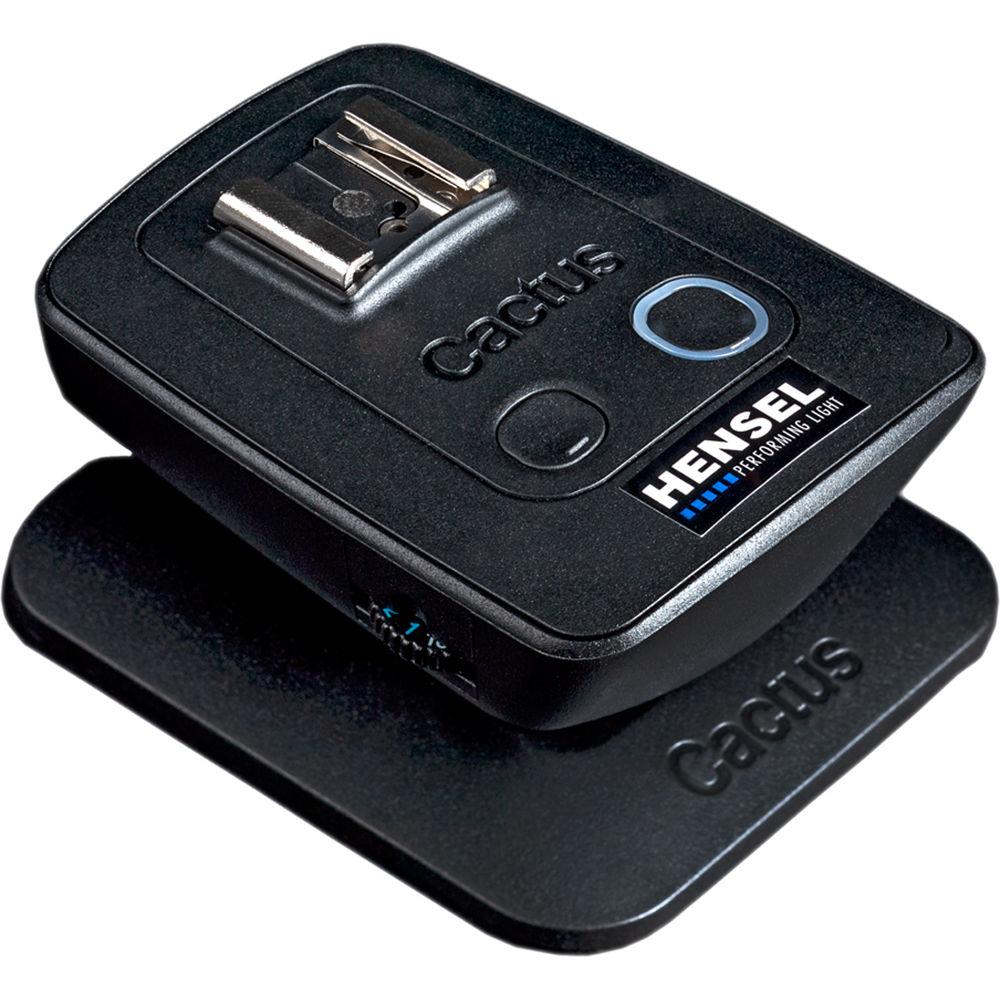

• Cactus Flash Transceiver V5 Operating on the 2.4 GHz frequency, the Cactus Flash Transceiver V5 from Hensel can function as a transmitter or receiver, on-camera or off-camera, with speedlights via its hot shoe, or connected to strobes via its 3.5mm port. Measuring only 3.2 x 2.7 x 1.4" and weighing just two ounces, (without two separately purchased AAA batteries) the low-profile Cactus Transceiver has 16 discrete channels, employs four different groups for multiple setup control, and can trigger flash heads from distances up to 328'. Convenience features include FST (Frequency Self-Tune) technology that automatically "tunes" the transceiver to its last working frequency when exposed to extreme weather conditions, as well as a low battery indicator.
  Benefits
  • Working radio frequency: 2.4 GHz
  • 16 Selectable channels, 4 groups
  • Frequency Self-Tune: automatically tunes itself to its last working frequency when exposed to extreme weather conditions
  • Supported Sync Speeds: up to 1/1000 second (subject to camera's sync speed limitation)
  • Compatible with all DSLR and SLR cameras with standard ISO hot shoe or PC sync output
  • Compatible with portable flashes and studio strobes
  • Low battery indicator
  • Wireless Range: up to 328'
  • Flash voltage handling up to 300V
  • Camera voltage handling up to 6V

• Stand Adapter with Umbrella Holder

• AC Power Cable

• Protection Cap

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• PC Sync Cable

• 1/8" / 3.5mm Cable

• 1/4" / 6.25mm Plug adapter

• Limited 2-Year Warranty

Also Includes

• 2 x Certo Light Stands
• Certo Kit Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Certo 400 Monolight

  Maximum Power	400 Ws
  Power Control	7 Stops in 1/10-Stop Increments
  Guide Number	180' / 54.86 m at 3.28' / 1.00 m, ISO100 with Reflector
  Flash Duration	t.5: 1/1000 to 1/2500 Sec
  Recycle Time	0.5 to 1.1 Sec (Full Power)
  Color Temperature	5500K
  Flash Ready Indicator	Audio, Visual
  Reflector	Changeable
  Accessory Fitting Type	Hensel

  Type	Tungsten
  Wattage	150 W

  Sync Type	Cable, Optical, Radio
  Wireless Frequency Bands	2.4 GHz
  Wireless Channels / Groups	16 / 4
  Interface	PC Sync (3.5 mm)
  Sync Voltage	5 V

  AC Input Voltage	110 VAC, 60 Hz
  Circuit Protection	Fuse

  Display	None
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	H: 5.3 x W: 6.7 x L: 11.2" / H: 13.5 x W: 17.0 x L: 28.4 cm
  Weight	4 lb / 1.81 kg

• Umbrella Flood Reflector for Hensel

  Box Dimensions (LxWxH)	6.6 x 6.1 x 3.5"

• Economy Umbrella - White with Black Backing - 32"

  Size	32.0" / 81.3 cm
  Interior	White
  Exterior	Black

  Box Dimensions (LxWxH)	22.1 x 3.1 x 0.9"

• Cactus Flash Transceiver V5

  Channels	16 (Selective)
  Groups	4
  Wireless Range	328' / 99.97 m
  Radio Frequency	2.4 GHz

  Control Modes	Group, Manual
  Sync Speed	1/1000 Sec

  Ports	1 x 3.5 mm (Flash)

  Bottom Mount	Transmitter: Hot Foot
  Top Mount	Transmitter: Hot Shoe

  Battery Type	2 x AAA Not Included

  Operating Temperature	-4 to 122°F / -20 to 50°C

  Dimensions	3.23 x 2.76 x 1.46" / 82 x 70 x 37 mm (Transmitter)
  Weight	2.05 oz / 58 g (Transmitter) Without Batteries
