User Manual for Hensel EH Mini P LED Speed Flash Head Click to enlarge the picture
Contents of the user manual for the Hensel EH Mini P LED Speed
- Product category: Battery Powered Heads Hensel
- Brand: Hensel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hensel Battery Powered Heads
 |
User manual for the Hensel EH Mini P LED Speed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hensel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hensel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hensel product will considerably shorten its lifespan!
|

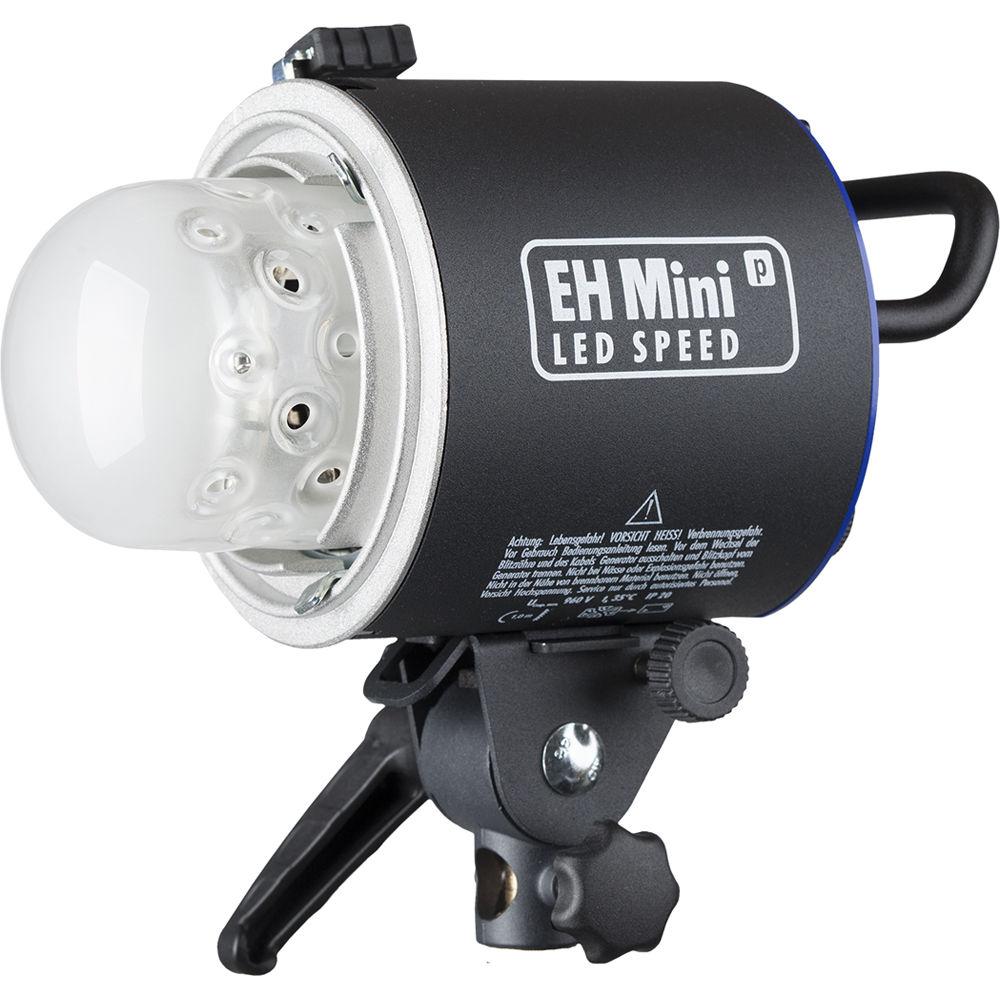

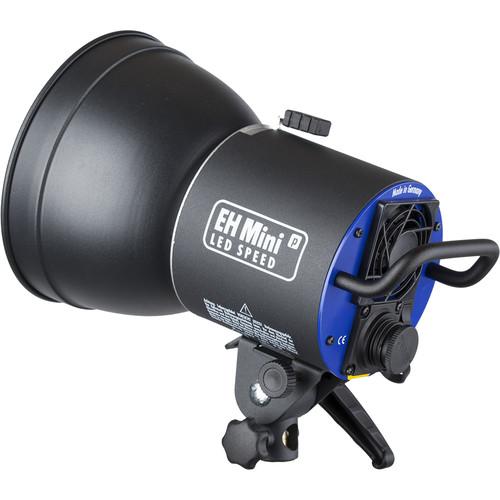

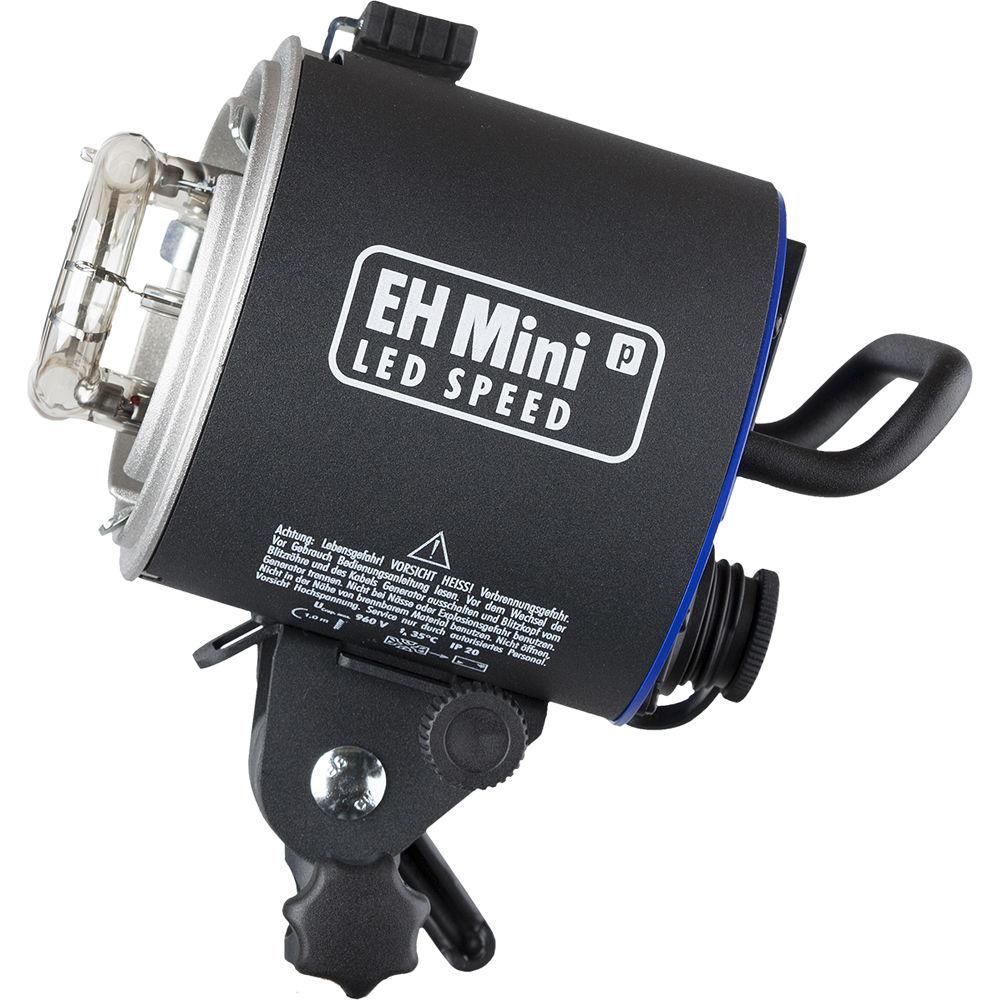

Product description This Hensel EH Mini P LED Speed Flash Head is a compact flash head with a sturdy metal housing and tilting mount that's designed to work with Porty L power packs. The flash is called "Speed" to illustrate its ability to provide action-freezing flash durations as short as 1/8100 sec. at minimum power. The 1,200W capacity 7.5 x 5.0 x 6.3" head is reduced in size from previous versions of Porty heads and weighs in at 3.8 lb. Its matte glass dome protects the user-replaceable flash tube while fan cooling lengthens its lifetime and protects the head's electronics from overheating.The EH Mini P LED Speed P replaces the original 60W halogen lamp with an on/off switchable 6,000K LED modeling lamp that not only draws very little power from the Porty's battery but outputs the equivalent of a 300W tungsten lamp. The EH Mini comes with a detachable 16.4' head cable that can be replaced with 23 and 33' versions and is compatible with Hensel's quick-change reflector system. - Short Flash Duration
- Short flash duration down to 1/8100 sec.
- Reflector Compatibility
- Reflectors can be attached at any angle and simply locked into place with the snap of one lever
- Sturdy Construction
- Sturdy metal housing with integrated tilt bracket, universal umbrella holder and handle
- User Replaceable Flashtube
- No tools are needed to replace flashtube
- Protective Glass Dome
-
- Surrounds the flashtube for an added margin of safety
- Optional domes available
- Easy to Control
- Built-in handle provided for panning, swiveling and carrying
In the Box Hensel EH Mini P LED Speed Flash Head Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hensel EH Mini P LED Speed Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHensel EH Mini P LED Specs | Maximum Watt/Seconds | 1,200 | | User Replaceable Flashtube | Yes | | Changeable Reflector | Yes | | Circuit Protection | Fuse | | Cable Length | 16.4' (5.0 m) | | Modeling Light Wattage | 40 W LED | | Modeling Light On/Off Switch | Yes | | Protective Glass Dome | Yes | | Fan Cooled | Yes | | Compatibility | Porty 600 L and 1200 L
Porty Li with wooden handle and Porty L delivered before June 2014 require a software update
Porty models with lead-gel battery can only be used without modeling light | | Dimensions | 7.5 x 5.0 x 6.3" (19 x 12.5 x 16 cm) without cable | | Weight | 3.8 lb (1.75 kg) |
