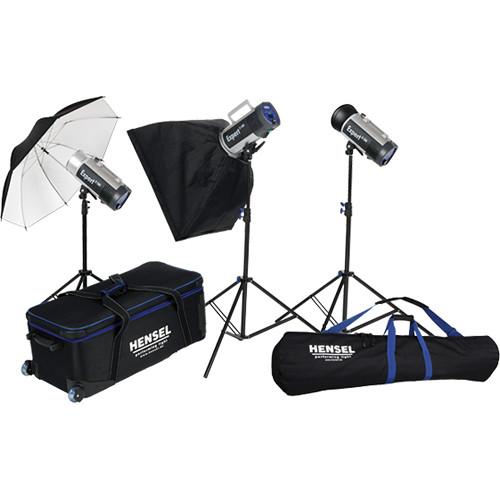

Hensel Expert D 1500 Flash Kit

User Manual for Hensel Expert D 1500 Flash Kit

• Product category: Monolights Hensel
• Brand: Hensel
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hensel Monolights

Product description

• Expert D 500 Monolight The Hensel Expert D 500 Monolight has the flexibility, control and power photographers require for commercial, portrait, wedding or industrial work.And the Expert has brains as well as brawn. Backing up an impressive 500W/s of power are convenience features that elevate it from being just another flash head to a professional lighting tool. But what good is power if you can't deliver it when it’s needed. The Expert D 500 recycles in a lightening 0.1 – 0.8 sec. And it does it at flash durations as short as 1/5800 sec., so that every fleeting gesture is frozen in a dance performance, for example. And what’s power without proportion? The Expert D 500 offers a 8 f/stop range, down to 1/32 power in 0.1 stop increments, which makes it perfect for photographers using digital cameras. Forget about that tangle of sync cords, too. The ultra-compatible Expert D 500 features Profoto Air radio, Hensel Strobe Wizard Plus and FREEMASK receivers. Just add an optional transmitter or transceiver from any of these systems for wireless triggering.Finally, the Expert D 500 is a multi-voltage monolight, which makes it useable almost anywhere in the world that has electricity.
  • Housing made of aluminum drawn profile with metal side panels
  • Multi-voltage (110 - 240 VAC) high-performance mains switch
  • Extremely fast flash recycle times
  • Extremely short flash durations
  • Extra compact pan-tilt support with integrated umbrella holder, can be positioned or removed
  • The pan-tilt support can be positioned on top or on the bottom of the unit
  • Hinged handle bar made of aluminum: carrying and safe handling in one
  • Integrated Profoto Air radio, Hensel Strobe Wizard Plus and FREEMASK receiver, switchable
  • Radio remote functions: output adjustment, triggering, modeling light, standby. Full remote control with above systems
  • Integrated radio antenna for optimum protection
  • Automatic energy saving mode for modeling light
  • Pluggable flash tube for easy replacement
  • Front panel with active back-lighting
  • Output adjustment in 1/10 f/stop increments
  • Performance adjustment range of 6 f/stops
  • Large 7-segment performance indicator
  • Digital rotary switch with notch stop, without arrester
  • Active cooling due to extremely quiet fan
  • Quick-change system for reflectors with EH 3.9" (10 cm) connector
  • USB port for software updates
  • Durable foil surface with real push-buttons for tactile feel
  • Hensel continuity - name and position of switches and control units are generally the same from model to model
  • APD, internal power reduction when reducing power output
  • Built-in photocell, switchable
  • Synchronous socket for standard cord 1/4" (6.3 mm)
  • Test button for manual test firing
  • Very low synchronous voltage protects digital cameras
  • Mains socket at bottom of unit for optimum cable guidance
  • Thermal monitoring of performance electronics
• Master Umbrella - White with Black Backing - 32" The Hensel 32" Master Umbrella has a white interior, and black backing. It is deeper than the Economy Umbrella. It softens and broadens the light from any strobe source. The black backing prevents stray light from passing through the umbrella.
• Umbrella Flood Reflector for Hensel This reflector is designed specifically for use with an umbrella, while mounted to a Hensel flash head. It provides the proper beam spread for optimum, even distribution of the light into the umbrella.
• 7" Grid Reflector for Hensel This is a reflector that will fit all Hensel flash heads. It can accept round, 7" grid spots by Hensel, or Delta, without any other attachments to add.
• Aluminum Stand VI (9.2') The 9.2' Hensel Aluminum Stand VI is a light stand that features 2 extensions and an air-cushioned structure. This stand can support up to 19.84 lb (9kg) weight.
• 44" Soft Light Stand Bag The Hensel 3750 Soft Bag for Light Stands is a padded ballistic nylon bag made to carry a light stand up to 43" long. The bag can accommodate stands with panning heads. Carried by an attached, adjustable shoulder strap with pad or dual carry handles with overlapping grip.
  • Padded ballistic nylon bag made to carry light stands up to 43" long.
  Carrying options
  • • Attached, adjustable shoulder strap with pad
    • Dual carry handles with overlapping grip
• Strobe Wizard Plus Remote Control Transmitter The Hensel Strobe Wizard Plus Radio Slave System combines radio triggering, model light activation, and flash power control into one single compact device (with Hensel strobes that support these features). The availability of 3 channels prevents interference between different work groups within the same studio. On channel #4 (master channel) all devices can be controlled simultaneously, regardless of the channel they are set to. In addition, this improved Plus version has a maximum sync speed of 1/250th. The transmitter is small, light and easily mounts into a hot shoe. In addition, it also comes supplied with a short sync cord (sub-mini connection) for PC sync connection. Note: The Plus version can only be operated with an external Strobe Wizard Plus receiver (#3951), or with internal receivers build into Integra Plus monolights having a flash arrow printed on the dialer for flash setting. Also works with the built-in receiver of the Porty Premium Plus (#4954), not with the Porty Premium AS/RC (#4953).
  • This system supports the possibility of remotely adjusting flash power and activating the modeling light via the Up/Down buttons on heads equipped with built-in receivers.
  • A maximum sync speed of 1/250th second allows for shorter flash durations.
  • Protected by a solid plastic housing.
  • A low sync voltage makes it ideally suited for digital cameras.
  • Receiver has 1/4" (6.3mm) phone plug.
• 4191 Deluxe Holdall VIII Case with Wheels (Black) The Hensel 4191 Deluxe Holdall VIII Case with Wheels (Black) (Black) is a bag designed to carry Hensel lighting kits with packs and heads, plus accessories. It has adjustable dividers that can make four compartments. In the cover there is a net pocket for storage of small parts; on the outside of the bag there is a large pocket for accessories. The bag is transported by dual straps with overlapping grip, pull handle opposite the integrated in-line skate wheels.
  • Adjustable dividers partition the bag into four internal compartments
  Pockets
  • • Large front pocket for accessories
    • Interior lid mesh pocket for storage of small parts
  Carrying options
  • • Dual straps with overlapping grip
    • Pull handle opposite wheels
    • In-line skate wheels
  • Compatible with Hensel power packs, heads and accessories

• 16' Power Cord for Integra Flash Heads / Pro Mini

• Protective Cap for Integra

• 1000Ws Flash Tube

• 300W/120V Integra Modeling Light

• Clear Glass Dome for Hensel Integra 500TRA & 1500

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• Limited 2-Year Warranty

• 90-Day Warranty from

• PX28 (544L) 6v Lithium Battery

• Short Sync Cord (Sub-Mini)

• Limited 2-Year Warranty

• 1-Year Warranty

Also Includes

• Ultra Softbox E with Grid (80 x 100cm)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Expert D 500 Monolight

  Maximum Watt/Seconds	500
  Recycle Time	0.1 sec @ minimum power 0.8 sec @ full power
  Flash Duration	(t 0.5) 1/5800 sec. at minimum power
  Flash Variability	8 f/stops Full to 1/32 power
  User Replaceable Flashtube	Yes
  Changeable Reflector	Yes
  Modeling Light Wattage	300W
  Voltage Stabilization	Yes
  Flash Ready Indicator	Ready lamp, switchable Flash Check
  Operating Voltage	110 - 240 VAC, 50 / 60 Hz
  Sync Voltage	Not specified by manufacturer
  Built-in Slave Cell	Yes, optical and radio
  Circuit Protection	Fuse
  Fan Cooled	Yes
  Auto Dump	Yes
  Dimensions	13.8 x 7.7 x 5.1" (35 x 19.7 x 13.1 cm)
  Weight	7.5 lb (3.4 kg)

  Box Dimensions (LxWxH)	19.5 x 12.0 x 9.5"

• Master Umbrella - White with Black Backing - 32"

  Box Dimensions (LxWxH)	23.0 x 3.5 x 2.5"

• Umbrella Flood Reflector for Hensel

  Box Dimensions (LxWxH)	6.6 x 6.1 x 3.5"

• 7" Grid Reflector for Hensel

  Box Dimensions (LxWxH)	8.0 x 7.65 x 5.85"

• Aluminum Stand VI (9.2')

  Load Capacity	19.8 lb / 9 kg
  Mounting Options	5/8" Stud
  Maximum Working Height	110" / 280 cm
  Minimum Working Height	41.3" / 105 cm
  Air Cushioned	Yes
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Weight	5.7 lb / 2.6 kg

  Box Dimensions (LxWxH)	46.0 x 20.0 x 6.0"

• 44" Soft Light Stand Bag

  Material	Exterior: Ballistic nylon Interior: Padded
  Type of Closure	Zipper
  Exterior Dimensions	Not Specified by Manufacturer
  Interior Dimensions	7.09 x 43" (18 x 110cm) (Dia x L)
  Accommodates	Light stands up to 43" long
  Carrying/Transport Options	Shoulder strap Carry handles
  Weight	Not Specified by Manufacturer

  Box Dimensions (LxWxH)	19.8 x 14.8 x 4.6"

• Strobe Wizard Plus Remote Control Transmitter

  Channels	3
  Wireless Range	131' / 40 m
  Radio Frequency	433 MHz

  Battery Type	1 x PX28

  Dimensions	2.2 x 2.5 x 1.9" / 5.5 x 6.3 x 4.8 cm (Transmitter)
  Weight	1.9 oz / 53.9 g

  Box Dimensions (LxWxH)	7.9 x 5.75 x 3.15"

• 4191 Deluxe Holdall VIII Case with Wheels (Black)

  Interior Dimensions	31 x 14 x 10" / 78.7 x 35.6 x 25.4 cm

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap 1 x Handle
  Casters	2

  Box Dimensions (LxWxH)	36.5 x 17.0 x 14.5"
