User Manual for Hensel F-Spot Fresnel Flash Head with 20 Pin Plug Click to enlarge the picture
Contents of the user manual for the Hensel F-Spot Fresnel Flash Head with
- Product category: Power Pack Heads Hensel
- Brand: Hensel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hensel Power Pack Heads
 |
User manual for the Hensel F-Spot Fresnel Flash Head with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hensel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hensel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hensel product will considerably shorten its lifespan!
|

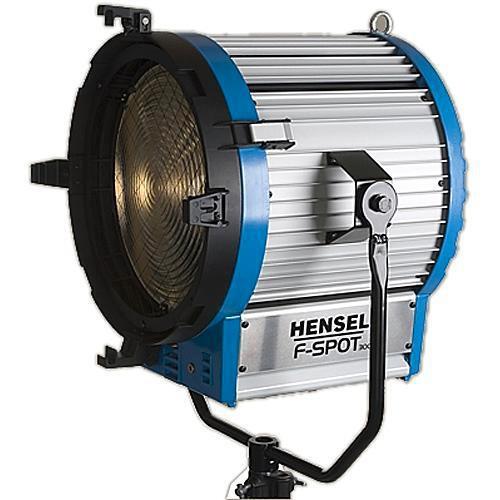

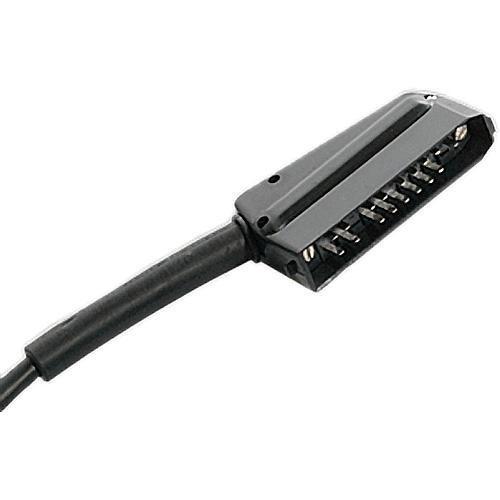

Product description This is a Hensel F-Spot Fresnel with a 20 Pin (Pole) plug. This is a classic Fresnel light -- it produces a bright light with very sharp shadows when fired from your Hensel Vela and Tria series power packs. The beam spread can be adjusted from 13 - 64°. It is fan-cooled and has a 650W modeling light. This flash head has a 16' (5 m) head cable that terminates with a 20 pin plug that fits the Tria series power packs. Use the included 4 leaf barndoor set to adjust the shape of the light emitted. - Modeling Light
- 650W modeling light has a switch on the flash head
- Classic Fresnel
-
- 11.8" (30cm) Fresnel lens
- Focus control of intense light
- Junior Mount
- 1-1/8" (28mm) mount for larger light stands

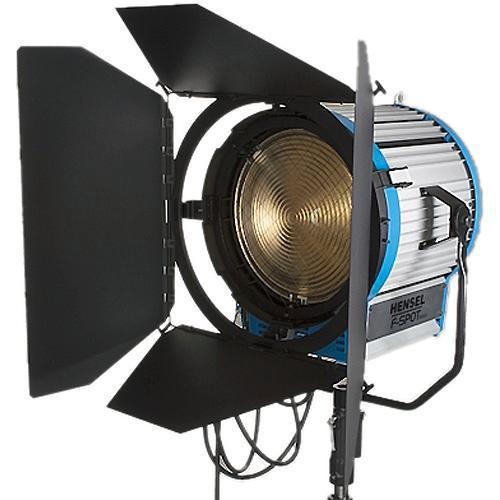

In the Box Hensel F-Spot Fresnel Flash Head with 20 Pin (Pole) Plug Flashtube 650W Modeling Light 4 Leaf Barndoor Set 16' (5 m) Head Cable with 20 pin connector Two Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hensel F-Spot Fresnel Flash Head with 20 Pin Plug in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHensel F-Spot Specs | Maximum Watt/Seconds | 3500 | | User Replaceable Flashtube | Yes | | Changeable Reflector | Not Applicable | | Circuit Protection | In pack of choice | | Cable Length | 15' (6 m) with 20 pin connector | | Modeling Light Wattage | 650 | | Modeling Light On/Off Switch | Yes | | Protective Glass Dome | Lens | | Fan Cooled | Yes | | Dimensions | Not Specified by Manufacturer | | Weight | 39.6 lbs (18kg) with barndoors | | | | Package Weight | 44.4 lb | | Box Dimensions (LxWxH) | 24.2 x 23.6 x 23.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
