User Manual for Hensel Integra 250W s Plus Freemask Monolight Click to enlarge the picture
Contents of the user manual for the Hensel Integra 250W s Plus Freemask
- Product category: Monolights Hensel
- Brand: Hensel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hensel Monolights
|
User manual for the Hensel Integra 250W s Plus Freemask contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hensel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hensel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hensel product will considerably shorten its lifespan!
|

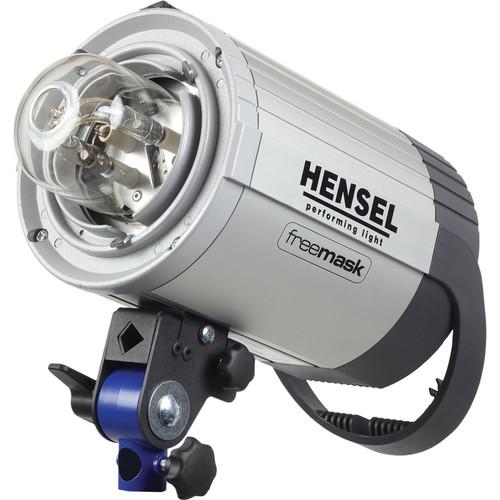

Product description The Hensel Integra 250W/s Plus Freemask Monolight provides the control and power photographers require, whether it's commercial, portrait, wedding, or industrial photography. Virtually anywhere in the world the work takes you, you'll be able to use this multi-voltage monolight by simply changing the modeling light and plug adapter (both available separately). This Integra Plus 250W/s head offers a six f/stop range, down to 1/32 power, which makes it perfect for exacting digital camera work. Recycle time is a lightning-fast 1.3 seconds at full power with the short flash durations necessary for stopping action. The head also features a built-in, 4-channel Hensel radio slave receiver, compatible with the Hensel's radio and Freemask transmitters (available separately). This built-in Freemask technology is used like chroma keying to create composite images. Used with the required, optional Freemask transmitter, the head automatically varies the flash output in sequential exposures to create a mask. - Six F/Stop Range
- Adjustable in 0.1 stop clicks, on the illuminated front panel, from full to 1/32 power output
- Freemask Technology
- Freemask is a studio technology developed by Hensel together with Schoepe GmbH which varies the flash output in short sequential exposures to create layer masks with minimal post-processing. (Requires optional Freemask transmitter)
- Built in Radio Slave
-
- Allows wireless control of firing and power levels, with optional Hensel radio slave transmitter
- Optical slave is also built in
- 300 Watt Modeling Light with Power-saving Autoreduction
- The smart 300W modeling light goes far beyond conventional full and proportional power operation. An electronic system continuously monitors the unit's operation, ensuring that after an adjustable time (5 - 90 min.), the modeling light power is reduced to a preset value. As soon as the unit is reactivated, the previous value is restored.
- User Replaceable Flashtube
- Economical and easy to replace
- Fan-Cooled
- Protection during heavy applications
- Flash Check
-
- Dims the modeling light while charging the capacitors
- When the capacitors are at 100%, the modeling light relights
- Protection Glass Dome
-
- Surrounds the flashtube for an added margin of safety
- Optional glass domes available for extra control over color temperature of the flash
- Compact Ergonomic Design
-
- Strong cylindrical aluminum housing with aluminum cast reflector mounting
- Built-in handle
- Shifting pan-tilt support
- Improved reflector mount
In the Box Hensel Integra 250W/s Plus Freemask Monolight UV Flashtube JCD120300 Lamp - 300 Watts/120 Volts Clear Glass Dome for Hensel Integra 500TRA & 1500 Sync Cord with Phone Jack (16.4') AC Power Cable Protection Cap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hensel Integra 250W s Plus Freemask Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHensel Integra Plus 250 Specs | | | Maximum Power | 250 Ws | | Power Control | 6 Stops in 1/10-Stop Increments | | Flash Duration | t.5: 1/2380 Sec
t.1: 1/465 Sec | | Recycle Time | 0.3 to 1.3 Sec () | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Hensel | | | | Type | Tungsten | | Wattage | 300 W | | Control Modes | Autoreduction, Full On, Off, Proportional | | | | AC Input Voltage | 110to240 VAC, 50 / 60 Hz | | Circuit Protection | Fuse | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 9.0 x W: 5.9 x L: 13.0" / H: 23.0 x W: 15.0 x L: 33.0 cm | | Weight | 6.08 lb / 2.75 kg | | | | Package Weight | 10.6 lb | | Box Dimensions (LxWxH) | 19.5 x 12.0 x 9.5" |
