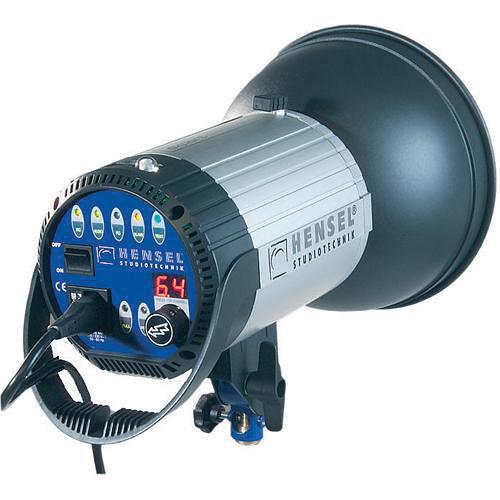

Product description The Hensel Integra 500 3 Light Kit with Stands is built around a 500Ws monolight that provides the control, power and the quality features that photographers, no matter what their field, desire. Start with its flexible power setting allowing precise output selection from its 500Ws capacity over 6 f/stops in 1/10 stop increments. Settings are visible on an easy-to-read LED screen. The powerful 300W modeling light is strong enough for the multi-tasking image maker to shoot video and for strobe work it can be set to proportional to preview the effect of the flash. Besides fan-cooling, which lengthens the life of the flash tube and modeling lamp, as well as the unit's circuitry, an electronic system continuously monitors the unit's operation, ensuring that after a user-adjustable interval (5-90 min), the modeling light power is reduced to a preset value. As soon as the unit is reactivated, the previous value is restored. The Integra 500 boasts short flash durations of 1/500 sec. (t0.1) and a very short recycling time of only 2.2 seconds at full power. The durable, extruded aluminum cylindrical body features a built-in ergonomic handle and improved quick-action reflector mount. The stand mount, fixed on previous models, now slides along the body so that the correct fulcrum point can be found to counterbalance front-heavy accessories like large softboxes. Other features include visual and audible recycling alerts, a user replaceable flash tube and a protective dome. The kit comes with 3 Integra 500 monolights, a 7" reflector, 2 umbrellas, 2 umbrella reflectors, 3 Alu III light stands, a sync cord, and a wheeled kit case. - Six Stop Range
- Adjustable in 0.1 stop clicks, on the illuminated front panel, from full to 1/32 power output
- Optical Slave
- Built-in optical slave allows wireless firing without a sync cord
- 300W Modeling Light
- The smart 300W modeling light goes far beyond conventional full and proportional power operation. An electronic system continuously monitors the unit's operation, ensuring that after user-adjustable time (5 - 90 min.), the modeling light power is reduced to a preset value. As soon as the unit is reactivated, the previous value is restored.
- User Replaceable Flash Tube
- Economical and easy to replace flash tube minimizes downtime
- Fan-Cooled
- Fan cooling lengthens the life of the flash tube, modeling light and the flash head's electronics
- Flash Check
-
- Dims the modeling light while charging the capacitors
- When the capacitors are at 100%, the modeling light relights
- Protective Glass Dome
-
- Surrounds the flash tube for added safety
- Optional glass domes available for control over color temperature of the flash
- Compact Ergonomic Design
-
- Strong cylindrical aluminum housing with aluminum cast reflector mounting
- Built-in handle
- Shifting pan-tilt support balances heavy accessories

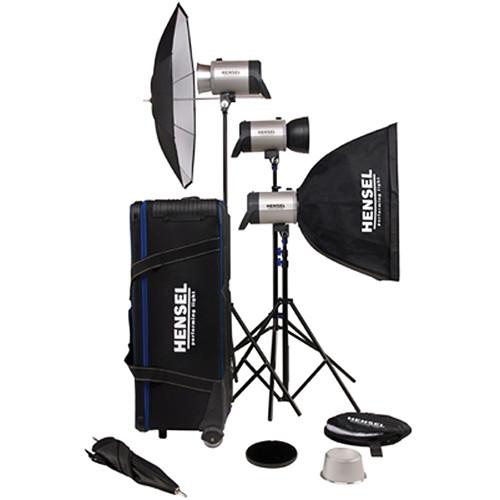

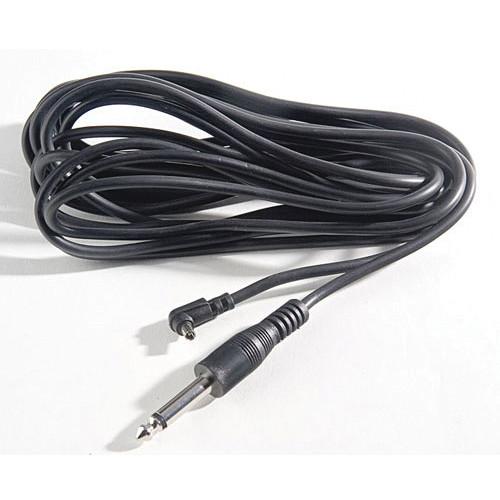

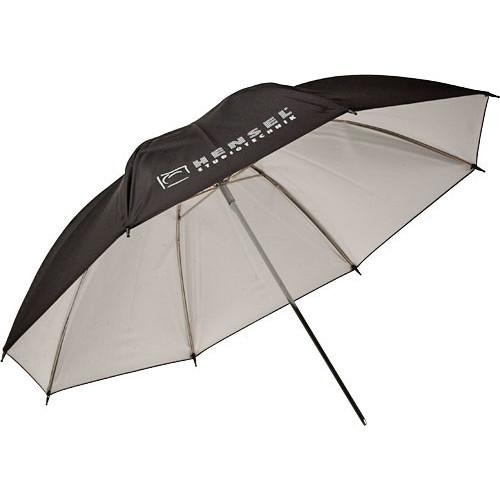

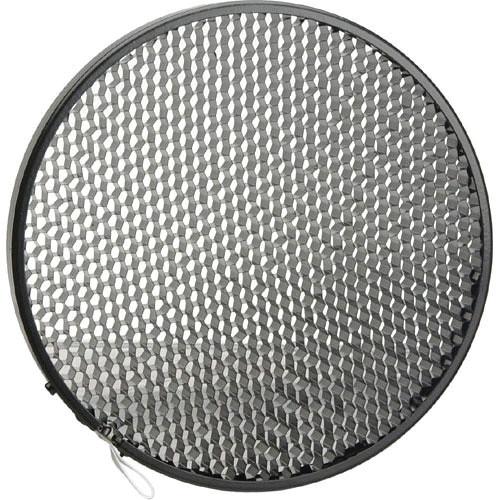

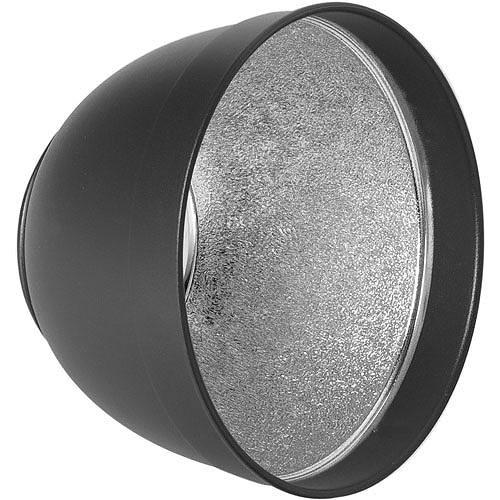

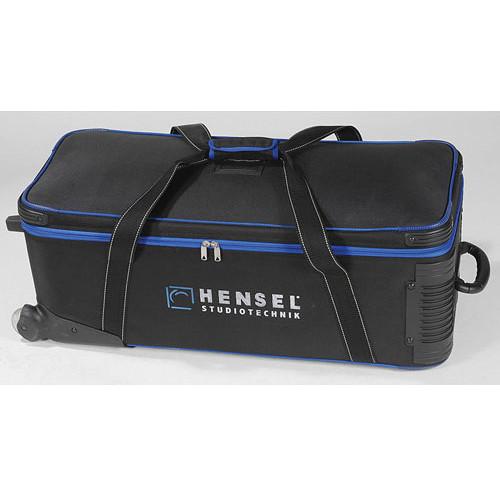

In the Box Hensel Integra 500 3 Light Kit with Stands 3 x Integra 500 Heads 3 x UV Flashtube uecteucqyfwbrffqvevtcxeuyaefvz 3 x 300W/120V Integra Modeling Light 3 x Clear Glass Dome for Hensel Integra 500TRA & 1500 Sync Cord with Phone Jack (16.4') 2 x 16' Power Cord for Integra Flash Heads / Pro Mini 2 x Umbrella Flood Reflector for Hensel 3 x Protective Flash Tube Covers 7" Grid Reflector for Hensel 2 x Economy Umbrella - White with Black Backing - 32" 3 x Alu Stand III Light Stand (6.9') 4191 Deluxe Holdall VIII Case with Wheels (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hensel Integra 500 3 Light Kit with Stands in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHensel Integra 500 Specs | | | Maximum Power | 16 to 500 Ws | | Power Control | 6 Stops in 1/10-Stop Increments | | Flash Duration | t.1: 1/1600 to 1/500 Sec | | Recycle Time | 2.5 Sec (Full Power) | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Hensel | | | | Type | Tungsten | | Wattage | 300 W | | | | AC Input Voltage | 110to240 VAC, 50 / 60 Hz | | Circuit Protection | Fuse | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 9.0 x W: 5.9 x L: 13.0" / H: 23.0 x W: 15.0 x L: 33.0 cm | | Weight | 6.4 lb / 2.9 kg | | | | Package Weight | 59.2 lb | | Box Dimensions (LxWxH) | 38.0 x 17.0 x 15.0" |
