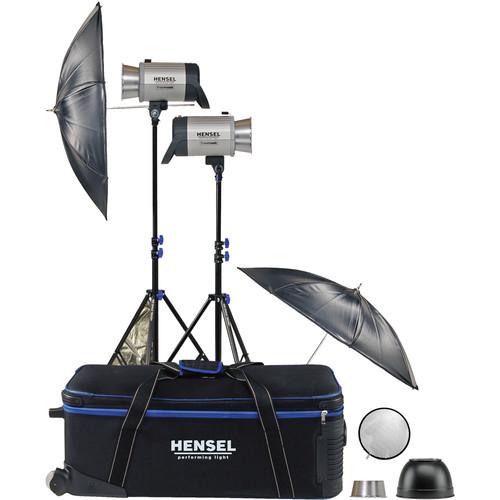

User Manual for Hensel Integra 500 Plus Freemask 2 Light Kit Click to enlarge the picture
Contents of the user manual for the Hensel Integra 500 Plus Freemask 2
- Product category: Monolights Hensel
- Brand: Hensel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hensel Monolights
|
User manual for the Hensel Integra 500 Plus Freemask 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hensel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hensel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hensel product will considerably shorten its lifespan!
|
Product description The Hensel Integra 500 Plus Freemask 2 Light Kit provides the control and power most photographers require, whether it's commercial, portrait, wedding, or industrial photography. The kit is built around 2 Integra Plus 500W/s multi-voltage monolights, which can work anywhere in the world there's electricity, by simply swapping out the modeling lights and plug adapters (both available separately). This model offers a six f/stop Range, down to 1/32 power, which makes it perfect for photographers using digital cameras. It also features a built-in, 4-channel Hensel radio slave receiver, compatible with the Hensel Radio Slave Trigger, which is available separately. This head includes Freemask technology which is used like chroma keying to composite images. Used with the required, optional Freemask transmitter, the head automatically varies the flash output in sequential exposures to create a mask. This comprehensive kit includes the 2 heads, 8.0' aluminum stands, umbrellas, 7" grid reflector, 30° grid, sync cords, and a wheeled soft kit case. - Integra Plus 500W/s Monolight with FREEMASK The Integra Plus 500W/s Monolight with FREEMASK provides the control and power most photographers require, whether it's commercial, portrait, wedding, or industrial photography. The Hensel Integra Plus is a 500W/s multi-voltage monolight, which makes it useful worldwide, with a simple changing of the modeling light and plug adapter (both available separately).This model offers a 6-stop range down to 1/32 power, which makes it perfect for photographers using digital cameras. It also features a built-in, 4-channel Hensel Strobe Wizard radio slave receiver, compatible with the Hensel Radio Slave Trigger, which is available separately. This head includes FREEMASK technology which is used like chroma keying to composite images. Used with the required, optional FREEMASK transmitter, the head automatically varies the flash output in sequential exposures to create a mask.
- 6-Stop Range
- Adjustable in 0.1 stop clicks on the illuminated front panel, from full to 1/32 power output
- FREEMASK Technology
- FREEMASK is a studio technology developed by Hensel together with Schoepe GmbH which varies the flash output in short sequential exposures to create layer masks with minimal post-processing. (Requires optional FREEMASK transmitter)
- Built in Strobe Wizard Radio Receiver
-
- Allows wireless control of firing and power levels, with optional Hensel radio slave transmitter
- Optical slave is also built in
- 300 Watt Modeling Light with Power-saving Autoreduction
- The smart 300W modeling light goes far beyond conventional full and proportional power operation. An electronic system continuously monitors the unit's operation, ensuring that after an adjustable time (5 - 90 min.), the modeling light power is reduced to a preset value. As soon as the unit is reactivated, the previous value is restored.
- User Replaceable Flashtube
- Economical and easy to replace
- Fan-Cooled
- Protection during heavy applications
- Flash Check
-
- Dims the modeling light while charging the capacitors
- When the capacitors are at 100%, the modeling light relights
- Protection Glass Dome
-
- Surrounds the flashtube for an added margin of safety
- Optional glass domes available for extra control over color temperature of the flash
- Compact Ergonomic Design
-
- Strong cylindrical aluminum housing with aluminum cast reflector mounting
- Built-in handle
- Shifting pan-tilt support
- Strobe Wizard Plus Remote Control Transmitter The Hensel Strobe Wizard Plus Radio Slave System combines radio triggering, model light activation, and flash power control into one single compact device (with Hensel strobes that support these features). The availability of 3 channels prevents interference between different work groups within the same studio. On channel #4 (master channel) all devices can be controlled simultaneously, regardless of the channel they are set to. In addition, this improved Plus version has a maximum sync speed of 1/250th. The transmitter is small, light and easily mounts into a hot shoe. In addition, it also comes supplied with a short sync cord (sub-mini connection) for PC sync connection. Note: The Plus version can only be operated with an external Strobe Wizard Plus receiver (#3951), or with internal receivers build into Integra Plus monolights having a flash arrow printed on the dialer for flash setting. Also works with the built-in receiver of the Porty Premium Plus (#4954), not with the Porty Premium AS/RC (#4953).
- This system supports the possibility of remotely adjusting flash power and activating the modeling light via the Up/Down buttons on heads equipped with built-in receivers.
- A maximum sync speed of 1/250th second allows for shorter flash durations.
- Protected by a solid plastic housing.
- A low sync voltage makes it ideally suited for digital cameras.
- Receiver has 1/4" (6.3mm) phone plug.
- Umbrella Flood Reflector for Hensel This reflector is designed specifically for use with an umbrella, while mounted to a Hensel flash head. It provides the proper beam spread for optimum, even distribution of the light into the umbrella.
- Economy Umbrella - White with Black Backing - 32" The Hensel 32" Economy Umbrella has a white interior, and black backing. It softens and broadens the light from any strobe source. The black backing prevents stray light from passing through the umbrella.
- 30° Honeycomb Grid for 7" Reflector This Honeycomb Grid provides a beam spread of 30° when mounted to a Hensel 7" reflector. Grids are essential accessories for any lighting system. These devices alter the shape and intensity of the light output from your flash heads. Consider them as a painter would a brush or a sculptor would a knife or chisel. Use of a grid will result in a small circle of light when it is attached to the front of your light source. The size of the circle of light will be determined by the density of the honeycomb, its thickness, and the distance of the subject.
- Softbag VII De Luxe (Black) The black Softbag VII De Luxe from Hensel is a bag designed to carry a Hensel lighting kit with a pack and two heads plus accessories. It has adjustable dividers that can make three compartments. In the cover there is a net pocket for storage of small parts; on the outside of the bag there is a large pocket for accessories. The bag is transported by dual straps with overlapping grip, pull handle opposite the wheels and in-line skate wheels.
- Adjustable dividers partition the bag into three internal compartments
- Pockets
-
- Large front pocket for accessories
- Interior lid mesh pocket for storage of small parts
- Carrying options
-
- Dual straps with overlapping grip
- Pull handle opposite wheels
- In-line skate wheels
- Compatible with Hensel power pack with two heads and accessories
In the Box Bundle Items 2 x Integra Plus 500W/s Monolight with FREEMASK usfazfxdfqzfd - JCD120300 Lamp - 300 Watts/120 Volts
- Clear Glass Dome for Hensel Integra 500TRA & 1500
- Sync Cord with Phone Jack (16.4')
Strobe Wizard Plus Remote Control Transmitter - PX28 (544L) 6v Lithium Battery
- Short Sync Cord (Sub-Mini)
2 x Umbrella Flood Reflector for Hensel 2 x Economy Umbrella - White with Black Backing - 32" 30° Honeycomb Grid for 7" Reflector Softbag VII De Luxe (Black)
Also Includes - 2 x 8.0' Air-cushioned Stand
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hensel Integra 500 Plus Freemask 2 Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Integra Plus 500W/s Monolight with FREEMASK
| | | Maximum Power | 16 to 500 Ws | | Power Control | 6 Stops in 1/10-Stop Increments | | Flash Duration | t.5: 1/1600 Sec (Full Power) | | Recycle Time | 0.5 to 2.2 Sec () | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Hensel | | | | Type | Tungsten | | Base Type | G6.35 | | Wattage | 300 W | | | | AC Input Voltage | 110to230 VAC, 50 / 60 Hz | | Circuit Protection | Fuse | | Fuse | 4 A | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 9.0 x W: 5.9 x L: 13.0" / H: 23.0 x W: 15.0 x L: 33.0 cm | | Weight | 6.4 lb / 2.9 kg | | | | Box Dimensions (LxWxH) | 19.7 x 12.2 x 9.5" | - Strobe Wizard Plus Remote Control Transmitter
| | | Channels | 3 | | Wireless Range | 131' / 40 m | | Radio Frequency | 433 MHz | | | | Dimensions | 2.2 x 2.5 x 1.9" / 5.5 x 6.3 x 4.8 cm (Transmitter) | | Weight | 1.9 oz / 53.9 g | | | | Box Dimensions (LxWxH) | 7.9 x 5.75 x 3.15" | - Umbrella Flood Reflector for Hensel
| | | Box Dimensions (LxWxH) | 6.6 x 6.1 x 3.5" | - Economy Umbrella - White with Black Backing - 32"
| Size | 32.0" / 81.3 cm | | Interior | White | | Exterior | Black | | | | Box Dimensions (LxWxH) | 22.1 x 3.1 x 0.9" | - 30° Honeycomb Grid for 7" Reflector
| | | Box Dimensions (LxWxH) | 7.5 x 7.5 x 0.9" | - Softbag VII De Luxe (Black)
| | | Interior Dimensions | 30.7 x 11.4 x 9.4" / 78 x 29 x 24 cm | | | | Closure Type | Zipper | | Carry and Transport Options | 2 x Connecting Handstrap
1 x Handle | | Casters | 2 | | Exterior Dimensions (W x H x D) | 35.4 x 13.4 x 13.0" / 90 x 34 x 33 cm | | Weight | 15.4 lb / 7 kg | | | | Box Dimensions (LxWxH) | 36.0 x 14.5 x 13.25" |
