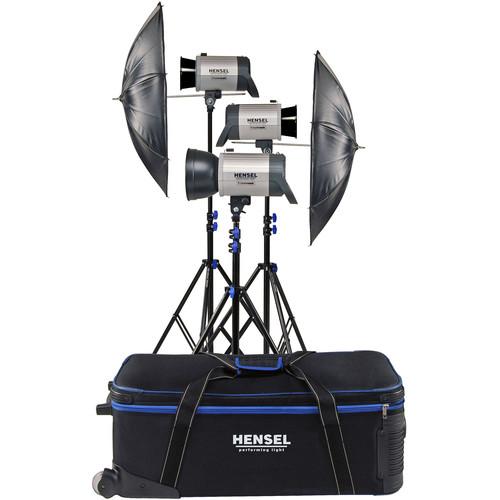

Hensel Integra 500 Plus Freemask 3-Light

User Manual for Hensel Integra 500 Plus Freemask 3-Light Kit

• Product category: Monolights Hensel
• Brand: Hensel
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hensel Monolights

Product description

• Integra Plus 500W/s Monolight with FREEMASK The Integra Plus 500W/s Monolight with FREEMASK provides the control and power most photographers require, whether it's commercial, portrait, wedding, or industrial photography. The Hensel Integra Plus is a 500W/s multi-voltage monolight, which makes it useful worldwide, with a simple changing of the modeling light and plug adapter (both available separately).This model offers a 6-stop range down to 1/32 power, which makes it perfect for photographers using digital cameras. It also features a built-in, 4-channel Hensel Strobe Wizard radio slave receiver, compatible with the Hensel Radio Slave Trigger, which is available separately. This head includes FREEMASK technology which is used like chroma keying to composite images. Used with the required, optional FREEMASK transmitter, the head automatically varies the flash output in sequential exposures to create a mask.
  6-Stop Range
  • Adjustable in 0.1 stop clicks on the illuminated front panel, from full to 1/32 power output
  FREEMASK Technology
  • FREEMASK is a studio technology developed by Hensel together with Schoepe GmbH which varies the flash output in short sequential exposures to create layer masks with minimal post-processing. (Requires optional FREEMASK transmitter)
  Built in Strobe Wizard Radio Receiver
  • Allows wireless control of firing and power levels, with optional Hensel radio slave transmitter
  • Optical slave is also built in
  300 Watt Modeling Light with Power-saving Autoreduction
  • The smart 300W modeling light goes far beyond conventional full and proportional power operation. An electronic system continuously monitors the unit's operation, ensuring that after an adjustable time (5 - 90 min.), the modeling light power is reduced to a preset value. As soon as the unit is reactivated, the previous value is restored.
  User Replaceable Flashtube
  • Economical and easy to replace
  Fan-Cooled
  • Protection during heavy applications
  Flash Check
  • Dims the modeling light while charging the capacitors
  • When the capacitors are at 100%, the modeling light relights
  Protection Glass Dome
  • Surrounds the flashtube for an added margin of safety
  • Optional glass domes available for extra control over color temperature of the flash
  Compact Ergonomic Design
  • Strong cylindrical aluminum housing with aluminum cast reflector mounting
  • Built-in handle
  • Shifting pan-tilt support
• 7" Grid Reflector for Hensel This is a reflector that will fit all Hensel flash heads. It can accept round, 7" grid spots by Hensel, or Delta, without any other attachments to add.
• Economy Umbrella - White with Black Backing - 32" The Hensel 32" Economy Umbrella has a white interior, and black backing. It softens and broadens the light from any strobe source. The black backing prevents stray light from passing through the umbrella.
• Umbrella Flood Reflector for Hensel This reflector is designed specifically for use with an umbrella, while mounted to a Hensel flash head. It provides the proper beam spread for optimum, even distribution of the light into the umbrella.
• 4191 Deluxe Holdall VIII Case with Wheels (Black) The Hensel 4191 Deluxe Holdall VIII Case with Wheels (Black) (Black) is a bag designed to carry Hensel lighting kits with packs and heads, plus accessories. It has adjustable dividers that can make four compartments. In the cover there is a net pocket for storage of small parts; on the outside of the bag there is a large pocket for accessories. The bag is transported by dual straps with overlapping grip, pull handle opposite the integrated in-line skate wheels.
  • Adjustable dividers partition the bag into four internal compartments
  Pockets
  • • Large front pocket for accessories
    • Interior lid mesh pocket for storage of small parts
  Carrying options
  • • Dual straps with overlapping grip
    • Pull handle opposite wheels
    • In-line skate wheels
  • Compatible with Hensel power packs, heads and accessories
• Strobe Wizard Plus Remote Control Transmitter The Hensel Strobe Wizard Plus Radio Slave System combines radio triggering, model light activation, and flash power control into one single compact device (with Hensel strobes that support these features). The availability of 3 channels prevents interference between different work groups within the same studio. On channel #4 (master channel) all devices can be controlled simultaneously, regardless of the channel they are set to. In addition, this improved Plus version has a maximum sync speed of 1/250th. The transmitter is small, light and easily mounts into a hot shoe. In addition, it also comes supplied with a short sync cord (sub-mini connection) for PC sync connection. Note: The Plus version can only be operated with an external Strobe Wizard Plus receiver (#3951), or with internal receivers build into Integra Plus monolights having a flash arrow printed on the dialer for flash setting. Also works with the built-in receiver of the Porty Premium Plus (#4954), not with the Porty Premium AS/RC (#4953).
  • This system supports the possibility of remotely adjusting flash power and activating the modeling light via the Up/Down buttons on heads equipped with built-in receivers.
  • A maximum sync speed of 1/250th second allows for shorter flash durations.
  • Protected by a solid plastic housing.
  • A low sync voltage makes it ideally suited for digital cameras.
  • Receiver has 1/4" (6.3mm) phone plug.
• Integra 2 Light Mini 600 Kit Hensel products are widely renowned for providing professional features and performance at a reasonable price. The Hensel Integra 2 Light Mini 600 Kit is a great introduction to the Hensel family of products or an excellent addition to your arsenal of lighting gear.The compact Mini 600 has brains as well as brawn. Backing up an impressive 600W/s of power are convenience features that elevate it from being just another flash head to a professional lighting tool. But what good is power if you can't deliver it when it's needed? The Integra Mini 600 recycles in a lightening 0.2 - 1.7 sec. And it does it at flash durations as short as 1/1,100 sec., so that every fleeting gesture is frozen in a dance performance, for example. And what's power without proportion? The Integra Mini 600 offers a 6 f/stop range, down to 1/32 power in 0.1 stop increments, which makes it perfect for photographers using digital cameras. Finally, the Integra Mini 600 is a multi-voltage monolight, which makes it useable almost anywhere in the world that has electricity. Its small size and weight mean that you'll want to take it everywhere.The kit includes 2 flash heads, stands, 300W modeling lamps, power cords and a 4 channel radio transmitter and receiver kit. A 7.0" grid reflector, umbrella reflector and a 32" black-backed white umbrella are also provided. It all fits in an included sturdy rolling kit case.

• UV Flashtube

• JCD120300 Lamp - 300 Watts/120 Volts

• Clear Glass Dome for Hensel Integra 500TRA & 1500

• Sync Cord with Phone Jack (16.4')

• AC Power Cable

• Protection Cap

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• 1-Year Warranty

• PX28 (544L) 6v Lithium Battery

• Short Sync Cord (Sub-Mini)

• Limited 2-Year Warranty

2 x
• Integra 600W/s Mini 600 Monolight

• 7" Grid Reflector for Hensel

• Umbrella Flood Reflector for Hensel

2 x
• Integra Aluminum Light Stand (6.7')

• 300W/120V Integra Modeling Light

• Economy Umbrella - White with Black Backing - 32"

• Sync Cord with Phone Jack (16.4')

• Softbag VII De Luxe (Black)

• Four Channel Radio Transmitter and Receiver Kit

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Integra Plus 500W/s Monolight with FREEMASK

  Maximum Power	16 to 500 Ws
  Power Control	6 Stops in 1/10-Stop Increments
  Flash Duration	t.5: 1/1600 Sec (Full Power)
  Recycle Time	0.5 to 2.2 Sec ()
  Flash Ready Indicator	Visual
  Reflector	Changeable
  Accessory Fitting Type	Hensel

  Type	Tungsten
  Base Type	G6.35
  Wattage	300 W

  Sync Type	Optical, Radio

  AC Input Voltage	110to230 VAC, 50 / 60 Hz
  Circuit Protection	Fuse
  Fuse	4 A

  Display	None
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	H: 9.0 x W: 5.9 x L: 13.0" / H: 23.0 x W: 15.0 x L: 33.0 cm
  Weight	6.4 lb / 2.9 kg

  Box Dimensions (LxWxH)	19.7 x 12.2 x 9.5"

• 7" Grid Reflector for Hensel

  Box Dimensions (LxWxH)	8.0 x 7.65 x 5.85"

• Economy Umbrella - White with Black Backing - 32"

  Size	32.0" / 81.3 cm
  Interior	White
  Exterior	Black

  Box Dimensions (LxWxH)	22.1 x 3.1 x 0.9"

• Umbrella Flood Reflector for Hensel

  Box Dimensions (LxWxH)	6.6 x 6.1 x 3.5"

• 4191 Deluxe Holdall VIII Case with Wheels (Black)

  Interior Dimensions	31 x 14 x 10" / 78.7 x 35.6 x 25.4 cm

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap 1 x Handle
  Casters	2

  Box Dimensions (LxWxH)	36.5 x 17.0 x 14.5"

• Strobe Wizard Plus Remote Control Transmitter

  Channels	3
  Wireless Range	131' / 40 m
  Radio Frequency	433 MHz

  Battery Type	1 x PX28

  Dimensions	2.2 x 2.5 x 1.9" / 5.5 x 6.3 x 4.8 cm (Transmitter)
  Weight	1.9 oz / 53.9 g

  Box Dimensions (LxWxH)	7.9 x 5.75 x 3.15"

• Integra 2 Light Mini 600 Kit

  Box Dimensions (LxWxH)	36.0 x 14.7 x 13.8"
