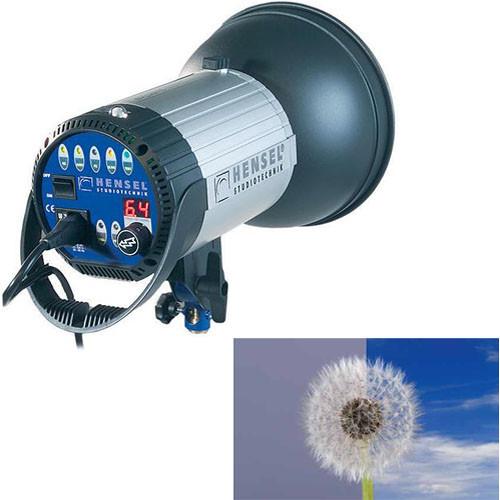

Product description The Integra Plus 500W/s Monolight with FREEMASK provides the control and power most photographers require, whether it's commercial, portrait, wedding, or industrial photography. The Hensel Integra Plus is a 500W/s multi-voltage monolight, which makes it useful worldwide, with a simple changing of the modeling light and plug adapter (both available separately).This model offers a 6-stop range down to 1/32 power, which makes it perfect for photographers using digital cameras. It also features a built-in, 4-channel Hensel Strobe Wizard radio slave receiver, compatible with the Hensel Radio Slave Trigger, which is available separately. This head includes FREEMASK technology which is used like chroma keying to composite images. Used with the required, optional FREEMASK transmitter, the head automatically varies the flash output in sequential exposures to create a mask. - 6-Stop Range
- Adjustable in 0.1 stop clicks on the illuminated front panel, from full to 1/32 power output
- FREEMASK Technology
- FREEMASK is a studio technology developed by Hensel together with Schoepe GmbH which varies the flash output in short sequential exposures to create layer masks with minimal post-processing. (Requires optional FREEMASK transmitter)
- Built in Strobe Wizard Radio Receiver
-
- Allows wireless control of firing and power levels, with optional Hensel radio slave transmitter
- Optical slave is also built in

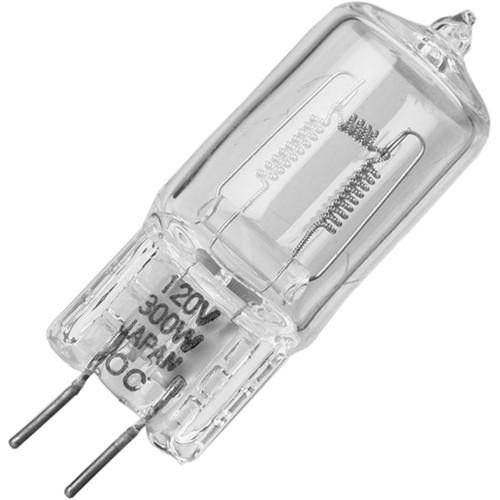

- 300 Watt Modeling Light with Power-saving Autoreduction
- The smart 300W modeling light goes far beyond conventional full and proportional power operation. An electronic system continuously monitors the unit's operation, ensuring that after an adjustable time (5 - 90 min.), the modeling light power is reduced to a preset value. As soon as the unit is reactivated, the previous value is restored.

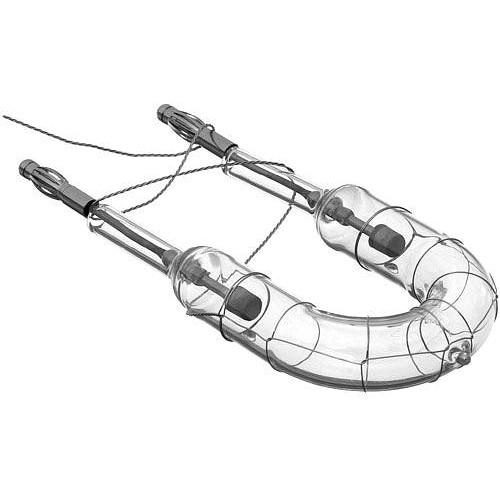

- User Replaceable Flashtube
- Economical and easy to replace
- Fan-Cooled
- Protection during heavy applications
- Flash Check
-
- Dims the modeling light while charging the capacitors
- When the capacitors are at 100%, the modeling light relights

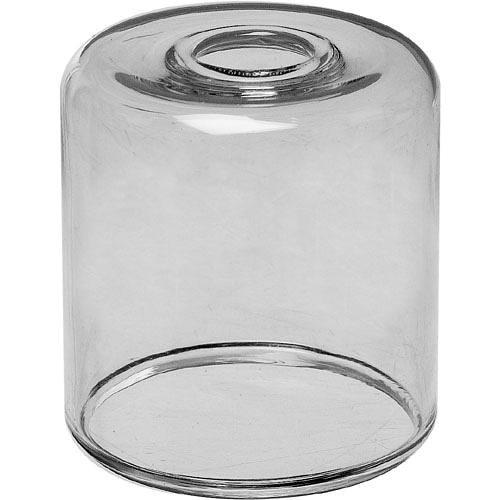

- Protection Glass Dome
-
- Surrounds the flashtube for an added margin of safety
- Optional glass domes available for extra control over color temperature of the flash
- Compact Ergonomic Design
-
- Strong cylindrical aluminum housing with aluminum cast reflector mounting
- Built-in handle
- Shifting pan-tilt support

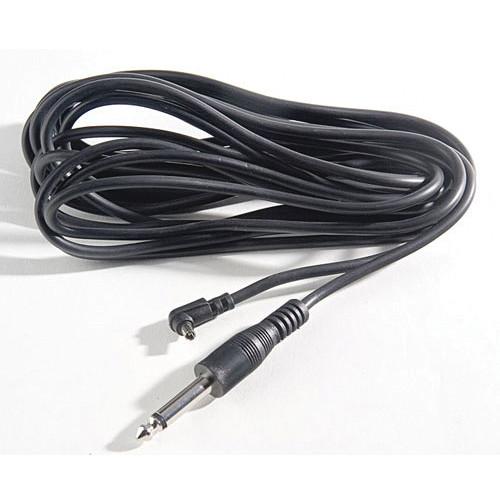

In the Box Hensel Integra Plus 500W/s Monolight with FREEMASK UV Flashtube JCD120300 Lamp - 300 Watts/120 Volts Clear Glass Dome for Hensel Integra 500TRA & 1500 Sync Cord with Phone Jack (16.4') xresyqzbvc AC Power Cable Protection Cap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hensel Integra Plus 500W s Monolight with FREEMASK in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHensel Plus 500 Specs | | | Maximum Power | 16 to 500 Ws | | Power Control | 6 Stops in 1/10-Stop Increments | | Flash Duration | t.5: 1/1600 Sec (Full Power) | | Recycle Time | 0.5 to 2.2 Sec () | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Hensel | | | | Type | Tungsten | | Base Type | G6.35 | | Wattage | 300 W | | | | AC Input Voltage | 110to230 VAC, 50 / 60 Hz | | Circuit Protection | Fuse | | Fuse | 4 A | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 9.0 x W: 5.9 x L: 13.0" / H: 23.0 x W: 15.0 x L: 33.0 cm | | Weight | 6.4 lb / 2.9 kg | | | | Package Weight | 10.8 lb | | Box Dimensions (LxWxH) | 19.7 x 12.2 x 9.5" |
