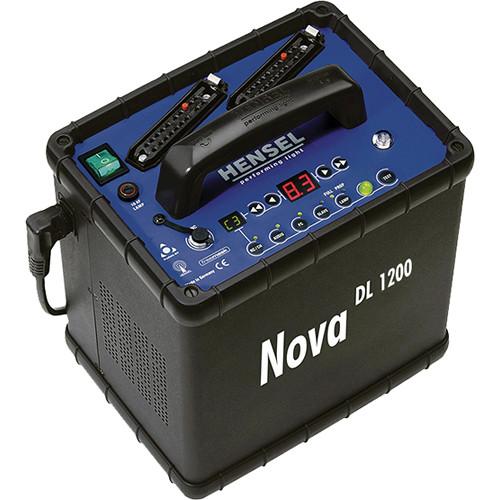

User Manual for Hensel Nova DL 1200 Power Pack Click to enlarge the picture
Contents of the user manual for the Hensel Nova DL 1200 Power Pack
- Product category: Power Packs Hensel
- Brand: Hensel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hensel Power Packs
|
User manual for the Hensel Nova DL 1200 Power Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hensel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hensel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hensel product will considerably shorten its lifespan!
|
Product description The Hensel Nova DL 1200 Generator is made for photographers who need power coupled with very fast recycling and intuitive control features. The Nova DL features two flash head outlets with a large 7 segment digital readout that displays power variations across 8 stops in 1/10th stop increments. The symmetrical power distribution allows you to pump full power from a single channel for large light banks or assign it to 2 discrete channels. Conversely, you can apportion the power asymmetrically in a 60/40, 70/30 or similar ratio. The Nova DL 1200 delivers its output in a very fast 0.6 seconds at full power and as fast as 0.3 sec at minimum power with flash durations as short as 1/2,480 to 1/4,500 sec for extreme stop-action shooting. For those all-day shooting sessions you'll be glad to know that a cooling fan kicks in to ensure consistency from shot to shot while protecting the pack's electronics. Triggering options include 1/4" phono plug for hardwiring, an optical slave, which responds to the firing of another flash, and radio triggering thanks to the Nova's built-in radio receiver. The receiver is compatible with Hensel Strobe Wizard Plus, Freemask and Profoto Air Sync transmitters, as well as Profoto's Air Remote which offers power and modeling light control as well as wireless triggering at distances up to 984'. Precision and control also extends to the modeling lights on compatible EH flash heads. Power can be set to Proportional, to preview the effect of the of your flash ratio, On, Off, Full power and User Selectable, which allows you to adjust the modeling lamp intensity independently of the selected flash power. And, speaking of power, the Nova DL 1200's power supply is self-seeking 100-240VAC, allowing you to use it anywhere in the world. When operating in a nominal 120V environment the pack handles 300W lamps and in a 230VAC electrical environment lamps as high as 650W. If you're mixing later power packs with older legacy packs you'll appreciate that Hensel continues their tradition of using essentially identical nomenclature and positioning of switches and controls throughout the system. You might say that Hensel moves forward with an eye on where they've been. - Construction Features
-
- Metal housing with sturdy rubber protection profile
- Durable foil surface with real buttons
- Unique, easy-to-carry handle with integrated spare fuses
- Built-in, protected radio antenna in handle
- Large 7 segment power display; right control LEDs show the settings
- Active cooling with silent fan
- Sync socket for standard 1/4" (6.3 mm) cord
- Modeling light up to 650W (230V), 300W (120V) for each socket
- USB connection for software updates
- Uses compact, lightweight flash heads with quick-change reflectors sockets for 20-pin long plugs
- Latest packs have essentially identical nomenclature and positioning of switches and controls as legacy packs
- Performance
-
- Fast flash recycling times; 0.6 sec. max. power
- Flash durations as short as 1/4,500 sec.
- Symmetrical and asymmetrical power distribution
- Adjustable 8.0 stop power range in 1/10 stop increments
- Unique recharge logic for gentle treatment of the rotating charging capacitors
- Very low sync voltage to protect digital cameras
- Freemask function: create cut-out masks in-camera while shooting for post-production background swapping
- Control
-
- Integrated radio remote receiver compatible with Hensel Strobe Wizard Plus, Freemask and Profoto Air
- Remote control of power adjustment, flash release, modeling light and stand-by with optional transmitter
- Highly reliable easy operation
- Capacity regulated power control
- Flash check - visual flash control
- APD, internal power dump when power is reduced
- Multi-voltage (110-230VAC) power supply
- On, Off, Full, User Selectable and Proportional modeling light control
- Very low sync voltage to protect digital cameras
In the Box Hensel Nova DL 1200 Power Pack Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hensel Nova DL 1200 Power Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHensel DL 1200 Specs | Rating | 1,200W/s | | Guide Number | 424 at 3.3' (1.0 m), ISO 100 with 12" (30.5 cm ) reflector | | Outlets | 2, With 20-pin long plugs | | Recycling Time | Maximum power: 0.6 sec.
Minimum power: 0.3 sec. | | Flash Duration | At minimum power t0.5:
With EH Pro Mini: 1/2,480 sec.
With EH Pro Mini Speed: 1/4,500 sec. | | Variable Power | 8.0 Stops in 1/10 stop increments
Symmetrical / asymmetrical | | Triggering | 1/4" (6.3 mm) phono plug, optical slave, built-in radio receiver
Requires Strobe Wizard Plus, Freemask, Profoto Air transmitter/transceiver for radio triggering | | Dimensions | 10.23 x 7.7 x 9.6" (26 x 19.5 x 24.5 cm) | | Weight | 14.5 lb (6.6 kg) |
