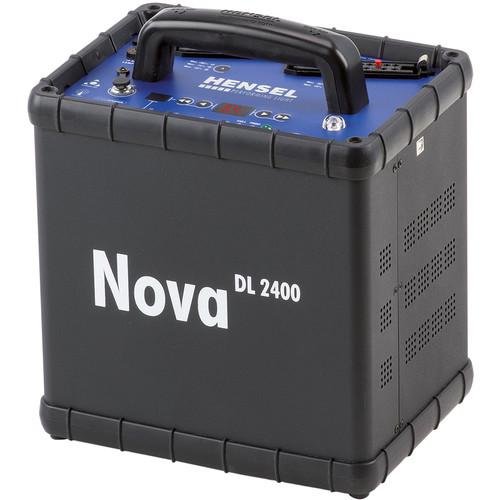

User Manual for Hensel Nova DL 2400 Power Pack with Wi-Fi Click to enlarge the picture
Contents of the user manual for the Hensel Nova DL 2400 Power Pack
- Product category: Power Packs Hensel
- Brand: Hensel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hensel Power Packs
|
User manual for the Hensel Nova DL 2400 Power Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hensel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hensel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hensel product will considerably shorten its lifespan!
|
Product description The Hensel Nova DL 2400 Power Pack is made for photographers who need power coupled with very fast recycling and intuitive control features. The Nova DL features two 20-pin long outlets with a large seven-segment digital readout that displays power variations across eight stops in 1/10th stop increments. The symmetrical power distribution allows you to pump full power from a single channel for large light banks or assign it to two discrete channels. Conversely, you can apportion the power asymmetrically in a 60/40, 70/30, or similar ratio. The Nova DL 2400 delivers its output in a very fast 1.1 seconds at full power and as fast as 0.25 seconds at minimum power with flash durations as short as 1/1500 to 1/3200 second for stop-action shooting. For those all-day shooting sessions, you'll be glad to know that a cooling fan kicks in to ensure consistency from shot-to-shot while protecting the pack's electronics. Triggering options include 1/4" phono plug for hardwiring; an optical slave, which responds to the firing of another flash, and radio triggering thanks to the Nova's built-in radio receiver. The receiver is compatible with Hensel Strobe Wizard Plus, Freemask, and Profoto Air Sync transmitters, as well as Profoto's Air Remote which offers power and modeling light control as well as wireless triggering at distances up to 984'. There's also a free app available that allows wireless Wi-Fi control of the pack from a smartphone or a tablet. Precision and control also extends to the modeling lights on compatible EH flash heads. Power can be set to Proportional, to preview the effect of your flash ratio; On; Off; Full power; and User Selectable, which allows you to adjust the modeling lamp intensity independently of the selected flash power. And regarding power, the Nova DL 2400's power supply is self-seeking 100-240 VAC, allowing you to use it anywhere in the world. When operating in a 120V electrical environment, the pack handles 300W lamps and in a 230 VAC electrical environment modeling lamps with wattage as high as 650W. If you're mixing later power packs with older legacy packs, you'll appreciate that Hensel continues their tradition of using essentially identical nomenclature and positioning of switches and controls throughout the system. -
- Metal housing with sturdy, protective rubber profile
- Special ergonomic handle bar for carrying, with integrated spare fuses
- Multi-voltage (110-240 VAC) high performance switch-mode power supply
- Fast flash recycle times
- Short flash duration
- Choice of symmetric or asymmetric power distribution via the "A" or "B" socket
- Integrated Profoto Air radio, Hensel Strobe Wizard Plus and FREEMASK receiver, switchable
- Radio remote functions: output adjustment, triggering, modeling light, standby. Full remote control with both systems
- Wi-Fi control of power, modeling light and triggering with smartphone or tablet via free app
- Integrated radio antenna for optimum protection
- Output adjustment in 1/10 f-stop increments
- Large 7-segment performance indicator
- Active cooling due to extremely quiet fan
- USB port for software updates
- Durable foil surface with tactile push-buttons
- Foil surface with clearly detectable imprint around the push-buttons for positive touch
- Hensel usage concept: name and position of switches and control units are generally the same as legacy units
- APD, internal power reduction when reducing power output
- Built-in photocell , separately switchable
- Synchronous socket for standard cord 1/4" (6.3mm)
- Test button for manual test firing
- Very low synchronous voltage protects digital cameras
- Thermal monitoring of performance electronics
In the Box Hensel Nova DL 2400 Power Pack with Wi-Fi Power Cable Sync Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hensel Nova DL 2400 Power Pack with Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHensel DL 2400 Specs | Power | 2400 Ws
f/180 @ 3.28' / 1.0 m, 1/60 sec ISO 100 with 12" / 30.5 cm reflector | | Recycle Time | Full Power: 1.1 sec
Minimum Power: 0.25 sec | | Flash Duration | T0.5
Maximum Power: 1/1500 sec
Minimum Power: 1/3200 sec | | Flash Variability | 8.0 f/stops in 1/10 stop increments | | Modeling Light | With flash head
300 W @ 120 VAC
650 W @ 230 VAC | | Voltage Stabilization | Yes | | Distribution | Asymmetrical or symmetrical | | Head Outlets | 2 x long 20-pin | | Flash Ready Indicator | LED, switchable audible | | Operating Voltage | 110-240 VAC, 50/60 Hz | | Built-in Slave Cell | Integrated Profoto Air radio, Hensel Strobe Wizard Plus, FREEMASK receiver, Wi-Fi via app | | Circuit Protection | Yes | | Fan Cooled | Yes | | Dimensions | 11.1 x 10.2 x 7.6" / 28.3 x 26 x 19.5 cm | | Weight | 19 lb / 8.6 kg |
