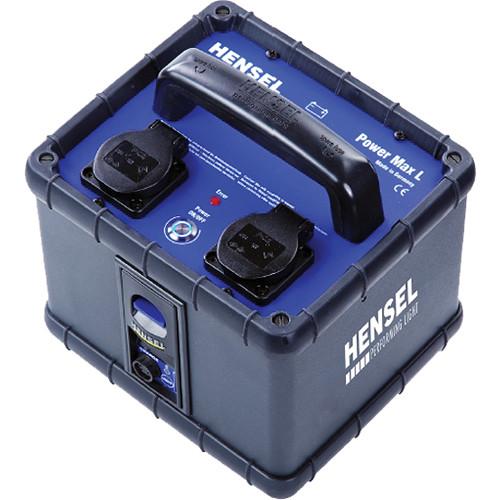

User Manual for Hensel Power Max L Lithium Mobile Power Supply Click to enlarge the picture
Contents of the user manual for the Hensel Power Max L Lithium Mobile
- Product category: DC Power Supplies Hensel
- Brand: Hensel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hensel DC Power Supplies
|
User manual for the Hensel Power Max L Lithium Mobile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hensel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hensel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hensel product will considerably shorten its lifespan!
|
Product description Hensel continues to employ the attributes of Lithium-ion technology with the introduction of the Power Max L Lithium Mobile Power Supply. Unlike a traditional power pack, this pure sine wave inverter provides 120VAC power from its twin outlets to Integra Mini, Mini Plus, Expert D, Speed Max and other compatible monolights rated up to 2,000W/s. It will also power Hensel's C Light, as well as other brands of continuous sources and devices such as wind machines with up to 500W electrical draw. Recycling times are roughly 50% longer than that of a flash plugged into an AC outlet. The Expert D 500 for example that normally recycles in 0.8 sec would recycle in a still fast 1.2 sec. The Power Max L runs on same Lithium-ion battery as the Porty L system, recharging from depletion in 2 hours in or out of the unit. The typical number of full power flashes from monolights is 880 @ 250W/s, 440 @ 500W/s 220 @ 1,000W/s, etc. The Power Max L ships with 1 battery in the unit. Separate purchase of the quick charger (BH# HEQCPL) is required for use. An optional all-inclusive kit with cases and strap is available. - Higher Performance Through Lithium Technology
-
- Faster, smaller, lighter, but with stronger output performance than units with lead-gel cell batteries
- Only 10.14 lb total weight
- Flash durations as short as 1/66,000 sec with optional Speed Max head
- Structural and Convenience Features
-
- Metal housing with sturdy, protective rubber profile
- Voltage indicator on batteries, remaining power indicator on pack
- Special ergonomic handle for carrying, with integrated spare fuses
- Uses Porty L batteries
- USB port for software updates
In the Box Hensel Power Max L Lithium Mobile Power Supply (120VAC) Battery Pack for the Porty L 600, L 1200 and Power Max L Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hensel Power Max L Lithium Mobile Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHensel 1316120 Specs | Type | Pure Sine Wave Inverter mobile power supply | | Material of Construction | Metal housing with rubber guards | | Maximum Power | Will power Integra Mini/Plus, Expert D up to 2,000 total W/s monolights totaling up to 2,000W/s
Powers 1 Speed Max 400
500W For continuous sources | | Guide Number | Depends on head in use | | Recycle Time | Approximately 50% longer than units plugged into mains supply | | Flash Duration | With Speed Max head: 1/66,000 sec (t0,5) @ min. power | | Flash Variability | Depends on head in use | | Voltage Stabilization | Yes, with thermal coupler to prevent overheating | | Distribution | Not applicable | | Head Outlets | 2x NEMA 5 | | Connectivity | 1x USB | | Flash Ready Indicator | Depends on head in use | | Operating Voltage | 120VAC, 60Hz | | Input Power | 120-240VAC, 50/60Hz via optional charger | | Output Power | 120VAC, 60Hz | | Remaining Power Indicator | Yes, with load voltage indicator | | Battery | Lithium-ion | | Charge Time | 2.0 Hours when fully depleted | | Circuit Protection | Yes | | Fan Cooled | No | | Auto Dump | Not applicable | | Number of Flashes @ Full Power | 880 @ 250W/s
440 @ 500W/s
220 @ 1,000W/s
110 @ 2,000W/s | | Dimensions | 9.0 x 8.5 x 7.8" (23 x 21.6 x 20 cm) | | Weight | 10.14 lb (4.6 kg) with battery
Battery alone: 3.96 lb (1.8 kg) | | | | Package Weight | 7.79 lb | | Box Dimensions (LxWxH) | 10.14 x 8.85 x 8.46" |
