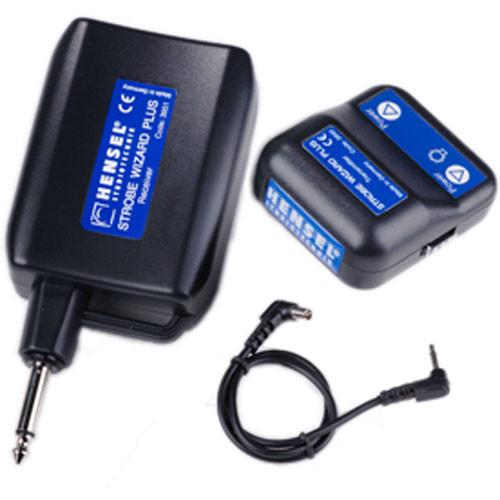

User Manual for Hensel Strobe Wizard Plus Radio Slave Remote Control System Click to enlarge the picture
Contents of the user manual for the Hensel Strobe Wizard Plus Radio Slave
- Product category: Radio & Infrared Transmitters Hensel
- Brand: Hensel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hensel Radio & Infrared Transmitters
|
User manual for the Hensel Strobe Wizard Plus Radio Slave contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hensel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hensel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hensel product will considerably shorten its lifespan!
|
Product description The Hensel Strobe Wizard Plus Radio Slave System combines radio triggering, model light activation, and flash power control into one single compact device (with Hensel strobes that support these features). The availability of 3 channels prevents interference between different work groups within the same studio. On channel #4 (master channel) all devices can be controlled simultaneously, regardless of the channel they are set to. In addition, this improved Plus version has a maximum sync speed of 1/250th. The transmitter is small, light and easily mounts into a hot shoe. In addition, it also comes supplied with a short sync cord (sub-mini connection) for PC sync connection. Note: The Plus version can only be operated with an external Strobe Wizard Plus receiver (#3951), or with internal receivers build into Integra Plus monolights having a flash arrow printed on the dialer for flash setting. Also works with the built-in receiver of the Porty Premium Plus (#4954), not with the Porty Premium AS/RC (#4953). - This system supports the possibility of remotely adjusting flash power and activating the modeling light via the Up/Down buttons on heads equipped with built-in receivers.
- A maximum sync speed of 1/250th second allows for shorter flash durations.
- Protected by a solid plastic housing.
- A sync voltage of 3V makes it ideally suited for digital cameras.
- Receiver has 1/4" (6.3mm) phone plug.
In the Box Hensel Strobe Wizard Plus Radio Slave Remote Control System (Transmitter & Receiver) PX28 (544L) 6v Lithium Battery tbswtadt 3 x AA (E91) 1.5v Alkaline Battery Short Sync Cord (Sub-Mini) Limited 2-Year Warranty User Manual PDF 616.4kbtbswtadt Table of Contents
|
Upload User Manual
Have you got an user manual for the Hensel Strobe Wizard Plus Radio Slave Remote Control System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHensel 3952 Specs | | | Channels | 3 | | Wireless Range | 131' / 40 m | | Radio Frequency | 433 MHz | | | | Battery Type | 3 x AA
1 x PX28 | | | | Dimensions | 2.2 x 2.5 x 1.9" / 5.5 x 6.3 x 4.8 cm (Transmitter)
2.6 x 1.5 x 5.6" / 6.5 x 3.7 x 14.1 cm (Receiver) | | Weight | 1.9 oz / 53 g (Transmitter)
3.0 oz / 84 g (Receiver) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.9 x 5.7 x 3.1" |
