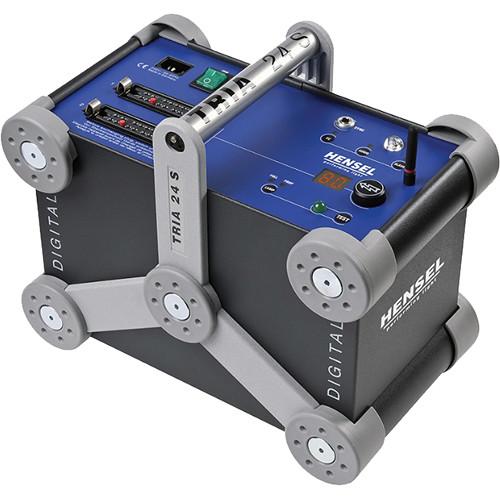

User Manual for Hensel Tria 24 SF Power Pack Click to enlarge the picture
Contents of the user manual for the Hensel Tria 24 SF Power Pack
- Product category: Power Packs Hensel
- Brand: Hensel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hensel Power Packs
|
User manual for the Hensel Tria 24 SF Power Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hensel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hensel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hensel product will considerably shorten its lifespan!
|
Product description Used primarily in the studio to drive large light sources or modifiers, the 230V Hensel Tria 24 SF Power Pack is a compact strobe generator that divides 2,400W/s symmetrically between 2 outlets while providing recycle times as short as 2.2 seconds at full power. This is a heavy-duty unit with a full contingent of professional features packed in a sturdy metal housing with lots of tech-appeal right down to its integrated cradle/handle. Power selection is accomplished with a continuous rotary dial with no stop position so you don't have reverse direction to return to your lower power settings. The pack's 2,400W/s is split symmetrically between 2 channels and adjustable in 1/10 stop increments over a 6-stop range yielding recycle times of 0.4 to 2.2 seconds and flash durations as short as 1/940 sec. with an EH Pro Mini Speed flash head. Settings are indicated on a large 7-segment power display. Hensel has maintained a familiar orientation of controls for intuitive use by owners of earlier units. Modeling light control is similarly flexible. Settings for full on or off are selectable as well as proportional output to help in pre-visualization of lighting effects. A switchable audible ready alert and FC (flash check) modeling light dimming indicate full charge status. The Tria 24 SF can be triggered with the included sync cord, optical slave or its built-in Strobe Wizard Plus and FREEMASK receivers using an optional transmitter. FREEMASK is a studio technology developed by Hensel together with Schoepe GmbH which varies the flash output in short sequential exposures to create layer masks with minimal post-processing. While The standard Strobe Wizard Plus transmitter will wirelessly trigger the pack, the FREEMASK transmitter will both trigger the pack and/or activate FREEMASK. The Tria 24 SF's performance features are backed with solid maintenance features such as APD auto-dump of excess capacitive power, Turbo Ignition for consistent firing of flash heads regardless of age, Plugmatic and fused circuit protection and quiet fan cooling. - Attributes and Benefits
-
- Built-in radio remote control: Strobe Wizard Plus, FREEMASK
- FREEMASK function: cut-out masks in perfect quality while shooting
- Symmetrical power distribution
- Turbo Ignition fires even used and older generation flash tubes reliably. A big advantage when using different heads, spots and surface lights on a single generator.
- Adjustable power regulation in 1/10 f/stops
- Up to 650W modeling light per socket with on, off, full, proportional control
- Durable metal housing with easy-to-carry handle and integrated spare fuses
- Plugmatic safety circuit when exchanging plugs
- Large 7-segment power display
- Continuous digital rotary switches with notch stops and no final stop position
- Illuminated power switch
- FC - Flash check, visual flash control
- Active cooling with silent fan
- APD, internal power dump when power is reduced
- Durable foil surface with real buttons for easy operation
- Bright LEDs show settings
- Built-in audio alert and highly sensitive photocell, separately adjustable
- Sync socket for standard 1/4" (6.3mm) cord
- Test button for manual triggering
- Continuity in controls, switches and nomenclature from previous packs
In the Box Hensel Tria 24 SF Power Pack (230V) AC Power Cord Monoplug to PC Sync Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hensel Tria 24 SF Power Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHensel 24 SF Specs | Maximum Watt/Seconds | 2,400 | | Guide Number | GN 180, f/128 9/10 @ ISO 100, 1/60 sec. 12" (38.48 cm) reflector @ 3.28' (1.0 m) | | Flash Duration | @ t 0.5
1/500 sec. with 1 EH Pro Mini
1/940 sec. with 1 EH Pro Mini Speed | | Recycle Time | 2.2 Sec. @ full power
0.4 Sec. @ min. power | | Flash Variability | 6 Stops in 1/10 stop increments
75-2,400 W/s | | Voltage Stabilization | Yes | | Modeling Light | Yes: Full / Off / Proportional
Takes up to 650 W lamp per channel | | Distribution | Symmetrical | | Head Outlets | 2 | | Flash Ready Indicator | LED, switchable audible, FC modeling light dimming | | Operating Voltage | 230 VAC 50/60 Hz | | Sync Input | 1/4" (6.3 mm) Phono | | Built-in Slave Cell | Optical, Strobe Wizard Plus, FREEMASK | | Circuit Protection | Plugmatic safety circuit when exchanging plugs
10 AF fuse | | Fan Cooled | Yes | | Auto Dump | Yes | | Dimensions | 13.58 x 7.6 x 14.17" (34.5 x 19.5 x 36 cm) | | Weight | 16.5 lb (7.5 kg) | | | | Package Weight | 24.25 lb | | Box Dimensions (LxWxH) | 22.047 x 14.724 x 12.047" |
