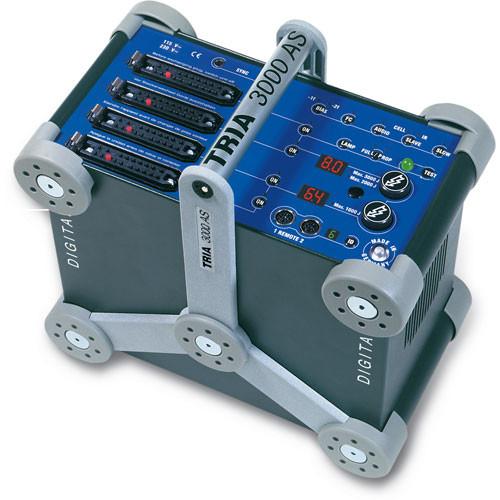

User Manual for Hensel Tria 3000-AS Power Pack Click to enlarge the picture
Contents of the user manual for the Hensel Tria 3000-AS Power Pack
- Product category: Power Packs Hensel
- Brand: Hensel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hensel Power Packs
|
User manual for the Hensel Tria 3000-AS Power Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hensel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hensel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hensel product will considerably shorten its lifespan!
|
Product description The Hensel Tria 3000-AS power pack provides 3000 watt/seconds of stored power, for use with EH or MH Series Hensel heads. It allows recycling in 2 seconds at full power, and .3 seconds at minimum power. It accepts 4 heads, and distributes its power asymmetrically. Power to the modeling lights may be turned on - full always, proportionally, and off. - Precise Power Control
- Digital rotary switches, display in 1/10 stop increments
- Asymmetrical Power Distribution
- Allows different levels of power to be distributed to the head, for more creative control
- Fan Cooled
- Provides continuous service without overheating
- Auto Dump
- Eliminates the need to pop the strobe while powering down
In the Box Hensel Tria 3000-AS Power Pack (120-240V) AC Power Cord Monoplug to PC Sync Cord 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hensel Tria 3000-AS Power Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHensel 3000 AS Specs | Maximum Watt/Seconds | 3000 | | Guide Number | f/180 @ 230V, f/90.5 @ 120V with reflector | | Recycle Time | 2 sec @ full power
.3 sec @ min power | | Flash Duration | 1/790 sec with 1 EHT 3000 head, channel A 1/1000 sec - Channel B
1/1700 sec with 3- MH 3000 heads | | Flash Variability | 7.6 f/stops in 1/10 stop increments | | Voltage Stabilization | Yes | | Distribution | Asymmetrical | | Head Outlets | 4 | | Flash Ready Indicator | LED, Switchable audible | | Operating Voltage | 120-230VAC; change modeling light and plug adapter for 230V use | | Sync Voltage | 19VDC | | Built-in Slave Cell | Optical | | Circuit Protection | Yes | | Fan Cooled | Yes | | Auto Dump | Yes | | Dimensions | 16.6 x 7.7 x 16.3" (34.5 x 19.5 x 41.5 cm) (LxWxH) | | Weight | 27.7 lbs (12.6 kg) | | | | Package Weight | 32.0 lb | | Box Dimensions (LxWxH) | 22.1 x 19.0 x 12.0" |
