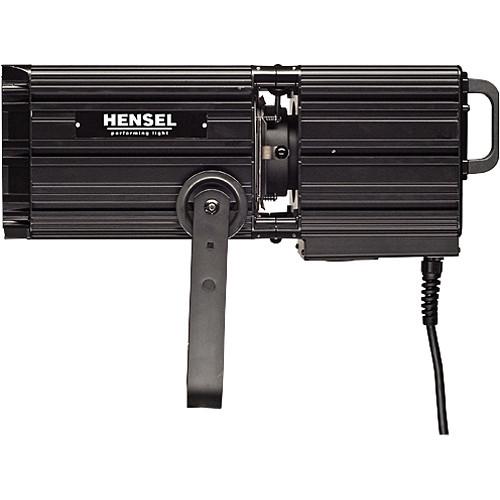

User Manual for Hensel Wide-Angle Superspot 6000 Click to enlarge the picture
Contents of the user manual for the Hensel Wide-Angle Superspot 6000
- Product category: Power Pack Heads Hensel
- Brand: Hensel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hensel Power Pack Heads
 |
User manual for the Hensel Wide-Angle Superspot 6000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hensel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hensel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hensel product will considerably shorten its lifespan!
|

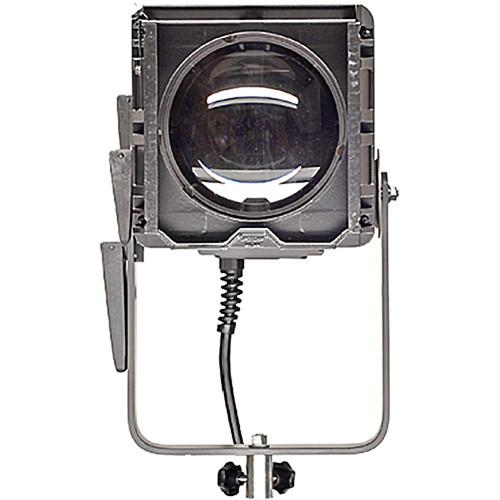

Product description The Wide-Angle Superspot 6000 from Hensel is a focusing 4.1" Fresnel flash fixture with its own 6,000W/s power supply, 650W modeling lamp and an adjustable iris diaphragm. The Superspot's zoom lens makes it ideal for applications requiring a theatrical look. Like many of its constant light follow spot counterparts, the Superspot has a filter holder and accessory slots, levers for its effects iris, a mask draw that rotates 360 degrees and an optional gobo holder. A user replaceable white interior reflector is included for optimal light quality while an optional silver reflector for high output applications can be swapped out without tools. The Wide-Angle Superspot can project an image circle from 33-75" at 6.6' without its iris and 6.0-63" with the iris. A 16.4" power cable ships with the fixture. - Steplessly adjustable iris diaphragm
- Mask drawer can be rotated by 360° and fixed in position
- Includes user-replaceable white mirror for best image quality. No tools needed to swap out optional silver mirror for high output
In the Box Hensel Wide-Angle Superspot 6000 Flash Tube Modeling Lamp White Reflector Limited 2-Year Warranty on Superspot Limited 90-Day Warranty on Flash Tube, Modeling Lamp, Reflector Table of Contents
|
Upload User Manual
Have you got an user manual for the Hensel Wide-Angle Superspot 6000 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHensel Superspot 6000 Specs | Material | Aluminum housing | | Maximum Watt/Seconds | 6,000 | | Guide Number | @ 230VAC, 50Hz
f/45 3/10 (f/64 8/10 with silver mirror) @ 6.6' (2.0 m), ISO 100 | | Beam Diameter | Minimum/Maximum: 33.5/75" (85/190 cm) @ 6.6' (2.0 m) without iris diaphragm
Minimum/Maximum: 6.0/63" (15/160 cm) @ 6.6' (2.0 m) with iris diaphragm
15 to 160 cm (with iris diaphragm) | | Connection | 20-Pin long plug | | Lens | Fresnel: 4.1" (10.5 cm) | | Focusing | Thread mechanism | | Modeling Light | 650W, G6.35 socket, on/off switchable | | User Replaceable Flashtube | Yes | | Circuit Protection | Yes | | Cable Length | 16.4' (5.0 m) | | Fan Cooled | Yes | | Voltage Required | 100-240VAC, 50/60Hz | | Dimensions | 10 x 8.0 x 9.25" (25.5 x 20.5 x 23.5 cm), without bracket | | Weight | 11 lb (5.0 kg) |
