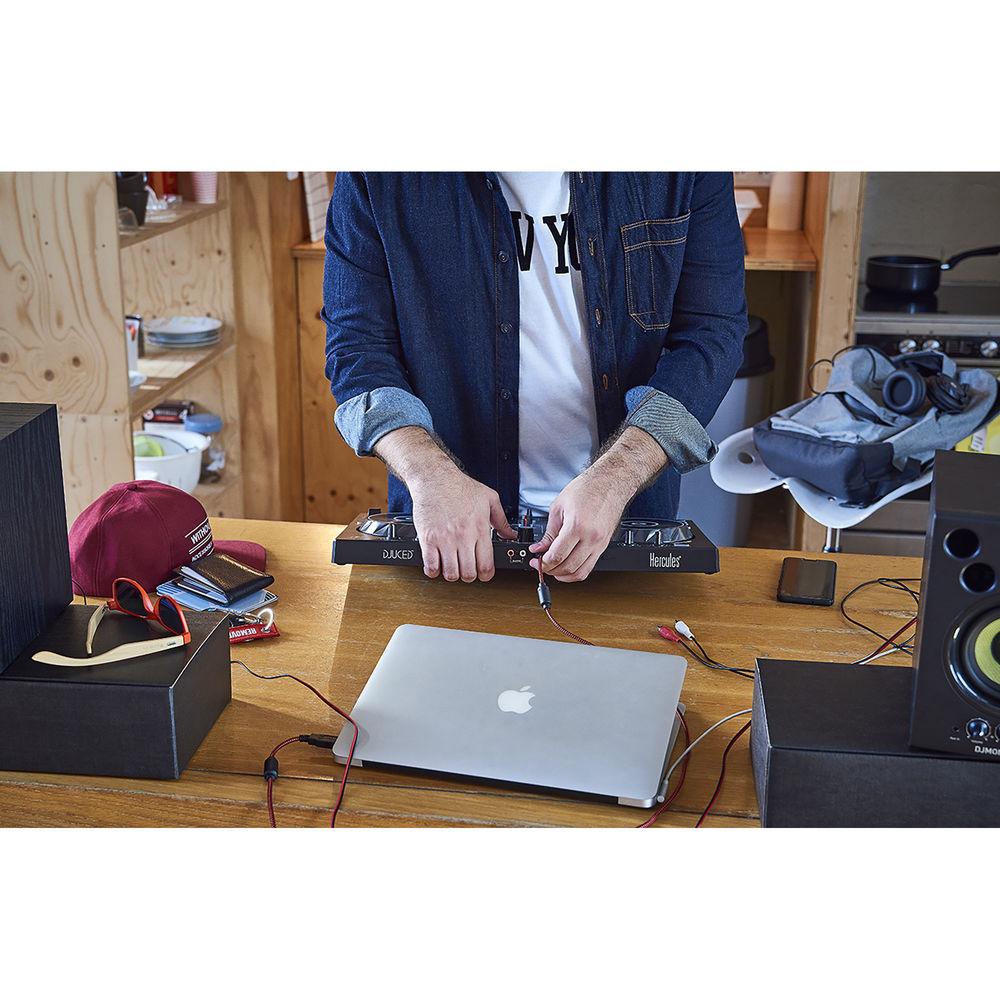

User Manual for Hercules DJControl Inpulse 300 - DJ Controller System Click to enlarge the picture
Contents of the user manual for the Hercules DJControl Inpulse 300 - DJ
- Product category: DJ Controllers Hercules
- Brand: Hercules
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hercules DJ Controllers
 |
User manual for the Hercules DJControl Inpulse 300 - DJ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hercules product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hercules user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hercules product will considerably shorten its lifespan!
|
Product description - Hercules | DJControl Inpulse 300 | Introduction
The Hercules DJControl Inpulse 300 is an intuitive DJ software controller, designed for the beginner to learn how to mix and perform. Powered by the DJUCED software, the Inpulse 300 offers several features to help you learn, including light guides to show you the right moves, an Intelligent Music Assistant (IMA) that suggests the best songs to play, an energy feature to manage the party mood, and the DJ Academy, which provides onboard video tutorials.

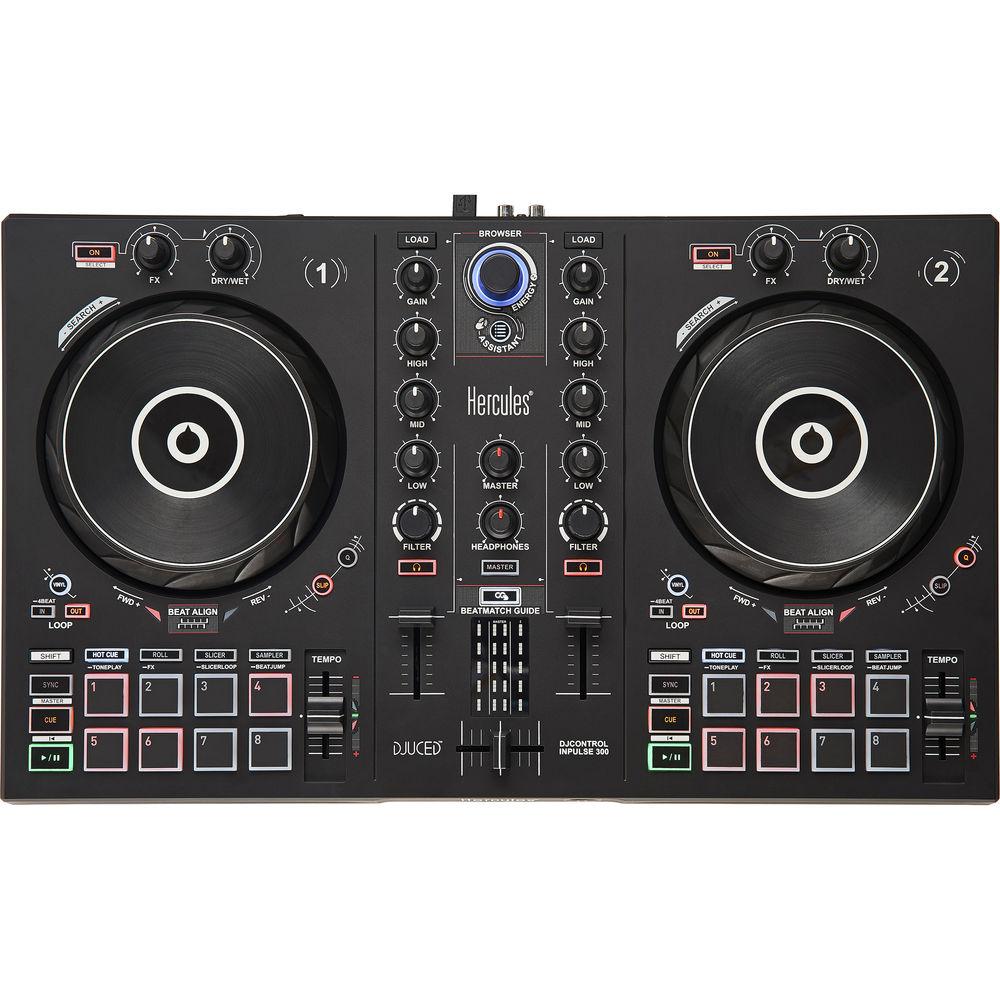

The Inpulse 300 controller features a dual-deck layout with touch-sensitive (capacitive touch) jog wheels that allow for vinyl-style cueing, pitchbend functions, and browsing through tracks. The sixteen multicolor pads light up for better comprehension and offer eight modes of control including hot-cue, roll, slicer, sampler, toneplay, FX, slicer loop, and beatjump. Between the decks is a 2-channel mixer with an integrated crossfader for blending two tracks. Each deck offers gain control, a 3-band EQ, a filter, and a level fader. The internal 24-bit / 44.1 kHz soundcard features stereo RCA main outputs for connecting to a PA system and a separate 1/8" headphone output for monitoring and track cueing.
The included DJUCED software delivers intuitive yet powerful DJ mixing features for both novice and experienced DJs alike. Mix tracks manually or automatically, manipulate tracks with filters, and record mixes into software to share and upload. The Hercules DJControl Inpulse 300 ships with a braided USB cable. - Key Features
-
- Beatmatch Guide
- Light Guide: Built-in, onboard dynamic light guide removes need to look at computer screen
- Tempo Guide: Shows where to move tempo fader
- Beat Align Guide: Shows best direction to turn jog wheel
- IMA (Intelligent Music Assistant)
- Trending Songs: Displays list of best upcoming songs to play, suggested by DJUCED AI
- Assistant: Offers best music suggestion at the touch of a button
- Energy: Match energy of current track to suggestions to keep energy levels consistent
- DJ Academy
- Built-in video tutorials
- Integrated into DJUCED
- Helps develop DJ skills
- Deck Controls
- Jog Wheel: Touch detection for scratch mode
- Pads: Four pads to activate modes (hot-cue, roll, FX, sampler)
- Loop Controls: Loop in and loop out keys
- Tempo/Pitch: Fader control
- Mixer Controls
- Filter, 3-band EQ, gain knob, volume fader / deck crossfader, master volume, headphones
- VU meters per deck + master VU meter
- Built-In Audio
- 24-bit / 44.1 kHz

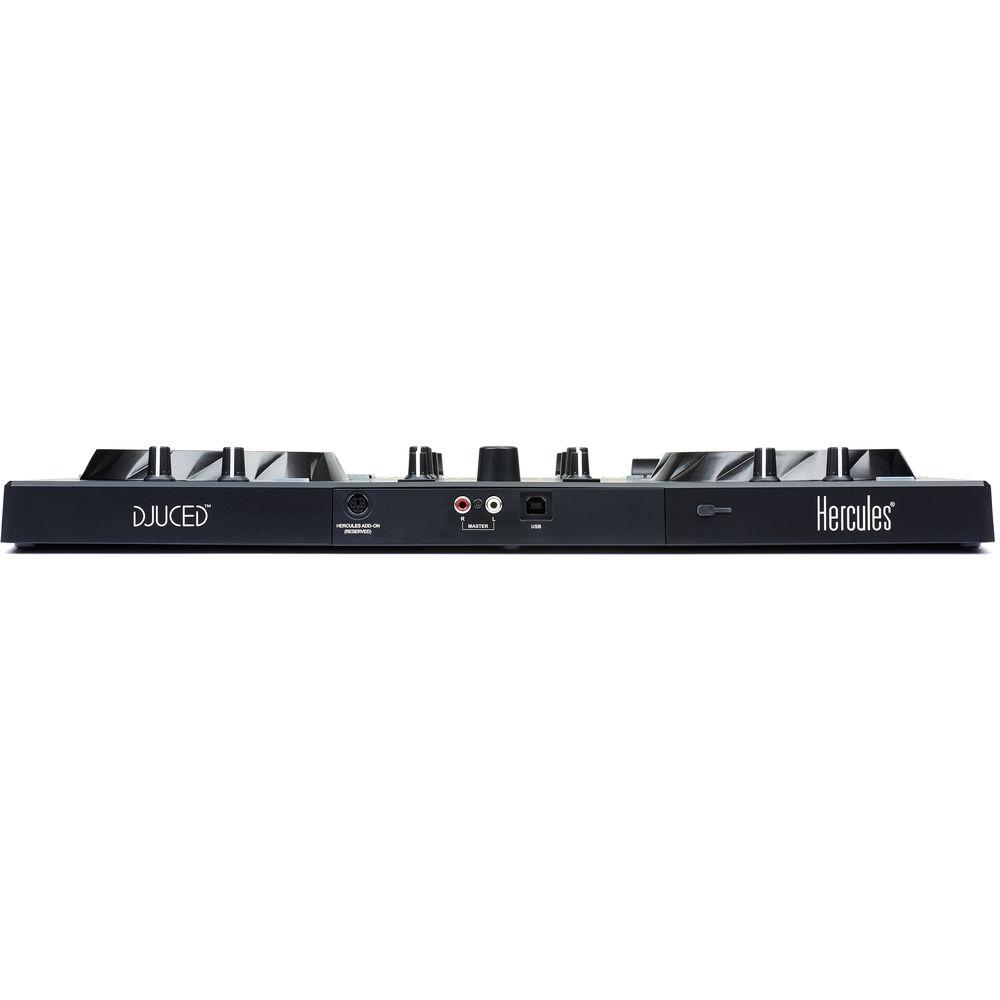

- Master: 2 x RCA

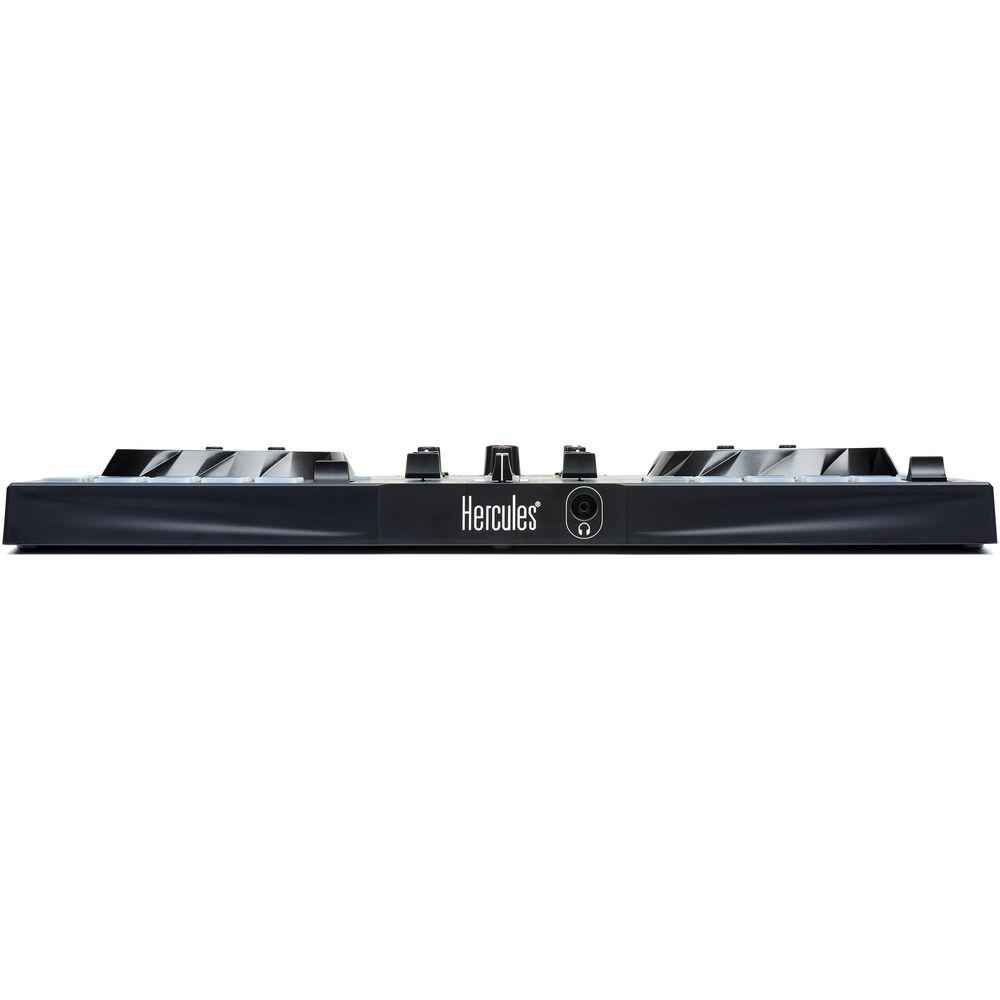

- Headphone: 3.5 mm
In the Box Hercules DJControl Inpulse 300 - DJ Controller System Braided USB Cable DJUCED DJ Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hercules DJControl Inpulse 300 - DJ Controller System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHercules Inpulse 300 Specs | Mac System Requirements | macOS 10.9 or later
Latest macOS recommended (Mojave 10.14) | | Windows System Requirements | Microsoft Windows 7 or later (32- and 64-bit)
Windows 10, 64-bit recommended
ASIO and WASAPI drivers | | Minimum System Requirements | 2 GHz Core i3, i5, i7 (3rd gen)
4 GB RAM or more
1 GB of available hard-drive space
Screen Resolution: 1024 x 768 with OpenGL 2.0 support | | Recommended System Requirements | 2.5 GHz Core i3, i5, i7 (3rd gen) / 4 GB RAM
Screen Resolution: 1280 x 800 with OpenGL support
SSD drive | | Main Output | Connectors: 2 x RCA
Maximum Power: 5 dBu into 1 kHz
THD+N: -80 dB at 1 kHz
Resolution: 24-bit
Sample Rate: 44.1 kHz | | Headphone Output | Connector: 1/8" / 3.5 mm TRS
Maximum Power: 5 dBu into 32 Ohms at 1 kHz
THD+N: -75 dB at 1 kHz
Resolution: 24-bit
Sample Rate: 44.1 kHz | | Controls | Deck
Transport: 8 x buttons (shift/play/cue/sync)
2 matrices of 8 pads each and 8 associated mode buttons (hot-cue, roll, slicer, sampler, toneplay, FX, slicer loop, beatjump)
Loop In/Out: 4 x buttons
Vinyl: 2 x buttons
Jog Wheels: 2 x touch-sensitive capacitive
Pitch: 2 x faders
Light Guide: For help with beat matching
Effects: 2 x buttons with 4 associated potentiometers to modulate the effect (FX and dry/wet)
Mixer
Navigation Encoder: 1 x rotary with integrated switch for navigating folders and playlists
Assistant: Backlit LED ring with button for energy level of next track
Deck Load: 2 x buttons
EQ per Deck: 3-band EQ (high/mid/low)
Gain: 2 x potentiometers
Filter: 2 x dual filter potentiometers (low-pass/high-pass)
Volume Control: 1 x master, 1 x headphone
Cue: 2 x buttons for headphone monitoring, 1 x button to enable/disable master output monitoring
Channel Faders: 2 x level control faders
Crossfader: 1 x crossfader between deck 1 and deck 2 | | Dimensions | 18.9 x 11.3 x 2.0" / 48 x 28.7 x 5.2 cm | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 5.81 lb | | Box Dimensions (LxWxH) | 20.9 x 12.8 x 4.1" |
