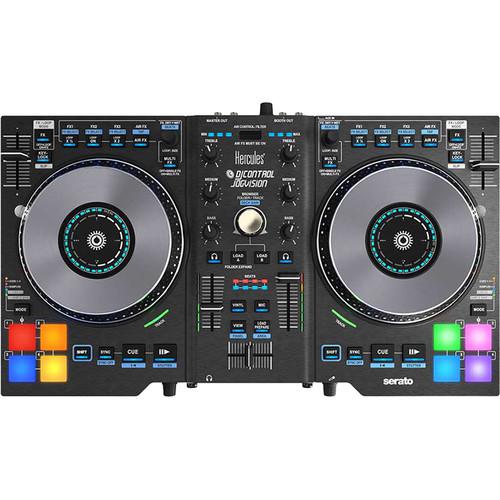

User Manual for Hercules DJControl Jogvision DJ Software Controller Click to enlarge the picture
Contents of the user manual for the Hercules DJControl Jogvision DJ Software Controller
- Product category: DJ Controllers Hercules
- Brand: Hercules
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hercules DJ Controllers
 |
User manual for the Hercules DJControl Jogvision DJ Software Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hercules product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hercules user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hercules product will considerably shorten its lifespan!
|

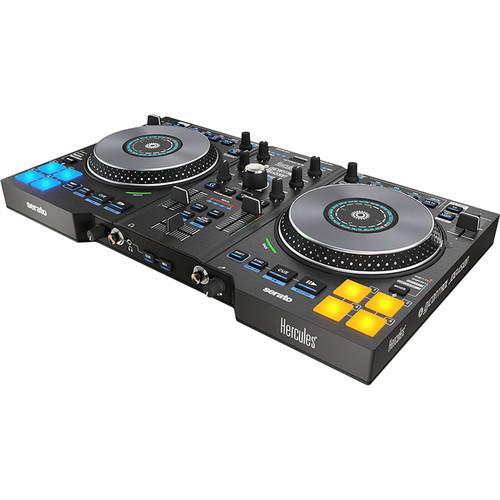

Product description The Hercules DJControl Jogvision is a plug-and-play, USB DJ controller that connects to a Windows or Mac computer in seconds and allows you to mix and scratch with ease using the included Serato DJ Intro software. It offers two-channel mixing with large, high-precision platters, each with a built-in display at their center. The in-jog displays simultaneously indicate both the playback speed and position in the track at a glance, enabling you to focus on your performance instead of your computer screen.The 5.9" platters provide instant touch detection and emulate the feel of CD deck platters, which is ideal for high-precision scratching with no latency. The two sets of four drum pads per set are equipped with Cue Color Match. This RGB backlighting feature matches the default color of each cue point in Serato DJ Intro, providing a natural and intuitive control of the cue points and sampler. To enhance your creativity and stage appearance, Air control allows you to vary the low-pass filter setting with hand gestures and without any contact. Rolling your hand over the Air sensor produces a roller-coaster effect with the low-pass filter increasing, then decreasing, and afterwards re-increasing in a rapid cycle.The built-in sound card delivers audio at resolutions up to 24-bit / 96 kHz. It offers a master and a booth output to connect the unit to a PA system or powered speakers. A separate 1/8" headphone output is provided for monitoring and track cueing. The DJControl Jogvision is also equipped with a stereo line input to connect to an external audio source and a 1/4" input for a mic, so you can interact with your crowd. - Key Features
-
- Large jog wheels with built-in displays
- Two decks and a central mixer with an ergonomic and mobile design
- Includes Serato DJ Intro
- Serato DJ upgrade-ready (available separately)
- Robust construction for durability and transportability
- Two sets of four drum pads—with RGB backlighting
- Jog Wheels
-
- Jog wheels emulate the feel of CD deck platters, even when scratching
- Platters with 5.9" diameter are similar in size to platters on DJ CD players
- Instant touch detection with high precision and no latency
- Both blue displays rotate at 33 1/3 RPM
- In-Jog Displays
-
- Jog wheels show information, which visually guides your gestures for scratching and mixing
- The blue ring's rotation speed shows the playback speed of the track
- The white ring shows the position within the track currently playing
- When scratching, the display shows the angular position
- RGB Cue Color Match
-
- For intuitive control of cue points and sampler
- In Cue Point mode, the color of each drum pad matches the default color of the cue point in Serato DJ Intro
- Differently colored backlighting for Sample mode and Cue Point mode
- Air Control with Air Roll
-
- Control the low-pass filter with hand gestures over the Air sensor, without any contact
- Air Roll hand gesture lets you create new sounds including Filter Push, Filter Cut, Filter Roll
- Air control range of 12" allows your hand movements to be seen by the audience
- Audio Performance
-
- Built-in 24-bit / 96 kHz sound card
- Master and headphones stereo outputs
- Stereo booth output with adjustable volume
- Directly connect master and booth output to powered speakers
- Microphone input for interacting with crowd
- Stereo line input to connect an external audio source
In the Box Hercules DJControl Jogvision DJ Software Controller Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hercules DJControl Jogvision DJ Software Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

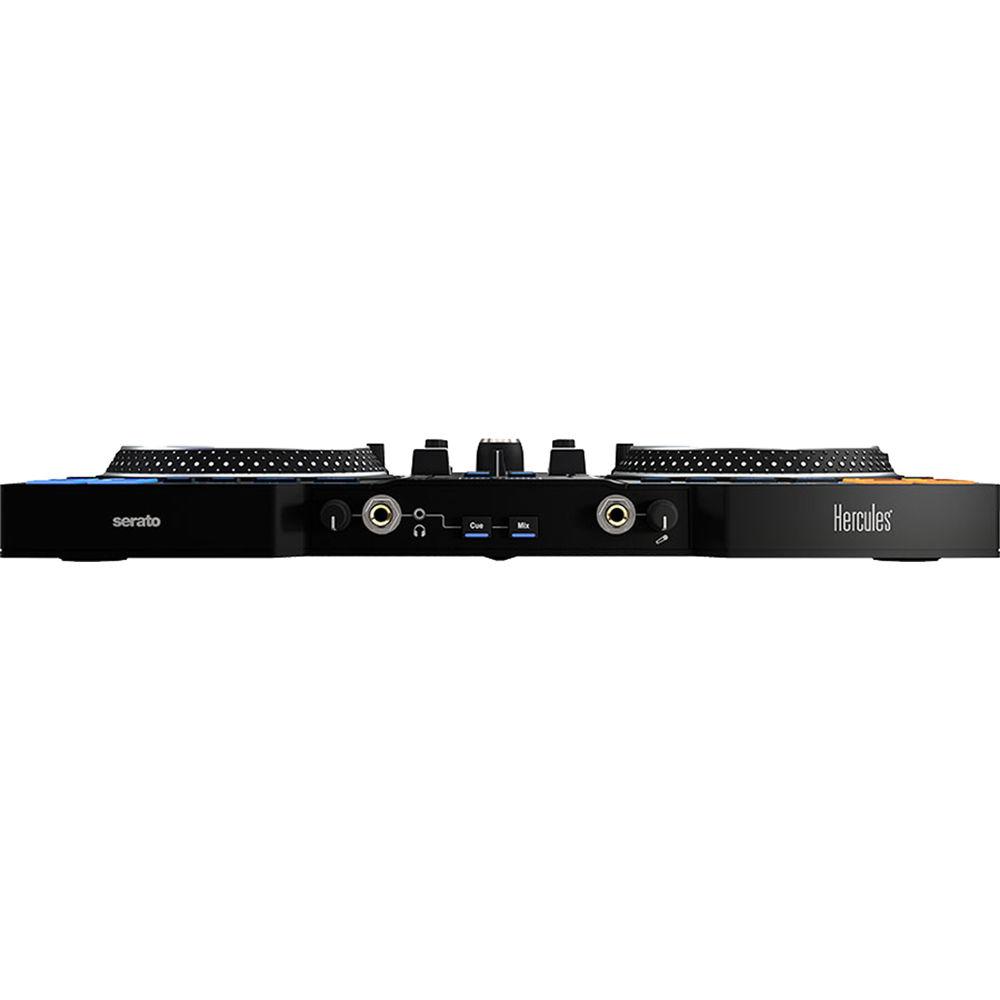

Technical parametersHercules Jogvision Specs | Inputs | 1 x 1/4" / 6.3 mm microphone input

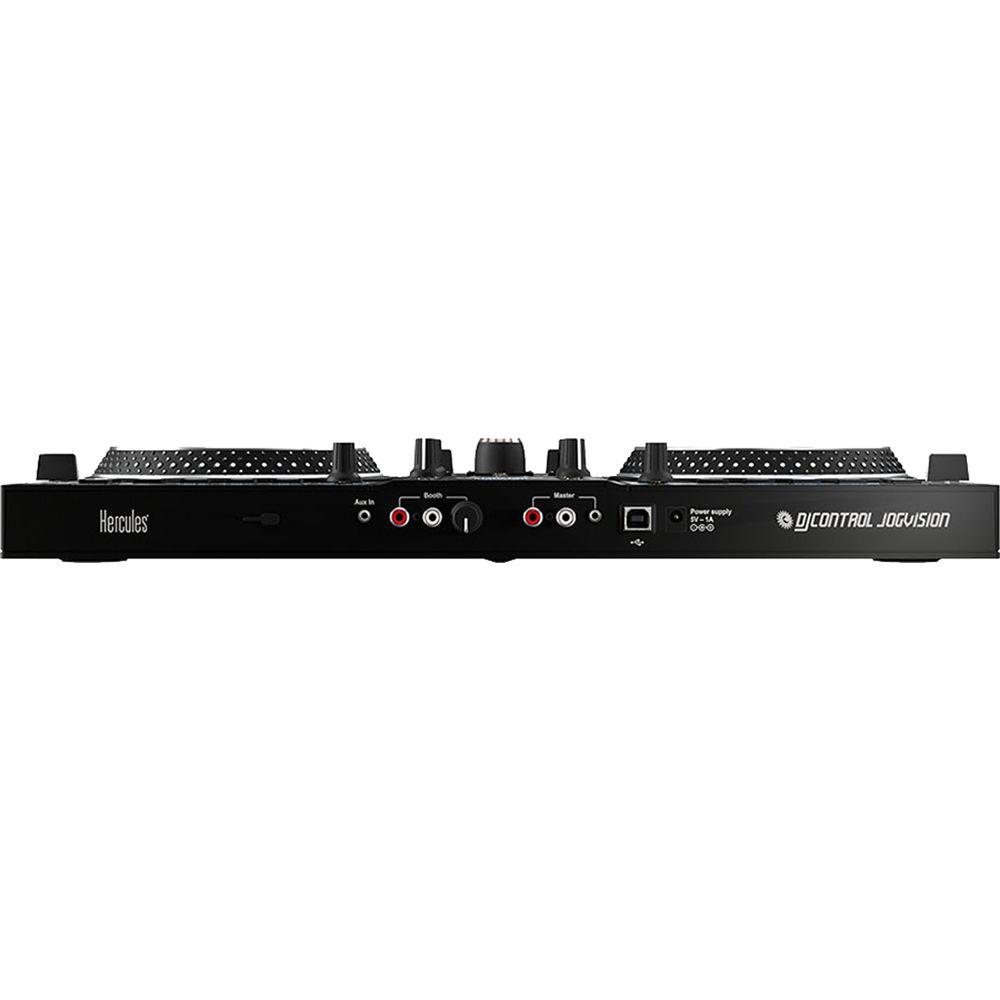

1 x 1/8" / 3.5 mm stereo line input | | Outputs | Master: 1 x stereo RCA pair (L/R), 1 x 1/8" / 3.5 mm stereo jack
Booth: 1 x stereo RCA pair (L/R)
Headphones: 1 x 1/4" / 6.3 mm stereo jack, 1 x 1/8" / 3.5 mm stereo jack | | Audio Resolution | 16- and 24-bit
44.1, 48, and 96 kHz
DAC: Wolfson, 106 dB SNR (A-weighted) | | System Configuration | Mac OS X: 10.7, 10.8, 10.9, 10.10, 10.11
Windows: 7, 8, 10
Operating System: (32-bit and 64-bit)
CPU: 2 GHz Core 2 Duo, Athlon 64 X2 or faster
2 GB RAM or more
USB high-speed port
Internet access | | Standards | Audio
Windows: ASIO and WDM
Mac: Core Audio
Controls
MIDI (extended MIDI on faders + potentiometers)
HID | | Dimensions | Enclosure: 17.9 x 10.0" / 45.5 x 25.4 cm
Jog Wheels Diameter: 5.9" / 15.0 cm | | Weight | 5.5 lb / 2.5 kg |
