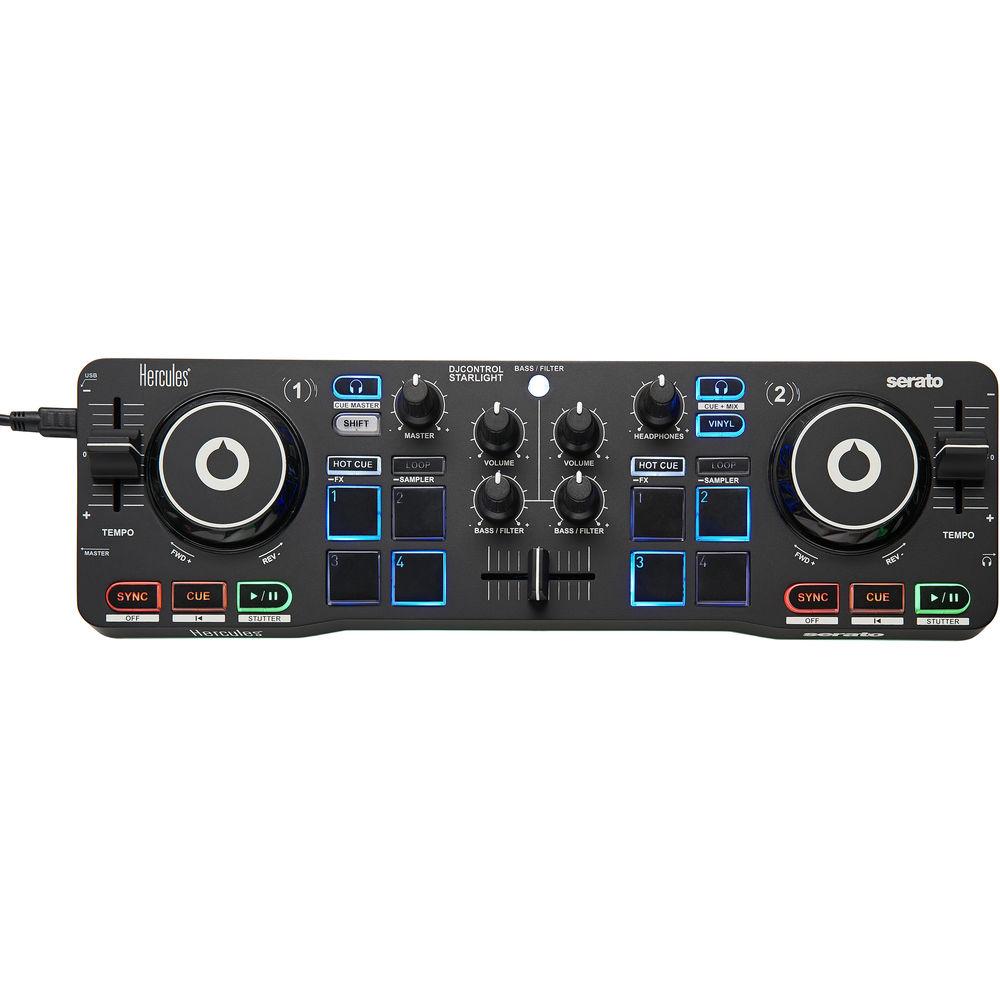

Product description - Hercules | DJControl Starlight - full version

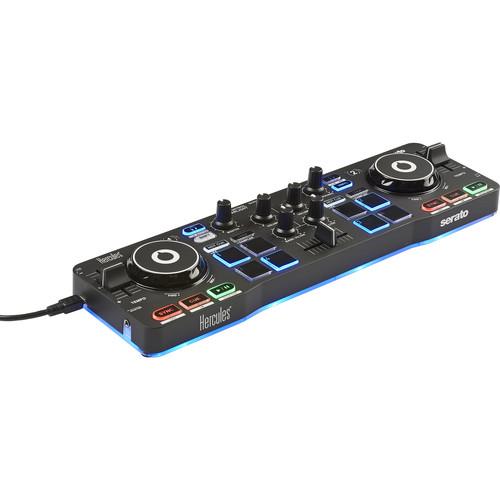

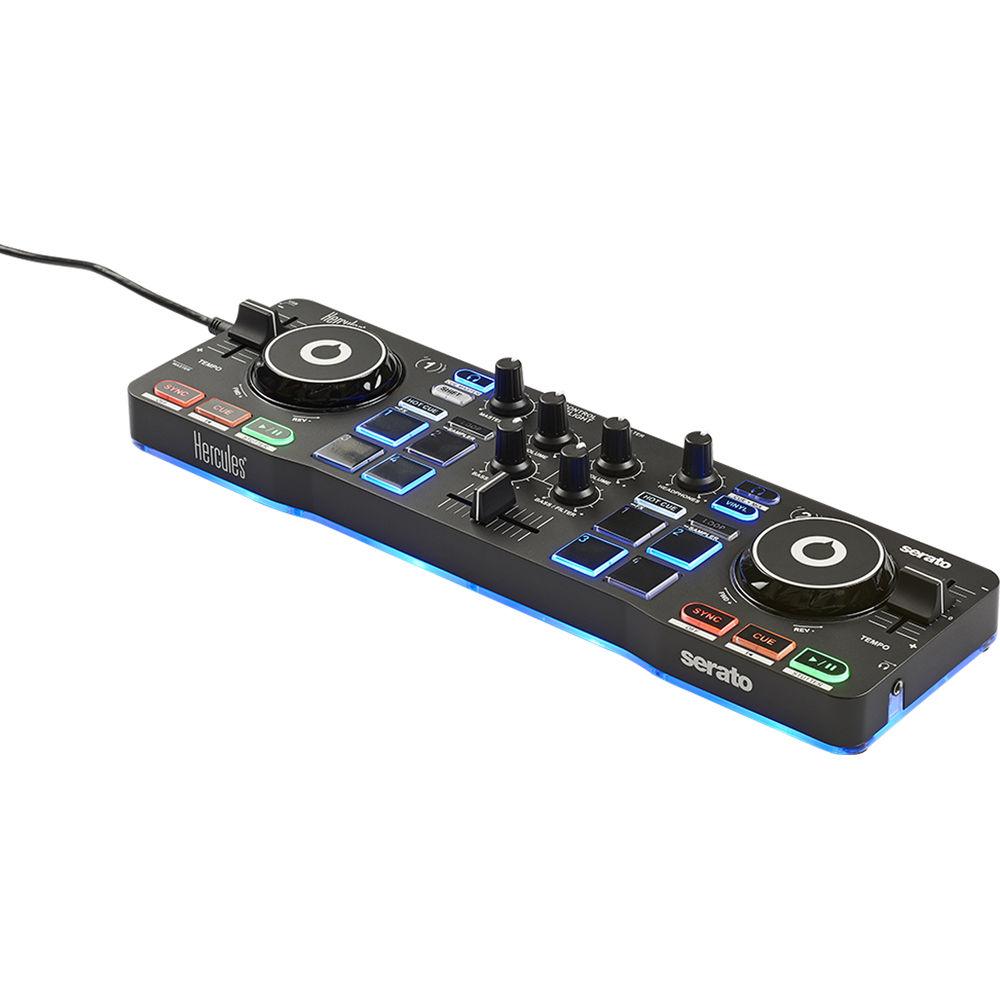

The Hercules DJControl Starlight is an ultra-portable USB DJ control surface designed to work with the included Serato DJ Lite software and is well suited for beginner DJs, home enthusiasts, or professional DJs on the go. The Starlight offers exclusive modes that work with Serato DJ Lite or Serato DJ Pro and offer all the key features required for learning to mix and scratch.
Two touch-responsive jog wheels allow for cueing and beat matching of their respective tracks, while the on-board crossfader and two volume knobs seamlessly mix the two tracks together. Each deck features a bass-EQ/filter that allows you to enhance the sound, while the available onboard Serato effects sweeten the mix. The controller is USB bus powered and equipped with four pads, each operating in four modes (hot-cue, loop, FX, & sampler) per deck. Additionally, the controller includes a built-in 24-bit / 44.1 kHz audio interface with separate master and headphone outputs. The DJControl Starlight ships with a USB cable. - Ultra-Portable Design
-
- Ideal for transporting
- Ergonomics that adapt perfectly to your laptop
- Concentrated Djing: All the essential functionality in an ultra-portable design
- Two-Deck DJ Controller
-
- Built-In Audio:
- Master output (speakers) + headphones output
- Controls Per Deck:
- Jog wheel with touch detection; control pause/play by releasing your touch
- Pads: 4 pads and 4 modes (hot-cue, loop, FX, sampler)
- Tempo (pitch) fader
- Mixer Controls:
- Bass EQ/filter knobs + deck volume knobs
- Crossfader: Mix between the two decks
- Master volume knob and deck monitoring selection buttons (decks 1/2)
- Serato DJ Lite Software
-
- Two exclusive modes for a better understanding of the 4-beat bar and how to count the beats in a song:
- Beat 1 Program: LEDs light up red with the first beat of the main track and blue with the following beats, turning off between each beat
- Beat 2 Program: LEDs light up in red with the first beat of the main song and blue with the following beats, without turning off
- A volume-synced mode:
- Master Volume Program: LEDs light up in white (strobe effect) and their intensity varies with the volume
- Two modes to cue and navigate within the tracks:
- Waveform Color Program: Two LEDs per turntable mimic the waveform colors of the respective tracks
- Cue Point Color Program: Two LEDs per turntable light up gradually depending on the color of the upcoming Cue Point
In the Box Hercules DJControl Starlight - DJ Software Controller with Serato DJ Lite USB Cable Serato DJ Lite Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hercules DJControl Starlight - DJ Software Controller with Serato DJ Lite in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHercules Starlight Specs | Mac System Requirements | Mac OS (64-bit only)
Mojave 10.14
High Sierra 10.13
Sierra 10.12
El Capitan 10.11
Processor
i3: 1.07 GHz
i5: 1.07 GHz
i7: 1.07 GHz
Screen Resolution: 1280 x 720
Memory: 4 GB
USB: Available USB 2.0 port
Free HDD Space: 5 GB | | Windows System Requirements | Windows (64-bit only)
Windows 10
Windows 8.1
Windows 7 with SP1
Processor
i3: 1.07GHz
i5: 1.07GHz
i7: 1.07GHz
Screen Resolution: 1280 x 720
Memory: 4 GB
USB: Available USB 2.0 port
Free HDD Space: 5 GB | | Audio Interface | Audio Interface: 24-bit / 44.1 kHz

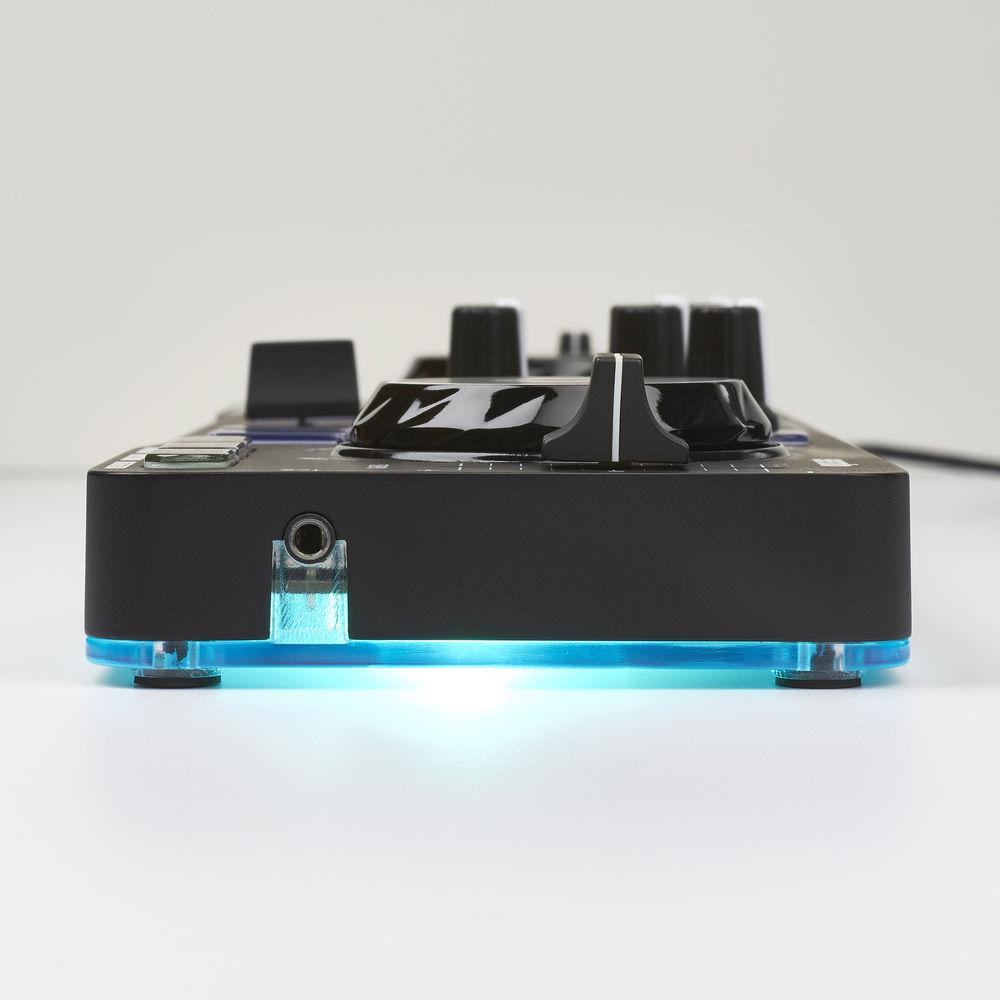

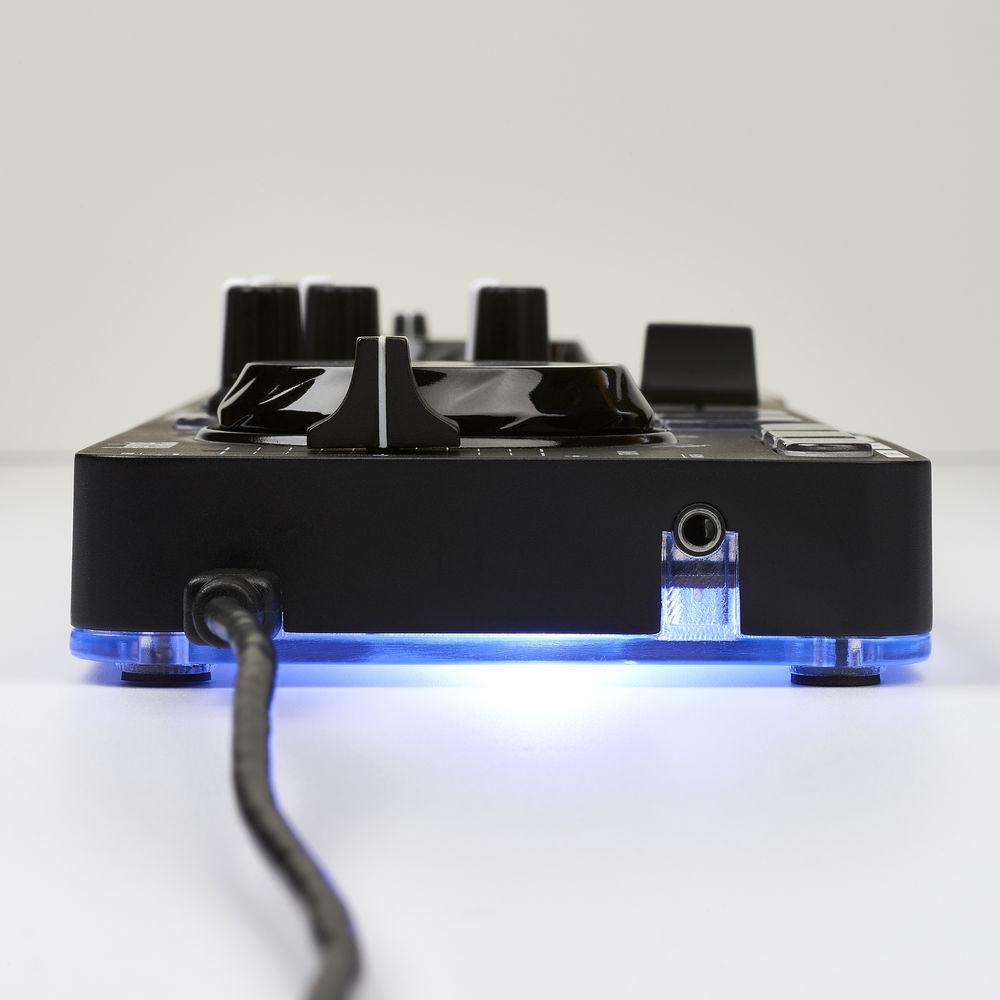

Master Output: 1/8" / 3.5 mm TRS
Headphone Output: 1/8" / 3.5 mm TRS | | Controls | Deck Controls
Decks: 2
Jog Wheel: 2 touch-sensitive

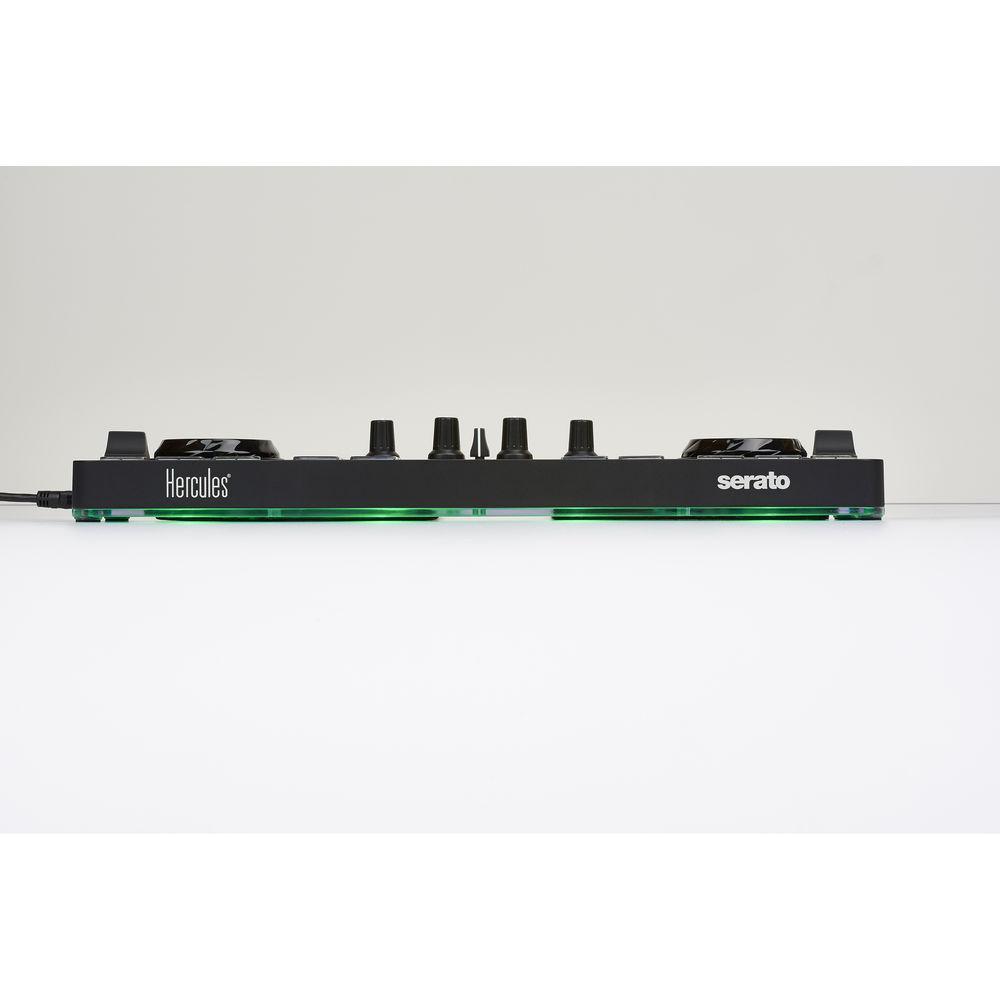

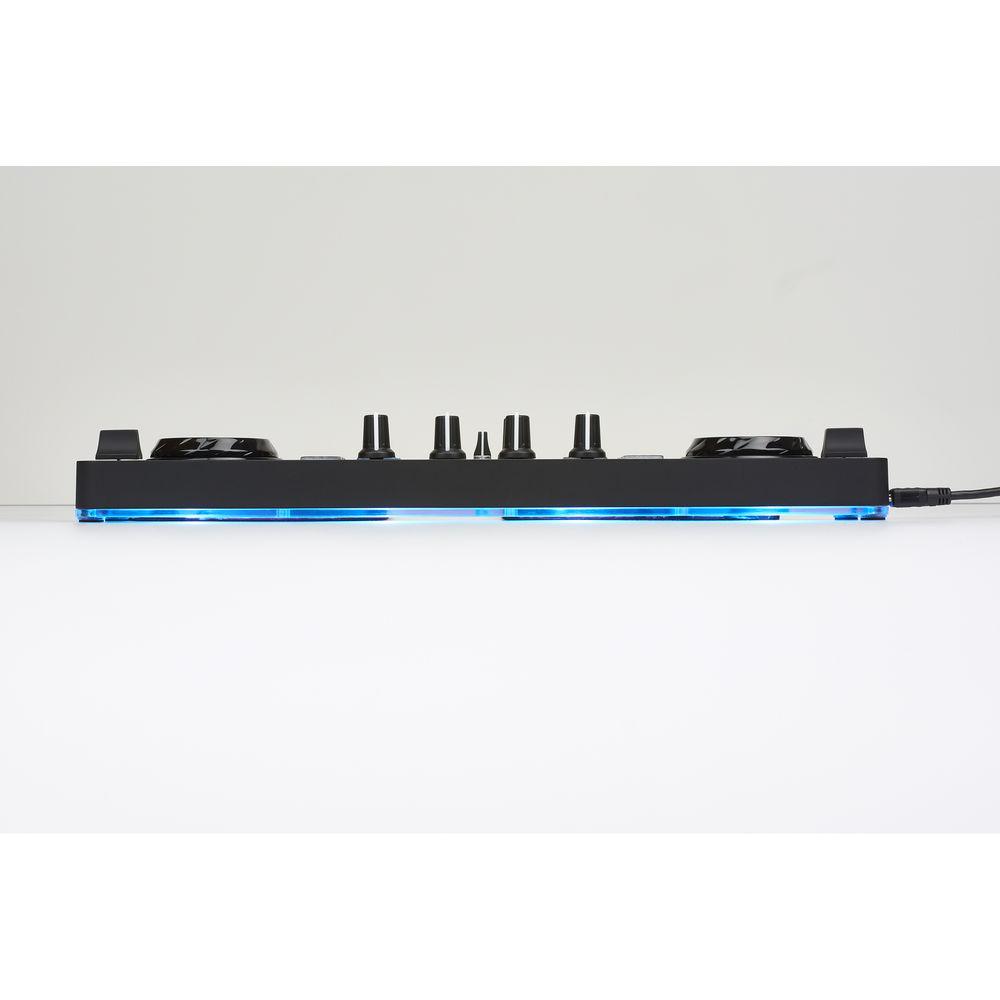

Backlit Base: Visual information controlled by Serato DJ Lite
Effects: RGB strobe effect backlighting
Pads: 4
Pad Modes: 4 (hot-cue, loop, FX, sampler)
Mixer Control
Crossfader: 1 x horizontal fader
Master Volume: 1 x knob
Headphones Volume: 1 x knob
EQ/Filter: 2 bass EQ/filters (1 knob per deck)
Volume: 2 knobs (1 deck volume knob per deck) | | Dimensions | 13.4 x 3.9" / 34.0 x 10.0 cm | | Weight | 1.2 lb / 0.6 kg | | | | Package Weight | 1.62 lb | | Box Dimensions (LxWxH) | 16.0 x 5.7 x 2.6" |
