User Manual for Hercules DJStarter Kit with DJControl Starlight, DJMonitor 32, HDP DJ M40.1 Headphones, & Serato DJ Lite Click to enlarge the picture
Contents of the user manual for the Hercules DJStarter Kit with DJControl Starlight,
- Product category: DJ Controllers Hercules
- Brand: Hercules
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hercules DJ Controllers
 |
User manual for the Hercules DJStarter Kit with DJControl Starlight, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hercules product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hercules user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hercules product will considerably shorten its lifespan!
|

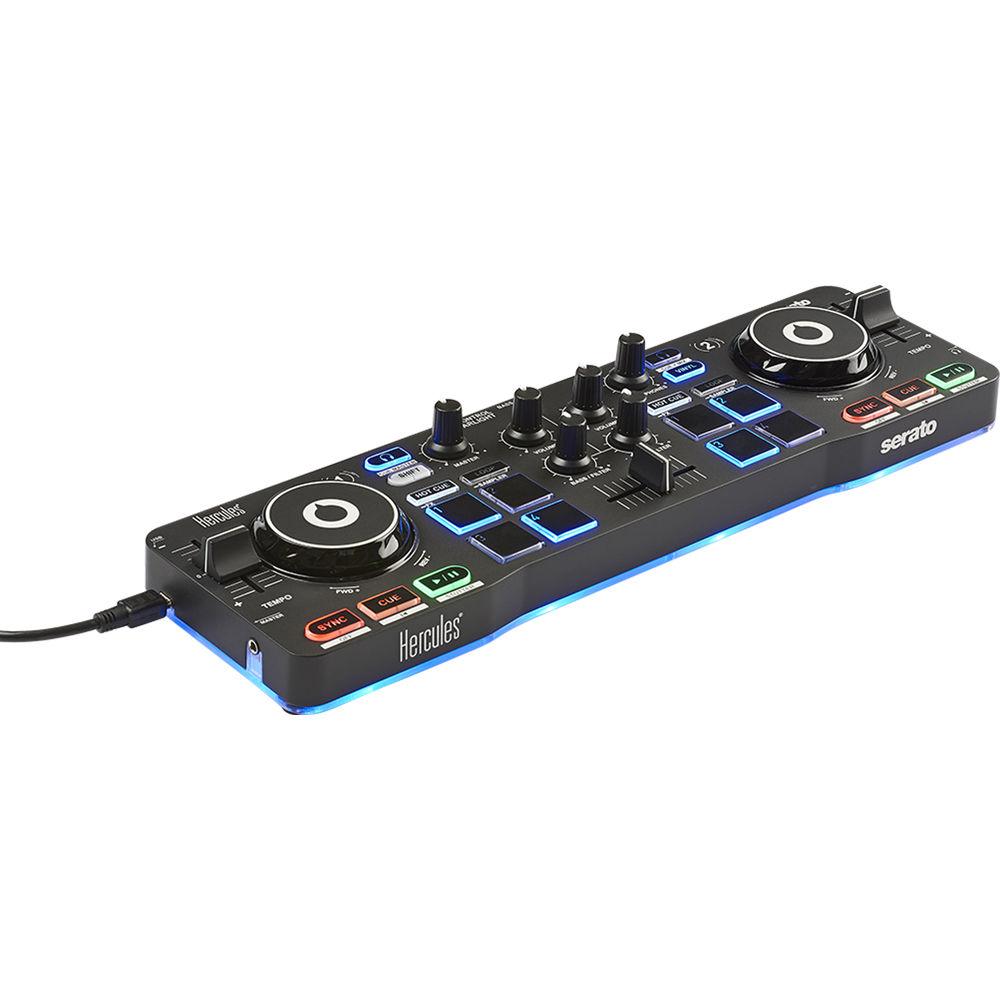

Product description The Hercules DJStarter Kit combines the DJControl Starlight Controller with a pair of DJMonitor 32 active speakers and a pair of HDP DJ M40.1 headphones to create a comprehensive DJ setup that's well suited for the beginner DJ, home enthusiast, or professional who is on the go. The DJControl Starlight includes a free copy of Serato DJ Lite. - DJControl Starlight - DJ Software Controller with Serato DJ Lite The Hercules DJControl Starlight is an ultra-portable USB DJ control surface designed to work with the included Serato DJ Lite software and is well suited for beginner DJs, home enthusiasts, or professional DJs on the go. The Starlight offers exclusive modes that work with Serato DJ Lite or Serato DJ Pro and offer all the key features required for learning to mix and scratch.
Two touch-responsive jog wheels allow for cueing and beat matching of their respective tracks, while the on-board crossfader and two volume knobs seamlessly mix the two tracks together. Each deck features a bass-EQ/filter that allows you to enhance the sound, while the available onboard Serato effects sweeten the mix. The controller is USB bus powered and equipped with four pads, each operating in four modes (hot-cue, loop, FX, & sampler) per deck. Additionally, the controller includes a built-in 24-bit / 44.1 kHz audio interface with separate master and headphone outputs. The DJControl Starlight ships with a USB cable. - Ultra-Portable Design
-
- Ideal for transporting
- Ergonomics that adapt perfectly to your laptop
- Concentrated Djing: All the essential functionality in an ultra-portable design
- Two-Deck DJ Controller
-
- Built-In Audio:
- Master output (speakers) + headphones output
- Controls Per Deck:
- Jog wheel with touch detection; control pause/play by releasing your touch
- Pads: 4 pads and 4 modes (hot-cue, loop, FX, sampler)
- Tempo (pitch) fader
- Mixer Controls:
- Bass EQ/filter knobs + deck volume knobs
- Crossfader: Mix between the two decks
- Master volume knob and deck monitoring selection buttons (decks 1/2)
- Serato DJ Lite Software
-
- Two exclusive modes for a better understanding of the 4-beat bar and how to count the beats in a song:
- Beat 1 Program: LEDs light up red with the first beat of the main track and blue with the following beats, turning off between each beat
- Beat 2 Program: LEDs light up in red with the first beat of the main song and blue with the following beats, without turning off
- A volume-synced mode:
- Master Volume Program: LEDs light up in white (strobe effect) and their intensity varies with the volume
- Two modes to cue and navigate within the tracks:
- Waveform Color Program: Two LEDs per turntable mimic the waveform colors of the respective tracks
- Cue Point Color Program: Two LEDs per turntable light up gradually depending on the color of the upcoming Cue Point

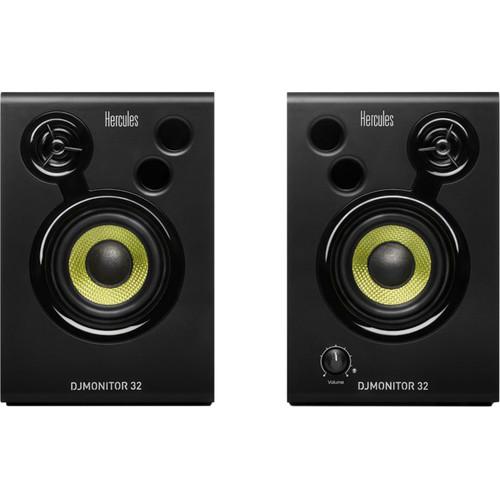

- DJMonitor 32 - 3" Active Multimedia Speakers (Pair) The Hercules DJMonitor 32 Active Multimedia Speakers are sold as a pair and well suited for DJ monitoring applications, project studio recording, laptop audio, gaming consoles, and much more. The DJMonitor 32's design utilizes a powered right speaker that connects to the passive left speaker. The internal amplifier provides 60W of (peak) power to the 3" woofer and tweeter, which combine to offer a frequency response of 60 Hz to 20 kHz. The MDF enclosure is ported for enhanced bass response. The rear of the left speaker features the power plug, stereo RCA inputs, and the terminal block to connect the right satellite speaker. The front of the active speaker features a volume control. The Hercules DJMonitor 32 includes a satellite connection cable and a power cable.
-
- Design
- Designed with high-end components for optimal precision and sound reproduction, as well as remarkable listening quality
- Volume control from front of speaker
- Performance
- Engineers developed DJMonitor 32 speakers in a professional anechoic chamber
- Input from specialists in the world of DJing and an in-depth study by audio professionals allowed for optimization of the speakers’ performance
- Quality
- 3" woofer
- Shifted vents and tweeters for great sound spatialization
- Clear and powerful sound
- Speaker Positioning
- For optimal positioning of the speakers, there should be a 60° angle between the two satellites and between the user and the satellites
- It is also important that the speakers be positioned at a height whereby the listener’s ears are level with the midpoint between the speaker’s tweeters and wide-band drivers

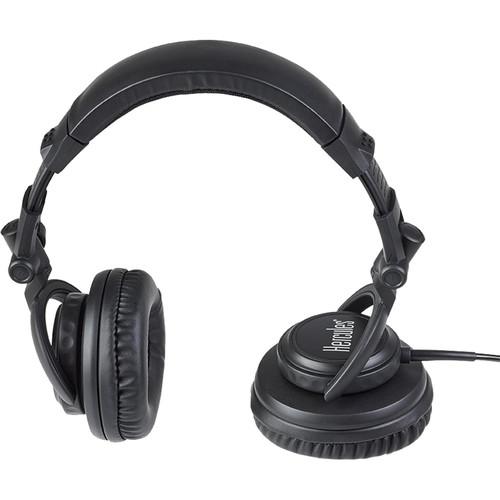

UPC: 663296421579 - HDP DJ M 40.1 HEADPHONES The The HDP DJ M 40.1 Headphones by Hercules are a pair of closed-back circumaural headphones that feature 50mm drivers and a frequency response range of 20Hz - 20kHz. The matte black headphones have an adjustable headband and robust hinges above the ear-cups. The ear-cups rotate 180 degrees and twist horizontally 90 degrees so that you can swivel them for single-ear monitoring. Both the headband and the ear-cups are cushioned for extended wear. The ear-pads cover the ear for audio isolation from ambient noise and seal the ear to prevent sound leakage. Included, is a 1/4" gold plated adapter, which screws on to the 1/8" connector at the end of the cable. This adapter allows you to connect to audio devices that have a 1/4" plug such as mixers, controllers, amps and more.
- Frequency Range from 20Hz-20kHz
- Frequency response for detailed listening.
- 50mm Drivers
- For a deep bass response.
- Ear-Cups that Swivel
- Rotate for one-ear monitoring and fold for transportation.
- 1/4" Gold Plated Adapter
- Screws on to the 1/8" connector at the end of the cable.
UPC: 663296413277 In the Box Bundle Items DJControl Starlight - DJ Software Controller with Serato DJ Lite tqvwcaxaxadzbeazzwafq DJMonitor 32 - 3" Active Multimedia Speakers (Pair) - Satellite Connection Cable
HDP DJ M 40.1 HEADPHONES - 1/8" (3.5 mm) to 1/4" (6.35 mm) Gold Plated Adapter
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hercules DJStarter Kit with DJControl Starlight, DJMonitor 32, HDP DJ M40.1 Headphones, & Serato DJ Lite in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DJControl Starlight - DJ Software Controller with Serato DJ Lite
| Mac System Requirements | Mac OS (64-bit only)
Mojave 10.14
High Sierra 10.13
Sierra 10.12
El Capitan 10.11
Processor
i3: 1.07 GHz
i5: 1.07 GHz
i7: 1.07 GHz
Screen Resolution: 1280 x 720
Memory: 4 GB
USB: Available USB 2.0 port
Free HDD Space: 5 GB | | Windows System Requirements | Windows (64-bit only)
Windows 10
Windows 8.1
Windows 7 with SP1
Processor
i3: 1.07GHz
i5: 1.07GHz
i7: 1.07GHz
Screen Resolution: 1280 x 720
Memory: 4 GB
USB: Available USB 2.0 port
Free HDD Space: 5 GB | | Audio Interface | Audio Interface: 24-bit / 44.1 kHz
Master Output: 1/8" / 3.5 mm TRS
Headphone Output: 1/8" / 3.5 mm TRS | | Controls | Deck Controls
Decks: 2
Jog Wheel: 2 touch-sensitive
Backlit Base: Visual information controlled by Serato DJ Lite
Effects: RGB strobe effect backlighting
Pads: 4
Pad Modes: 4 (hot-cue, loop, FX, sampler)
Mixer Control
Crossfader: 1 x horizontal fader
Master Volume: 1 x knob
Headphones Volume: 1 x knob
EQ/Filter: 2 bass EQ/filters (1 knob per deck)
Volume: 2 knobs (1 deck volume knob per deck) | | Dimensions | 13.4 x 3.9" / 34.0 x 10.0 cm | | Weight | 1.2 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 16.0 x 5.7 x 2.6" | - DJMonitor 32 - 3" Active Multimedia Speakers (Pair)
| | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 60 W Peak
15 W RMS per Channel | | Drivers | LF Driver: 1 x 3" / 7.62 cm Woofer | | | | Frequency Response | 60 Hz to 20 kHz | | Phase Adjustment | None | | EQ | None | | Filters | None | | Parametric EQ | None | | | | I/O | 2 x RCA Unbalanced Female Analog Input | | | | Enclosure Material | MDF | | Cooling | Passive Cooling | | Dimensions (W x H x D) | 7.7 x 5.3 x 6.1" / 195.0 x 135.0 x 155.0 mm (Pair) | | Weight | 3.1 lb / 1.4 kg (Active Speaker)
2.9 lb / 1.3 kg (Passive Speaker) | | | | Box Dimensions (LxWxH) | 16.05 x 9.35 x 7.35" | - HDP DJ M 40.1 HEADPHONES
| Driver Size | 1.97" (50 mm) | | Frequency Response | 20 Hz to 20 kHz | | Impedance | 60 ohms | | Sensitivity | 95 dB @ 1mW | | Magnet | Diameter: 0.79" (20 mm) | | Connectors | 1/8" (3.5 mm) on Detachable Cable
1/4" (6.35 mm) on Screw-on Adapter | | Cable Length | 6.5' (2 mm) | | Weight | 11.3 oz (0.32 kg) | | | | Box Dimensions (LxWxH) | 10.2 x 8.4 x 3.8" |
