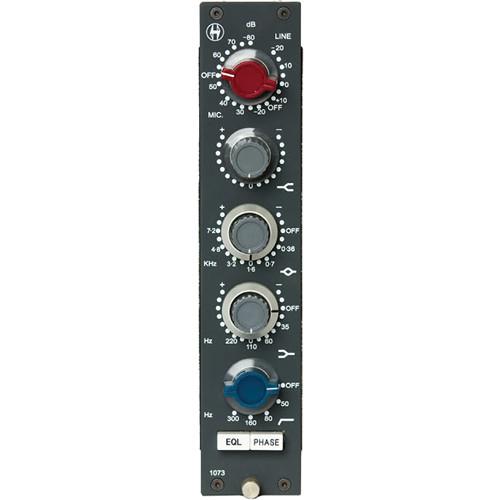

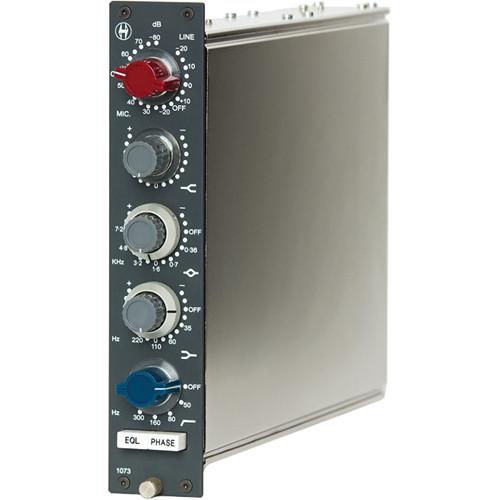

Product description The Heritage Audio 1073 Microphone Preamplifier Module is an 80 series compatible 80 dB microphone and 10 dB line recording reproduction module based on the vintage 1073 designed by Rupert Neve. The remake is intended for recording engineers who want the classic Neve sound. This module features the same Class A circuitry, the same specifications, and the same construction techniques used in the original 1073.
The unit supports selectable HI-LO minimum balanced and floating input impedances that accommodate a range of microphone types including vintage ribbons. It includes a ±16 dB selectable low frequency Baxandall shelving EQ at 35 Hz, 60 Hz, 110 Hz, and 220 Hz. For mid frequencies, the unit includes a dual inductor based ±18 dB peaking fixed 'Q' equalizer with center frequencies at 360 Hz, 700 Hz, 1600 Hz, 3200 Hz, 4800 Hz, and 7200 Hz. An 18 dB per octave slope inductor based high pass filter switch allows you to cut below 50 Hz, 80 Hz, 160 Hz, or 300 Hz depending on the application. An EQ button allows for the equalizer to be turned on or off and a phase button allows you to flip the signal 180°. UPC: 639713908183 In the Box Heritage Audio 1073 Microphone Preamplifier Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Heritage Audio 1073 Microphone Preamplifier Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHeritage Audio 1073 Specs | Input Impedance | Microphone
HI: 1200 Ω minimum
LO: 300 Ω minimum
Line: 10 kΩ bridging, transformer balanced and floating | | Output Impedance | Less than 75 Ω,
Transformer balanced and floating to drive a load of 600 Ω | | Maximum Output | Greater than +26 dBm into 600 Ω
Greater than +32 dBu into 10 kΩ | | THD | Less than 0.025% at 1,000 Hz
Less than 0.05% at 100 Hz | | Frequency Response | 20 Hz (+0.3 dB) to 20,000 Hz (-0.2 dB) | | Maximum Gain | Slightly greater than 80 dB | | Noise | Less than -100 dBm | | Power Consumption | 106 mA at 24 VDC | | Dimensions (W x D x H) | 1.77 x 12.2 x 8.74" (4.5 x 31 x 22.2 cm) | | Weight | 5.1 lb (2.3 kg) |
