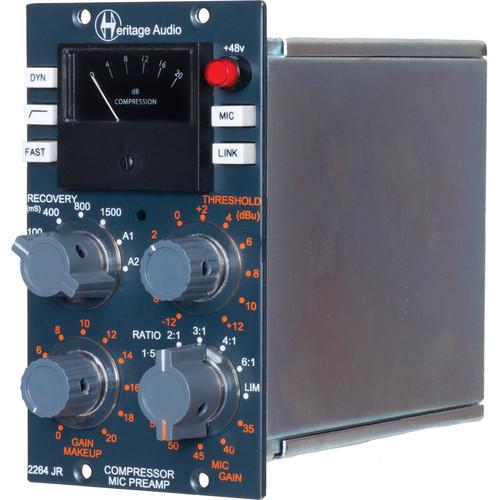

Product description Giving you both a 2264E-style compressor and 1073-style mic preamp in a 2-slot 500 series unit, the 2264JR 500 Series Compressor and Microphone Preamplifier from Heritage Audio has a fully discrete Class A signal path, and is transformer balanced. The compressor is based on key components and the schematics from the company's 2264E rackmount compressor, while the 1073-style preamp provides up to 60 dB of gain. All rotary controls on the unit are stepped for precise recall. It provides discrete inputs for mic and line level signals. Please note, the compressor and mic preamp modes cannot be used simultaneously. - Gain reduction meter: shows the compression amount up to 20 dB
- DYN switch: enables compression functions
- High pass switch: enables high pass filter on the sidechain circuit
- MIC switch: enables mic input and overrides compression / Line input functions
- Compress recovery switch: switches between 6 time constant options, 100, 400, 800, 1500 ms, Auto1 (100 ms on peaks, 2 seconds on program material) and Auto2 (50 ms on peaks, 5 seconds on program)
- Compress threshold stepped control: sets the minimum level at what compression happens, from +12 dBu down to -12 dBm in variable "smart" steps)
- Compress ratio switch: allows the user to choose between 5 different compression ratios, 1.5, 2, 3, 4 and 6:1, and a LIMIT option
- MIC gain stepped control: in 5 dB steps from 35 to 60 dB
- Gain makeup stepped control: In 2 dB steps from 0 to 20 dB
- LINK switch: allows the module to be linked to compression bus
UPC: 702877907153 In the Box Heritage Audio 2264JR 500 Series Compressor and Microphone Preamplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Heritage Audio 2264JR 500 Series Compressor and Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHeritage Audio HA2264JR Specs | Input Impedance | Microphone Input (Transformer Balanced and Floating): 1200 ohms
Line Input (Transformer Balanced and Floating) | | Output Impedance | <75 ohms, transformer balanced and floating, 600 ohms terminated | | Maximum Output | >+26 dBm , 600 ohms terminated | | THD | <0.025% at 1 kHz,
<0.05% at 100 Hz | | Frequency Response | 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB) | | Gain | Maximum Microphone Gain: 60 dB
Maximum Line Gain: 20 dB | | Power Consumption | Maximum Power Consumption: <110 mA @+-16VDC | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 10.0 x 7.9 x 6.3" |
