Product description

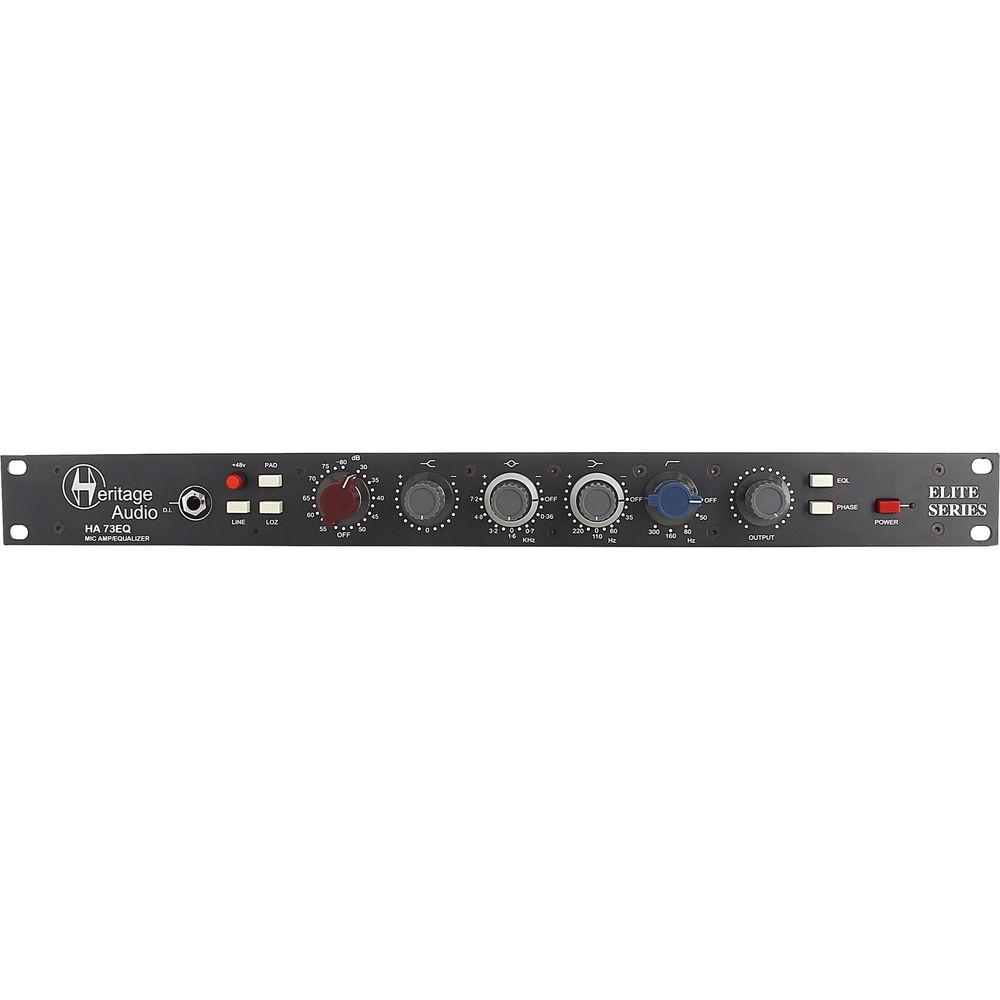

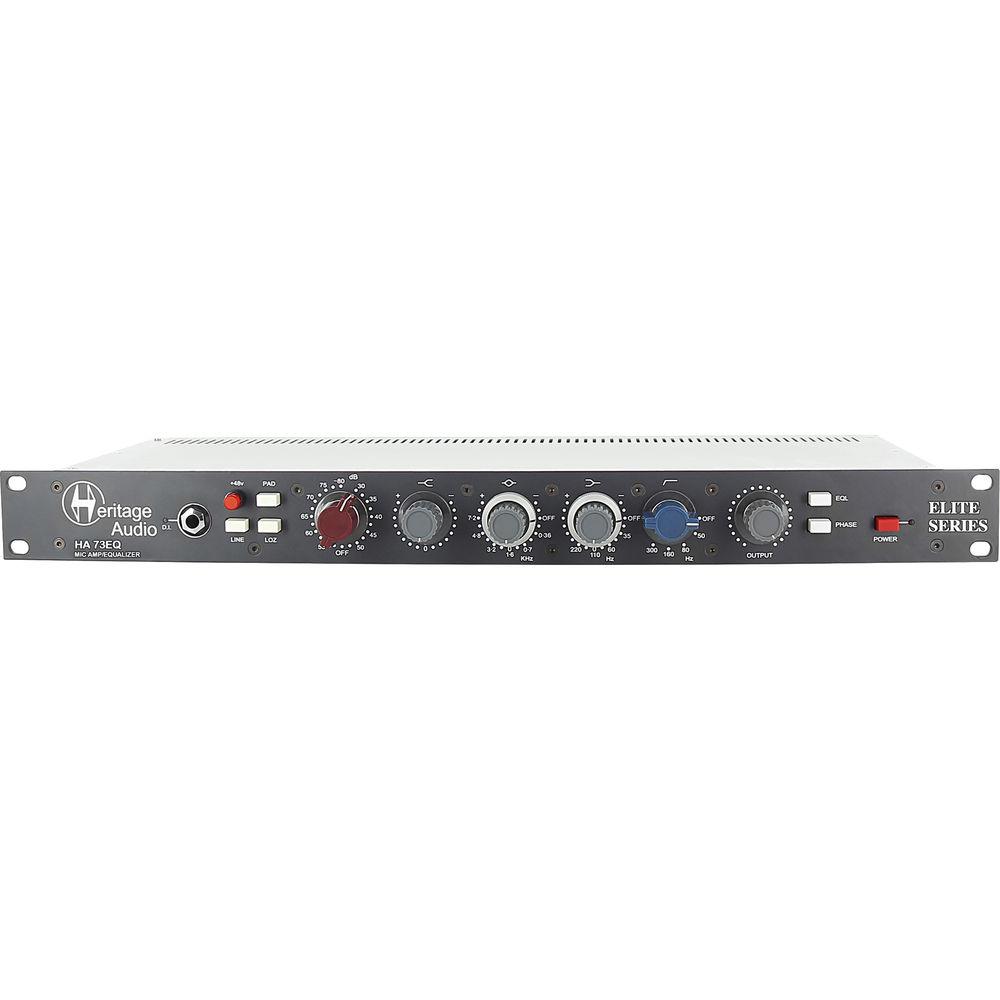

The Heritage Audio HA 73EQ is a 1 RU mono Elite Series microphone preamplifier with EQ designed to provide the sound of classic Neve 1073 preamps and equalizers for recording engineers, musicians, and vocalists in mobile-recording rigs and home, project, and commercial studios. It features 80 dB of gain via a three-stage discrete Class-A preamp, which utilizes stepped input gain and a -20 dB pad. Hand-wound Carnhill transformers impart color and character to the output.Connect a mic or line input via balanced XLR jacks or hook up a guitar, bass, or keyboard to the integrated Hi-Z, JFET-based DI via the front-panel 1/4" jack. Sculpt and sweeten your tone via the discrete 3-band EQ, which includes semi-parametric low and mid bands and a 12 kHz high-shelf band. Care has been taken to incorporate period-correct inductors and frequency options. Phantom power and input impedance are selectable, the output level is continuously variable, and a high-pass filter with four selectable frequencies allows you to remove unwanted low end.The HA 73EQ ships with an external universal power supply for worry-free use anywhere in the world.
  • Single-channel microphone preamplifier and 3-band EQ in a 1 RU enclosure
  • Three-stage discrete Class-A preamp with 80 dB of gain
  • Hand-wound Carnhill transformers
  • WIMA 5% capacitors and Vinkor-type pot core inductors
  • Stepped input gain for easy recall
  • Variable output level
  • Shelving high-band EQ at 12 kHz
  • Peaking mid-band EQ with six selectable frequencies—360 Hz, 700 Hz, 1.6 kHz, 3.2 kHz, 4.8 kHz, 7.2 kHz
  • Shelving low-band EQ with four selectable frequencies—35 Hz, 60 Hz, 110 Hz, 220 Hz
  • High-pass filter with four selectable frequencies—50 Hz, 80 Hz, 160 Hz, or 300 Hz
  • Switchable -20 dB pad, polarity, and selectable impedance of 300 Ohms or 1200 Ohms
  • Selectable phantom power, input source, and EQ on/off
  • Integrated Hi-Z DI with front-panel 1/4" TS input for direct connection of instruments
  • External universal power supply works regardless of region
UPC: 750536937133 In the Box Heritage Audio HA 73EQ Mono Elite Series Microphone Preamplifier with EQ
  • External Power Supply
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Heritage Audio HA 73EQ Mono Elite Series Microphone Preamplifier with EQ in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Heritage Audio HA-73EQ Specs

    Number of Channels 1

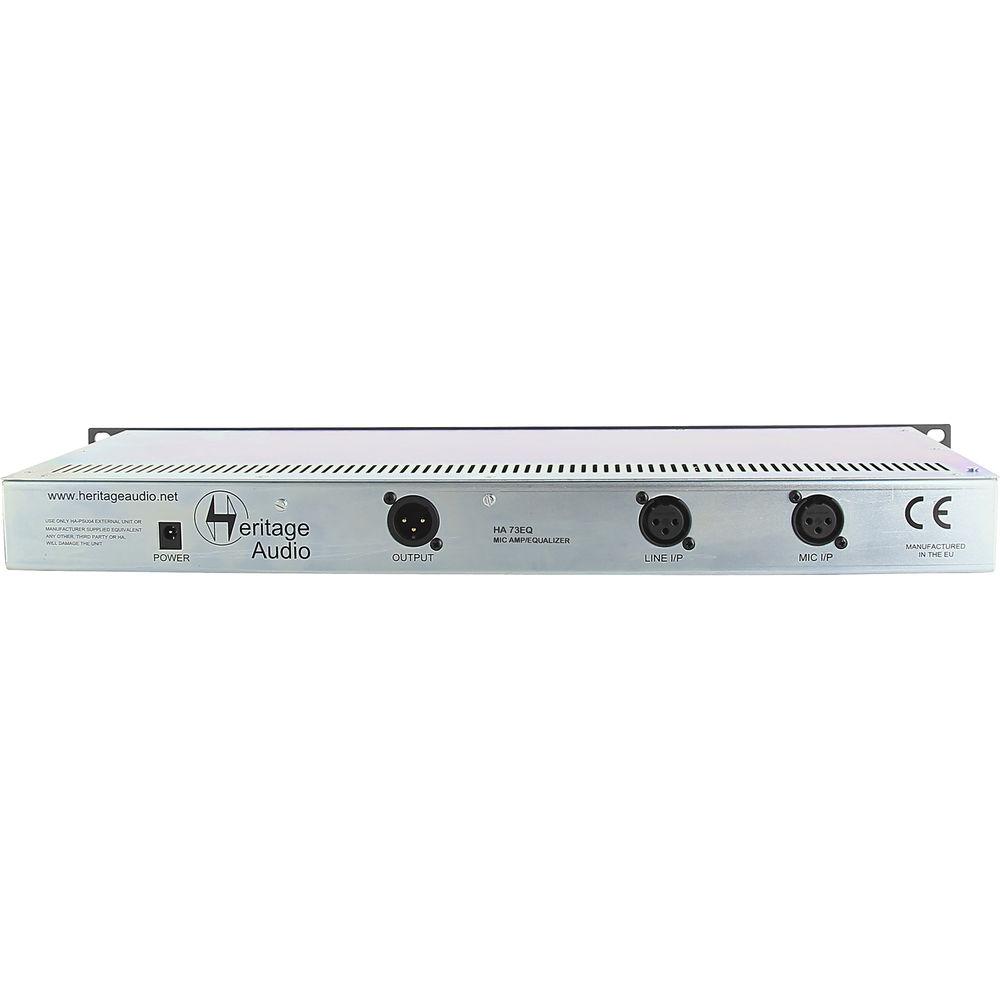

    Inputs 1 x XLR 3-pin female microphone input
    1 x XLR 3-pin female line input
    1 x 1/4" TS Hi-Z input
    Output 1 x XLR 3-pin male output
    Phantom Power Selectable
    Gain Range >80 dB
    Maximum Output Level > +26 dB into 600 Ohms (internally terminated)
    Frequency Response 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB)
    Input Impedance Microphone Hi: 1200 Ohms minimum
    Microphone Lo: 300 Ohms minimum
    Line: 10 kOhms bridging
    Output Impedance <75 Ohms to drive a load of 600 Ohms
    THD <0.025% at 1 kHz
    <0.05% at 100 Hz
    Equivalent Input Noise < -125 dBu
    Output Noise < -100 dBu
    Power Requirement HA-PSU04 external power supply
    Power Consumption <95 mA at 48 VDC
    Housing Material Steel and aluminum
    Dimensions (W x D x H) 17.1 x 7.2 x 1.2" / 43.5 x 18.3 x 3.0 cm
    Weight 7 lb / 3.2 kg
    Package Weight 8.65 lb
    Box Dimensions (LxWxH) 22.0 x 13.0 x 13.0"
