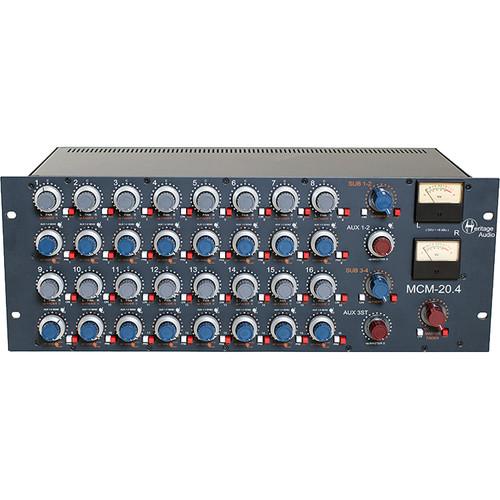

User Manual for Heritage Audio MCM-20.4 Analog 20-Channel Summing Mixer Click to enlarge the picture
Contents of the user manual for the Heritage Audio MCM-20.4 Analog 20-Channel Summing
- Product category: Analog Summing Heritage Audio
- Brand: Heritage Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Heritage Audio Analog Summing
 |
User manual for the Heritage Audio MCM-20.4 Analog 20-Channel Summing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Heritage Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Heritage Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Heritage Audio product will considerably shorten its lifespan!
|

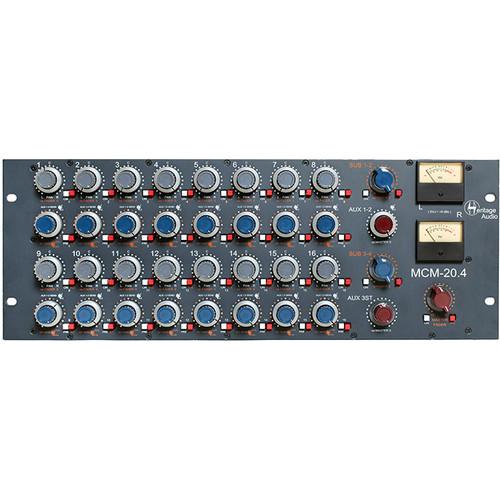

Product description The Heritage Audio MCM-20.4 is an analog 20-channel summing mixer designed to provide high-quality passive line level signal summing and coloration for mixing engineers in home, project, and commercial studios. It sums up to 16 channel inputs and four aux inputs sourced from DB25 connectors to a stereo master output where gain restoration is performed by a Class-A, 1073-style microphone preamp with four transformers.Each bank of eight inputs is fed to a stereo subgroup and then to the main stereo out. Insert sends and returns are present for each input channel and subgroup via DB25 connectors and for the stereo master bus via XLR jacks. Each channel offers level and pan controls, mute, one stereo and two mono aux sends, and insert return selection. The stereo master and each stereo subgroup offers level, mute, and insert functionality.Dedicated XLR 3-pin mix and monitor output jacks enable simultaneous connection to a mixdown recorder and monitoring system. Easily keep an eye on your stereo bus levels via stereo VU meters. - 16 channel inputs and four aux inputs via DB25 connectors
- Balanced inserts for all input channels, four subgroups (two stereo pairs), and stereo master bus
- DB25 channel and subgroup inserts
- Dedicated XLR 3-pin mix and monitor outputs
- Per-channel volume and pan knobs
- Per-channel mute and insert return switches
- Volume control, mute switch, and insert return selector for each stereo subgroup and stereo master
- Stereo VU meters calibrated for 0 VU = +8 dBu
UPC: 702877907221 In the Box Heritage Audio MCM-20.4 Analog 20-Channel Summing Mixer External Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Heritage Audio MCM-20.4 Analog 20-Channel Summing Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

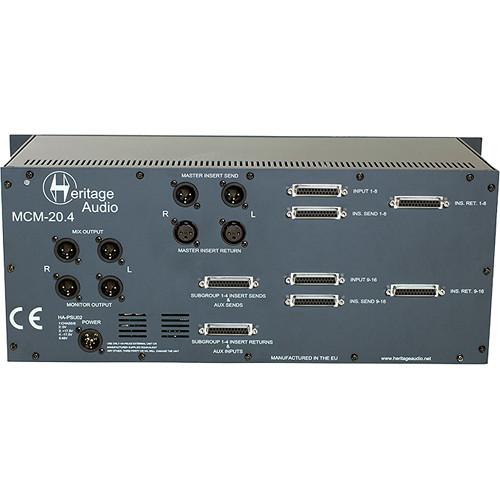

Technical parametersHeritage Audio MCM-20 Specs | Type | Analog | | Inputs | 2 x DB25 analog 8-channel inputs | | Outputs | 2 x XLR 3-pin male (mix outputs, stereo pair)
2 x XLR 3-pin male (monitor output, stereo pair) | | Inserts | 2 x DB25 analog 8-channel insert sends
2 x DB25 analog 8-channel insert returns
1 x DB25 analog subgroup insert sends and aux sends
1 x DB25 analog subgroup insert returns and aux inputs
2 x XLR 3-pin male insert sends (master, stereo pair)
2 x XLR 3-pin female insert returns (master, stereo pair) | | On-Board Processors | None | | Gain Control | Per-channel knobs
Master fader knob | | Gain Range | Unity gain to minus infinity | | Impedance | Channel Input: > 20 kOhms | | Maximum Input Level | Channel Input: > +26 dBu
Insert Return: > +26 dBu | | Maximum Output Level | Main Output: > +26 dBu into 600 Ohms
Insert Send: > +27 dBu, able to drive 600 Ohms | | Frequency Response | 20 Hz to 20 kHz (
