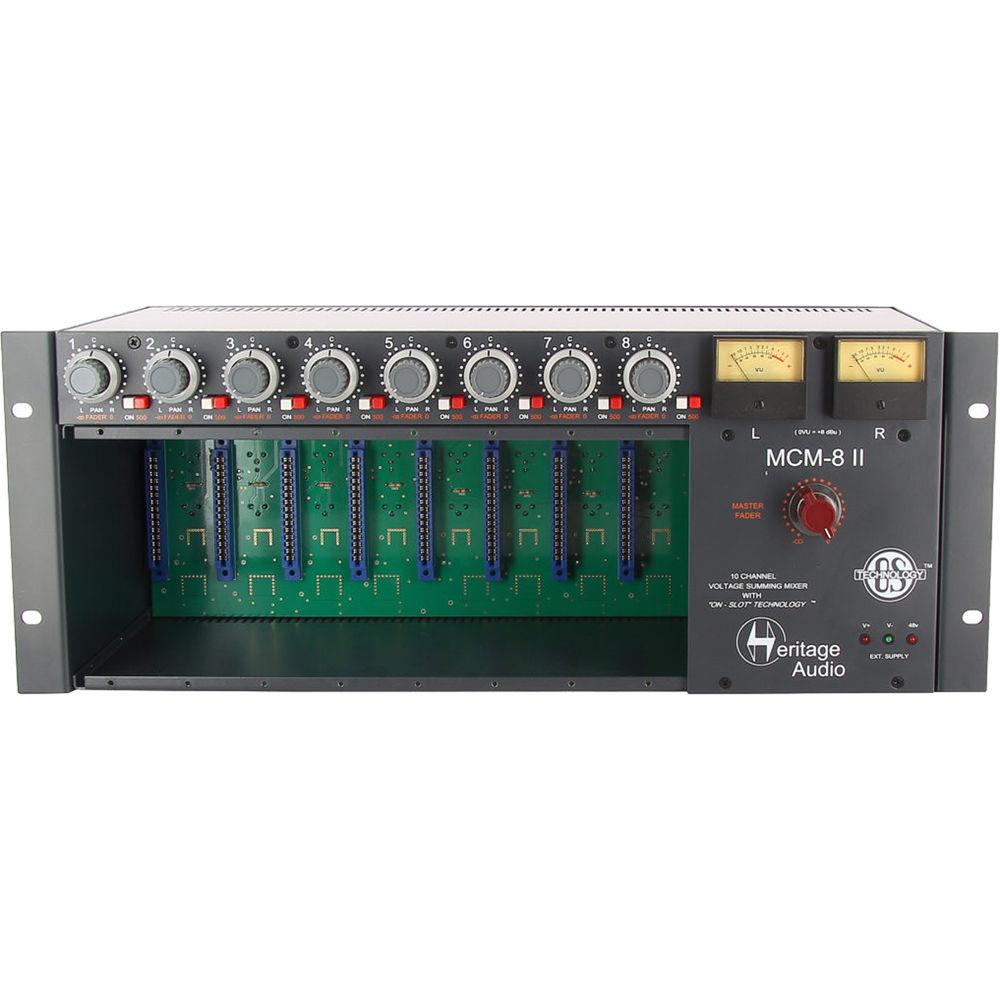

Product description 500 Series: Guide to Effects Read More uxwyvtevtacxetwxuubbxcvxeyfe An upgrade over a previous version, the Heritage Audio MCM8 II Mixer is an enclosure for up to 8 lunchbox-style 500 Series modules, both from Heritage or other manufacturers. What makes the enclosure special is the company's On Slot Technology, which leverages the latest generation of power electronics to provide a supply of power on a per-slot basis. Each slot has its own power supply linear regulation stages, which makes each module isolated from the rest. This helps address some of the issues encountered when modules of different kinds share one common power supply. Instead, they simply share the same heavy gauge steel enclosure.
What makes this version different from its predecessor is a significantly lower noise floor in the summing stage. This has been engineered to ensure a hiss-free mix, especially when the program material is quiet in nature. This mixer follows a passive voltage summing topology, having the gain loss restored by a classic '73-type Class-A output stage.You'll also note the new bypass button, which allows you to bypass each individual 500 Series module at the press of a finger.
On the side of each connector, each slot features test LEDs for checking the correct power operation (red for +16V; green for -16V). The power capability of the unit is 400mA per rail, per slot maximum, with an overall 1.4A (1.6A noncontinuous) per rail, whichever is reached first. The total available phantom power is 140mA. The heavy gauge steel enclosure has an aluminum front panel.

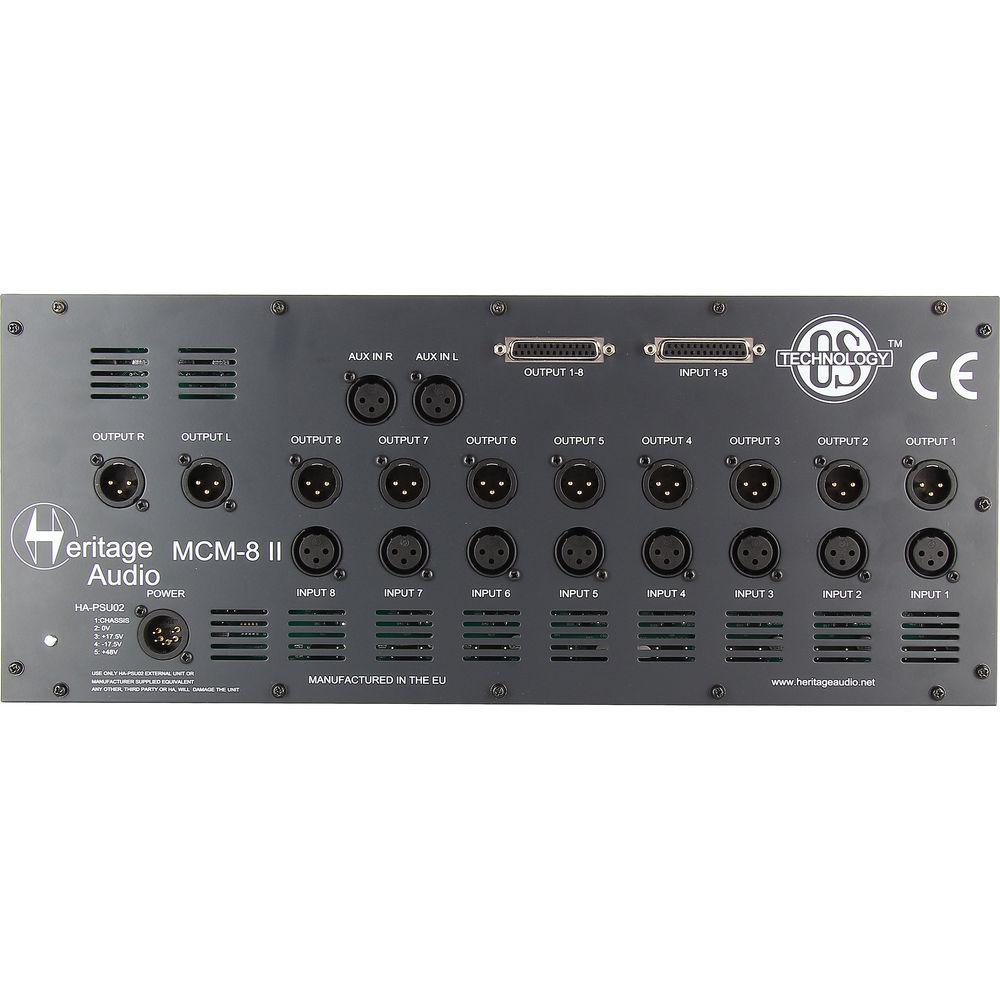

There are pan and fader controls per slot on dual concentric potentiometers. Pan pots have a center detent for precise center positioning. Each channel features an On switch to assign the channel to the mix bus. Connections are made by means of both gold plated XLRs and DSUB25 input and outputs, with standard Tascam protocol. A stereo XLR input section on the back of the unit allows several MCM8 II units to be daisy-chained. You'll also note stereo XLR outputs. UPC: 750536937140 In the Box Heritage Audio MCM8 II 8-Slot 500 Series Enclosure with 10-Channel Summing Mixer 5-Pin XLR Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Heritage Audio MCM8 II 8-Slot 500 Series Enclosure with 10-Channel Summing Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHeritage Audio MCM8 II Specs | I/O | 8 x 500 Series Inputs on XLR and D-Sub
8 x 500 Series Outputs on XLR and D-Sub
2 x XLR Aux Inputs (Stereo Left and Right) for Summing Bus
2 x XLR Outputs for Mix Bus | | Useable Spaces | 8 | | Input Impedance | Per Channel: 20 kOhms | | Maximum Input Level | >27 dBu | | Maximum Output Level | >26 dBu into 600 Ohms | | Frequency Response | 20 Hz to 20 kHz (±0.5) | | THD + N | Not More than 0.07% from 50 Hz to 10 kHz at +20 dBu Output (80 kHz Bandwidth) into 600 Ohms | | Self Noise | -90 dBu | | Phantom Power | Total Available: 140 mA | | Power | 400 mA per Rail per Slot, 1.6 per Rail (Whichever is Reached First) | | Operating Voltage | 100 to 240 VAC | | Dimensions | 20.9 x 11.8 x 10.8" / 53 x 30 x 27.5 cm | | Weight | 6.6 lb / 3.0 kg |
